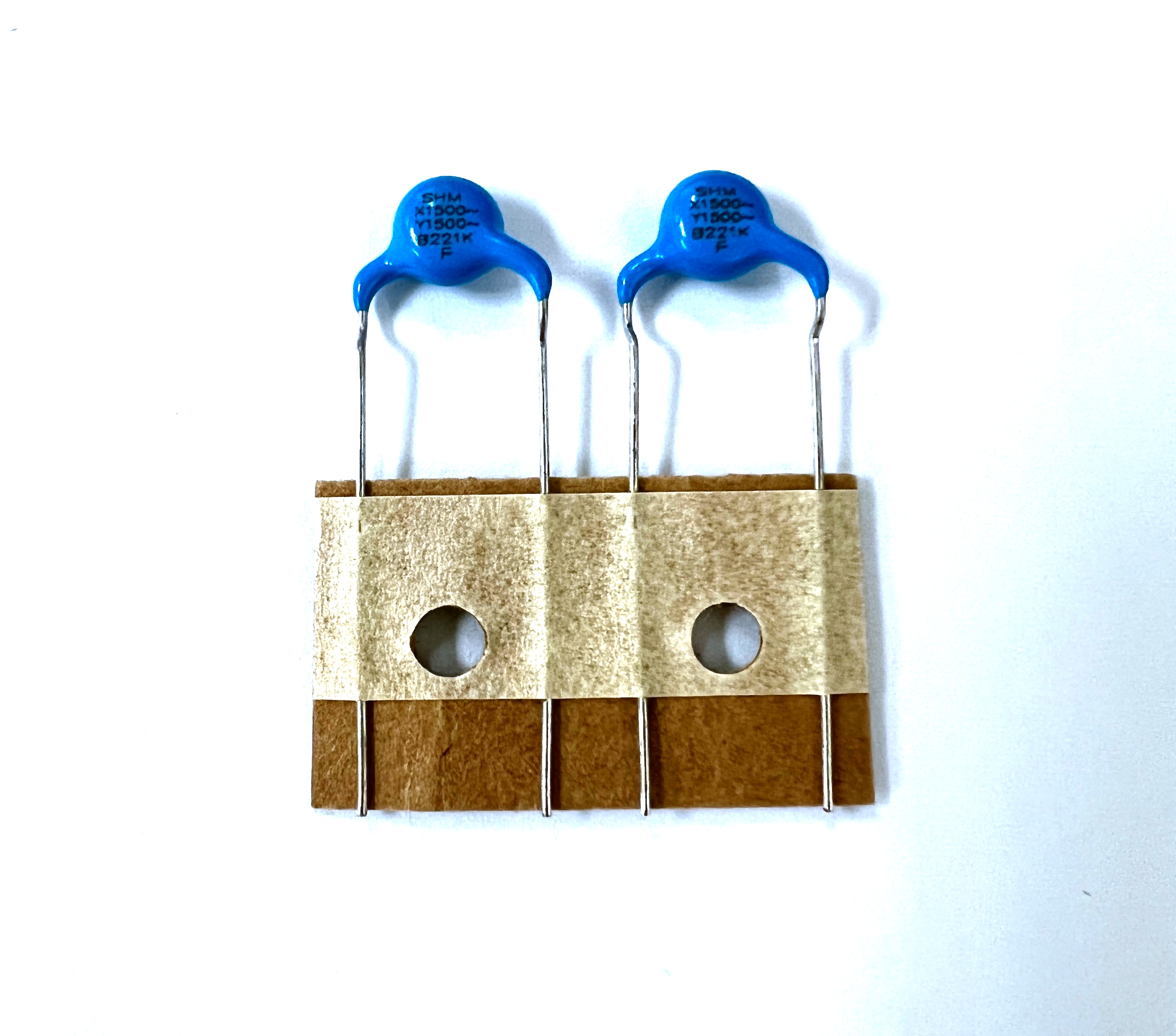

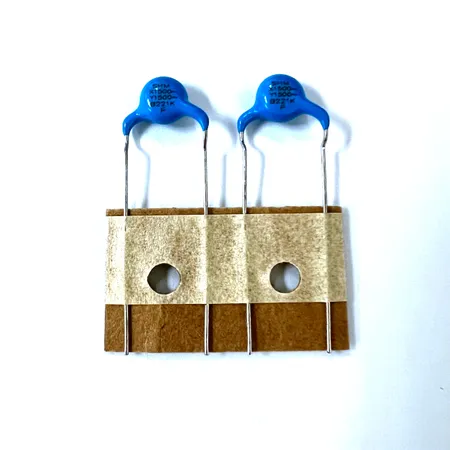

Ceramic Disc Capacitor 221K X1Y1
US $0.10 - US $1.00
Production Lead Time:
7 day(s)
Shipping Method:
EXW
Model No.:
180pF +-5%
Brand:
SHM
Colour:
Blue
Port:
Hong Kong
Minimum Order Quantity:
1,000
Package:
Yes
Customised:
Yes
Rated Voltage:
1 ~ 15KV
Description
Contact Supplier
Description
- Operating temperature: -85~125℃ (-25~125℃)
- Capacitance and dissipation factor/quality factor testing condition : 25℃, 1Vrms, 1MHz (Class I) 1KHz (Class II)
- Dissipation factor / quality factor (Q) : Y5P Y5U Y5V ≦2.0% Y5P (Low dissipation type) ≦0.5%,
- SL: CR<30pF, Q≧400+20CR; CR≧30pF, Q≧1000
- Rated Voltage: 1 ~ 15KV
- Voltage proof: 2UR ; 1.5UR
- Insulation resistance (IR) : IR ≧ 10000Mohm (500VDC)
- Temperature Characteristic: Y5P, Y5U, Y5V, YR, CO, SL
