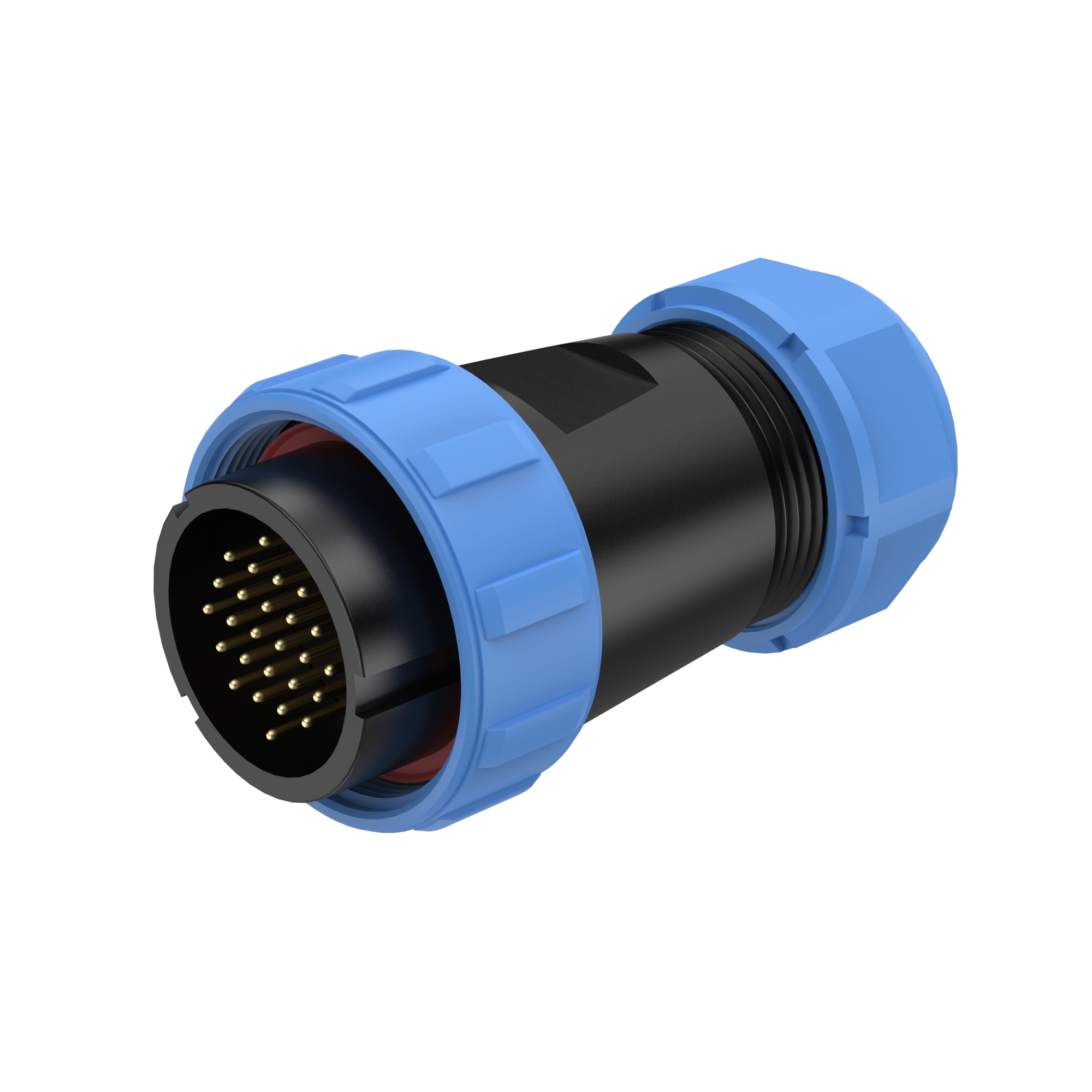

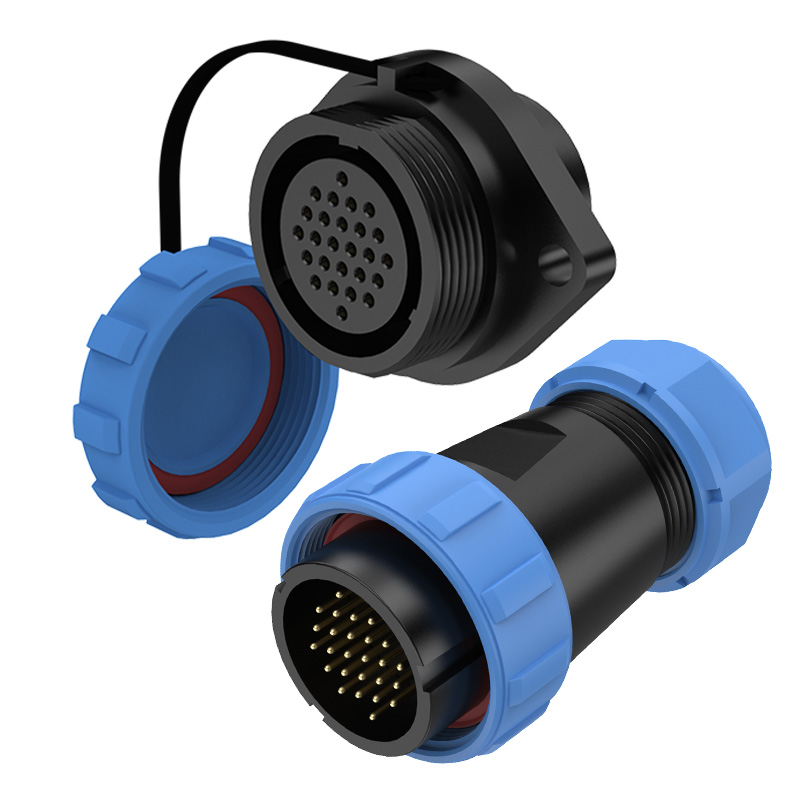

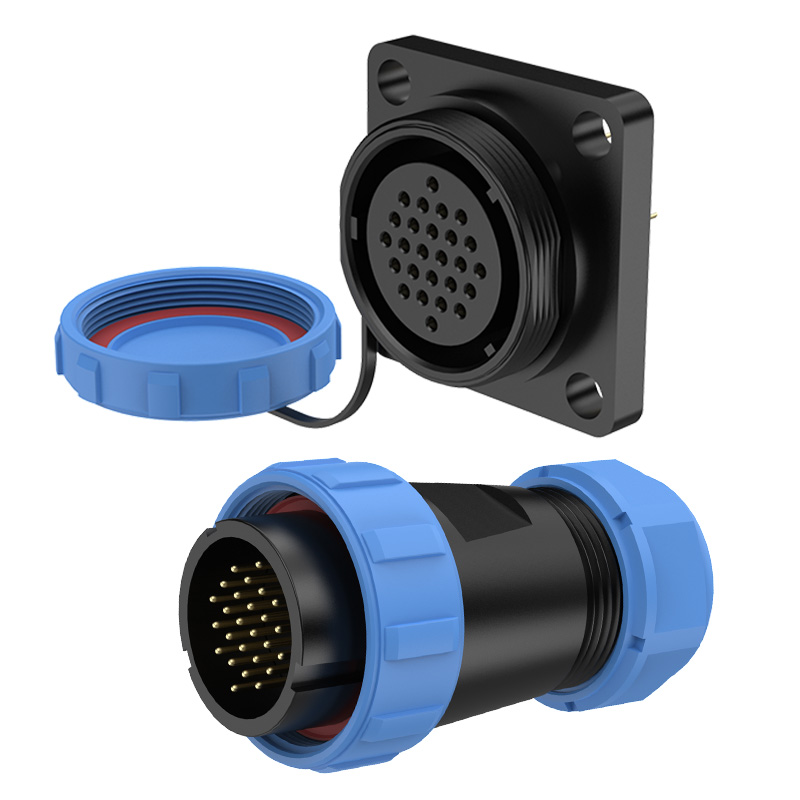

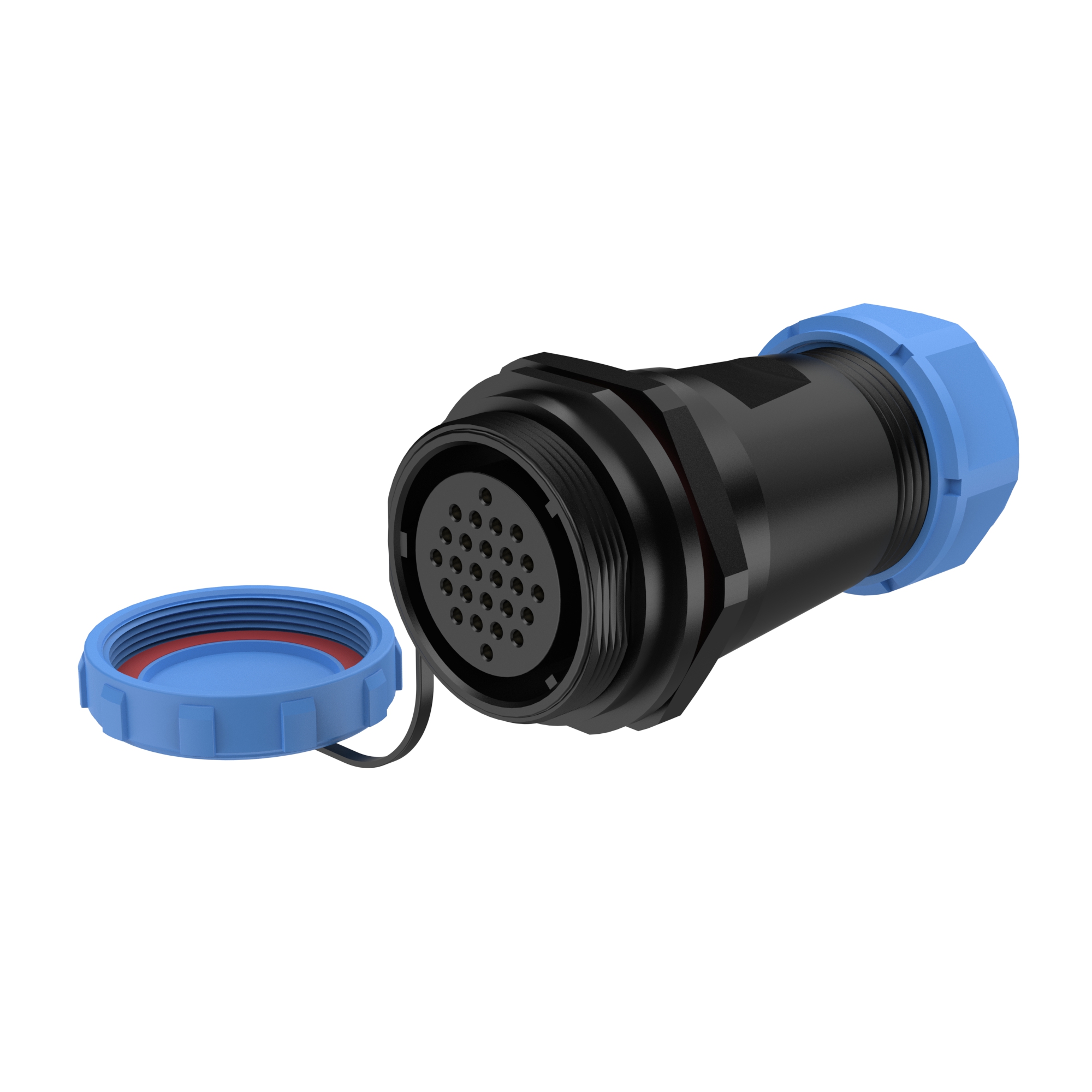

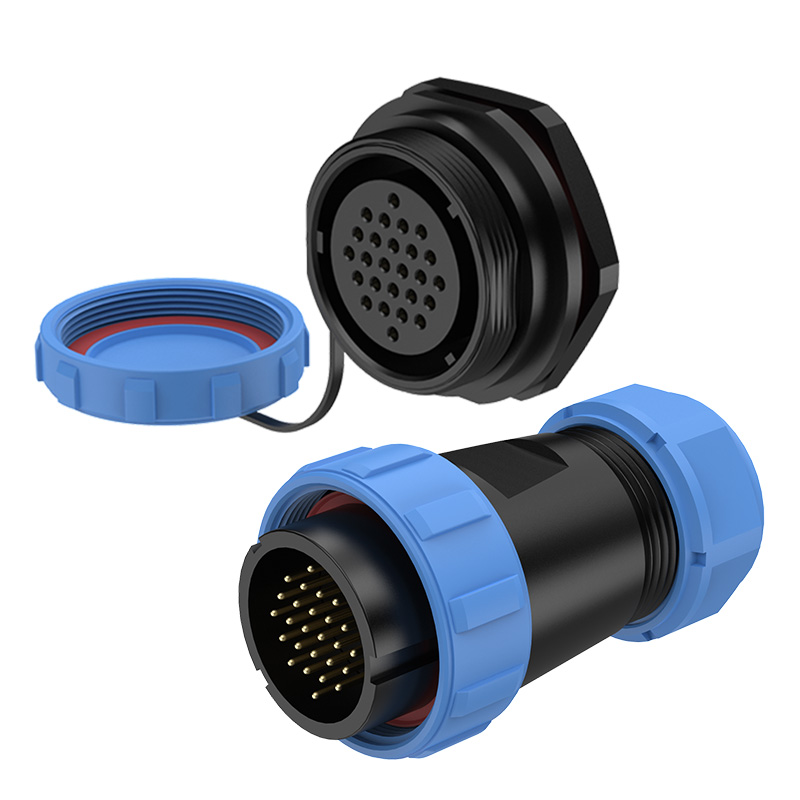

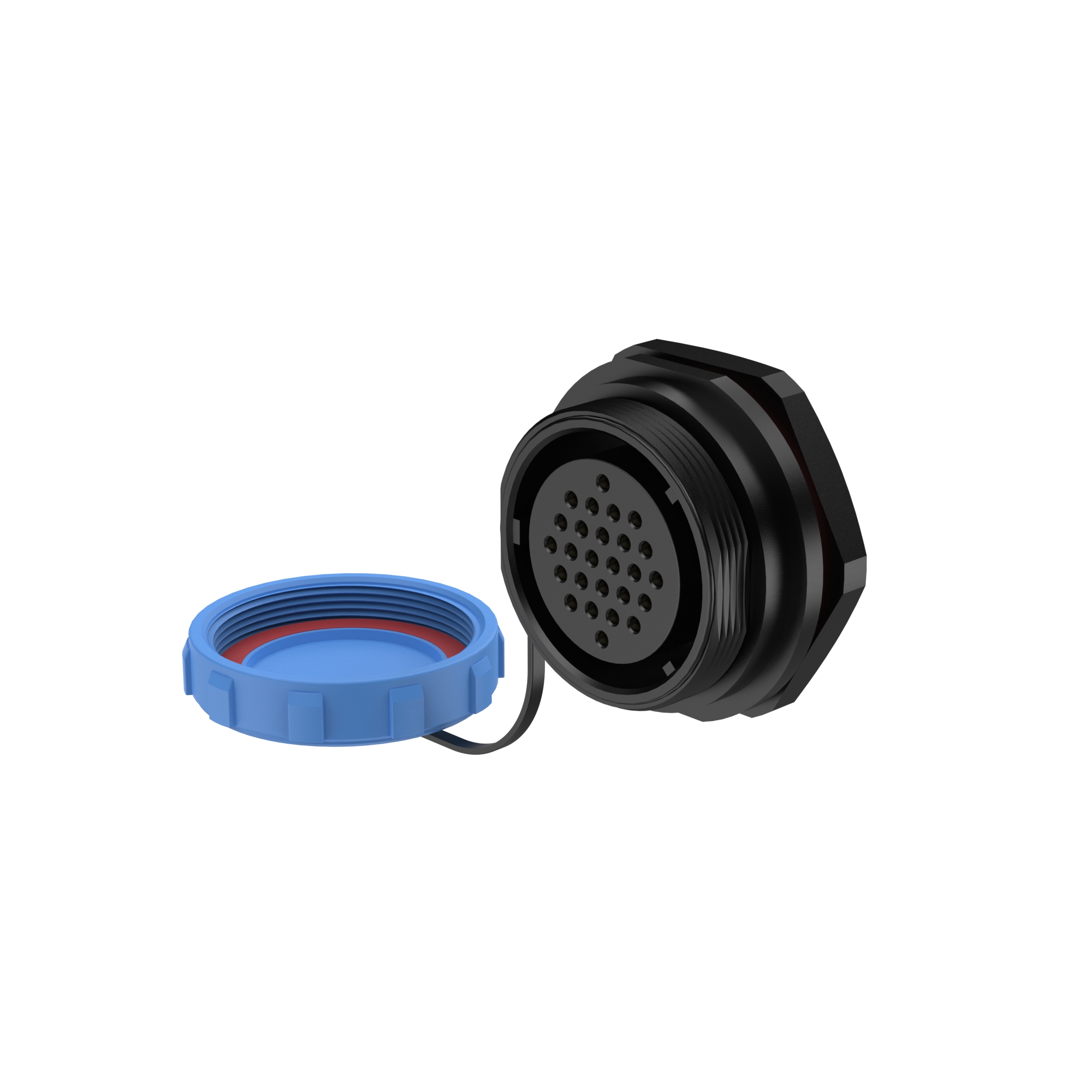

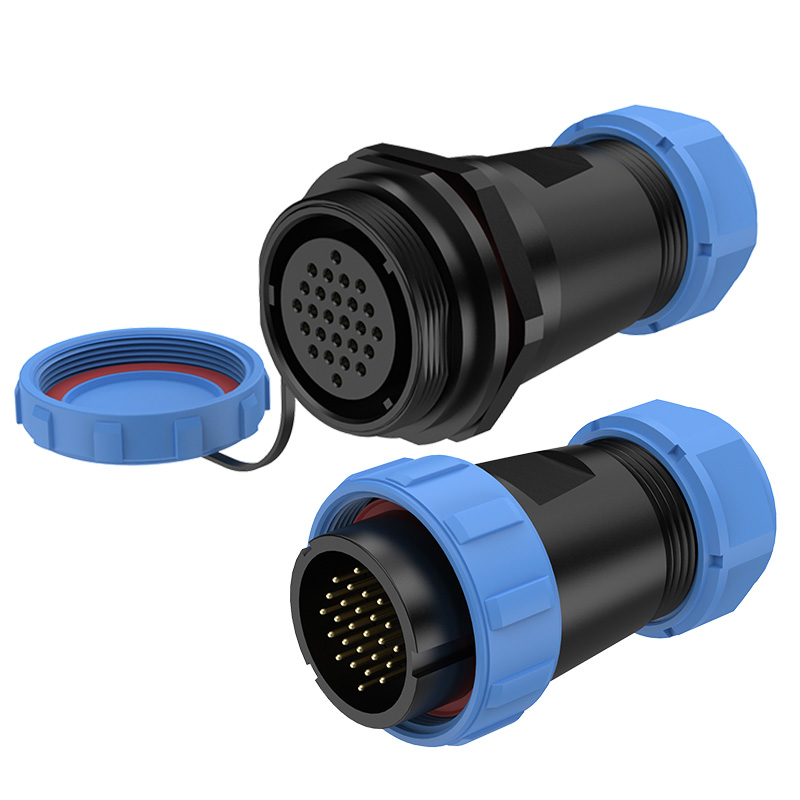

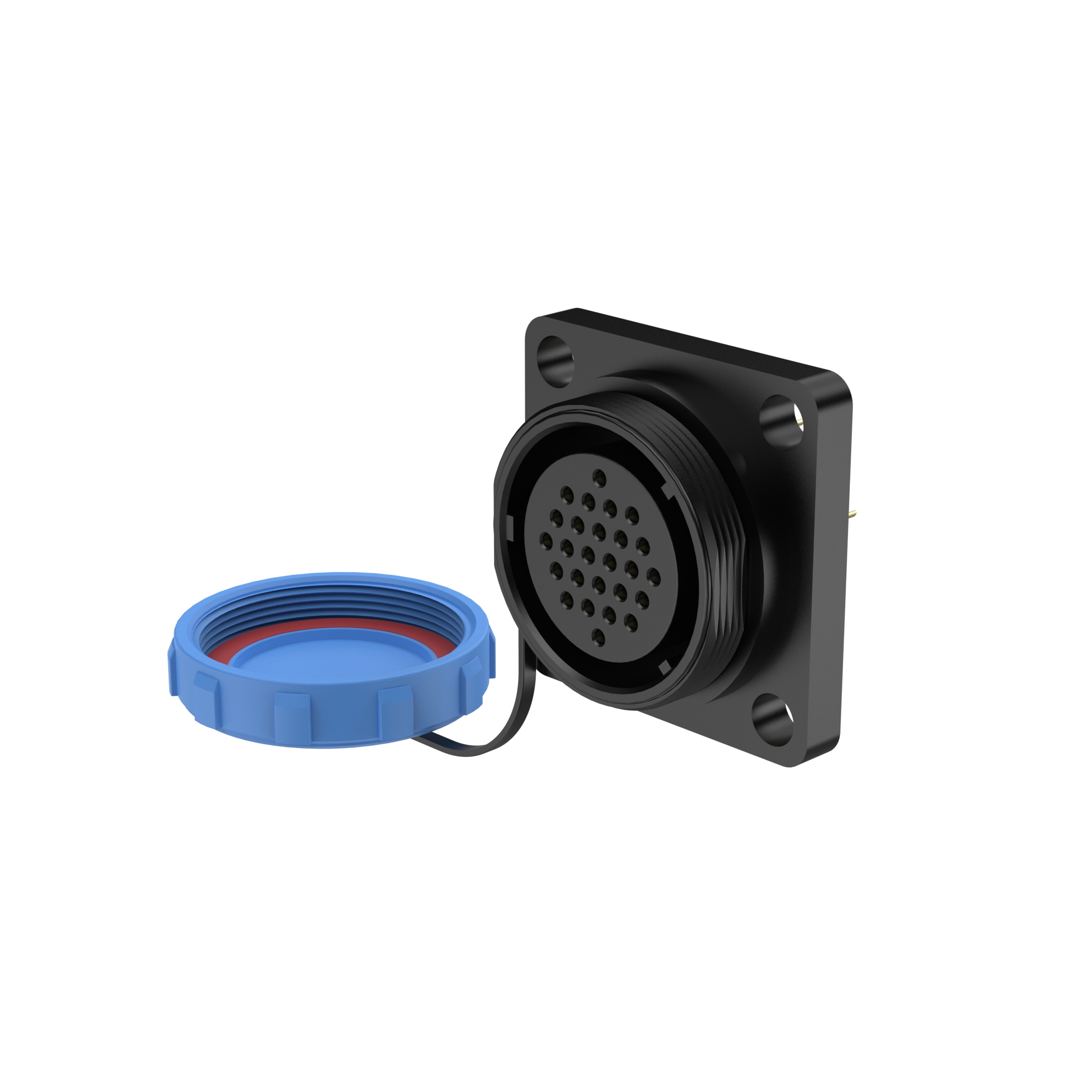

SP Series are IP68 connectors with threaded coupling and high temperature resistance feature, helping customers transmit power, data and signal in the harshest environments.

Wiring Mode: Solder Type

Installation Mode: Cable/Panel/Flange Mount

Pins: 2,3,4,7,8,9,10,12,16,17,20,24,26 pins

Material: Plastic

Rated Current: 50A,25A,10A,5A

Working Voltage: 500V,400V

Wire Specification: ≤10mm²/7AWG,≤4mm²/11AWG, ≤2 mm²/14AWG, ≤0.75 mm²/18AWG

Contact Resistance: 0.5mΩ,1mΩ,2.5mΩ,5mΩ

Protection Level: IP68
