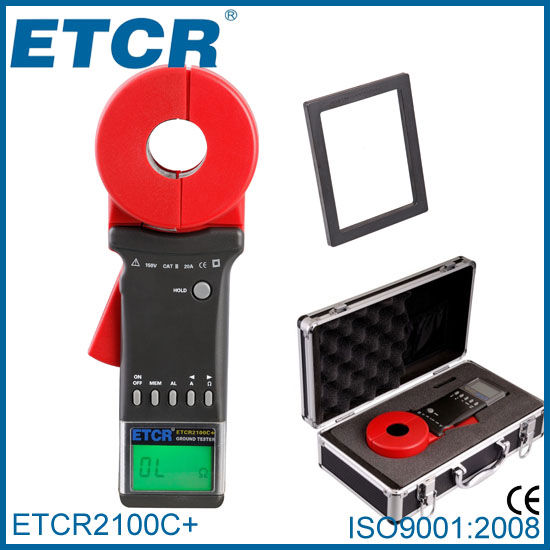

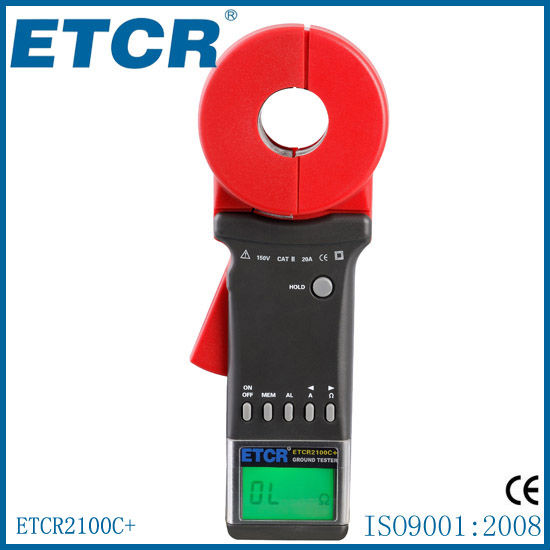

Clamp-on Digital Ground Resistance Tester
Model No.:
ETCR2100C+
Brand:
ETCR
Colour:
Red, Black
Size:
260 x 90 x 66mm
Port:
Guangzhou
Minimum Order Quantity:
6 pc(s)
Description
Contact Supplier
Description
- The ETCR2100C+ model is designed for the evaluation of resistance measurement on earth probes with ground loop method without the disconnection of parts of plants under test.
- This type of measurement carried out by the instrument can be used for evaluation of single rods’ resistances within an earth installation assuming they do not affect each other.
- The inner part of the instrument is made of 2 toroids one for current and one for voltage.
- The voltage toroid generates a potential (E) on the loop during resistance measurement.
- A current (I) is consequently generated on the loop and is measured by the current jaws.
- Based on the value of parameters E and I the instrument displays the resistance value R calculated as their ratio.
- The ETCR2100C+ clamp also performs AC current up to 20A and leakage current with 0.1mA resolution and the setting of alarm thresholds on measurements is possible.
- The instrument is compliance with IEC/EN61010-1, CAT III 150V and is ideal for simple measurements both in domestic and industrial environments.
- CE mark.
- EN 61010-1.
- LVD directive 2006/95/EEC.
- EMC directive 2004/108/EEC.
- Resistance measurement on earth probes with ground loop method.
- Direct measurement on earth probes without any cable breaking.
- Measurement of leakage current on earth installations.
- Setting of alarm thresholds on measurements with buzzer.
- Storage of measurement results.
- Detection of current noise on measurement.
- Data hold function.
- Backlight.
- Auto power off.

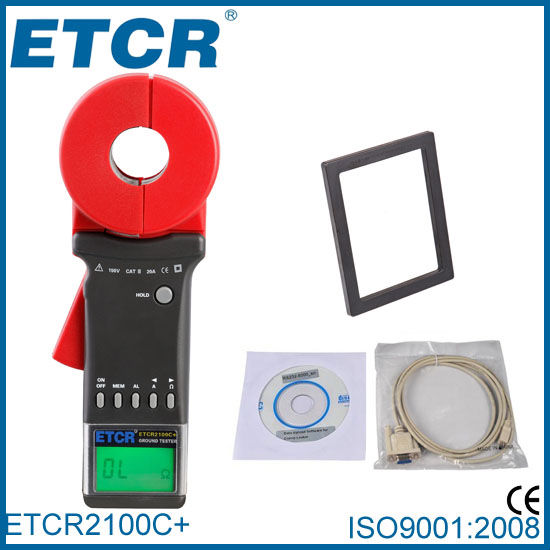

- Resistive test loop.

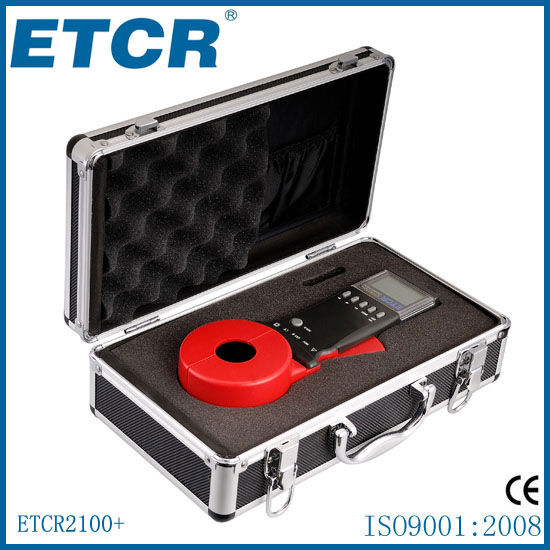

- Rigid carrying case.
- Batteries.
- User manual.
- Data upload: RS232.
- 0.01-1200Ω; 0.0mA-20A.
- Resolution: 0.001Ω; 0.05mA.
- Sortable measurement data: 99 groups.
- Working temperature: -20-+55.
- Frequency: 50/60Hz automatism.
- Jaw: 32mm.
- OEM is welcome.
