Class-D 4CH Car Amplifier
Production Lead Time:
45 day(s)
Size:
(L x W x H) 293 x 175 x 49mm
Type of Payment:
T/T
Minimum Order Quantity:
500 piece(s)
Description
Contact Supplier
Description

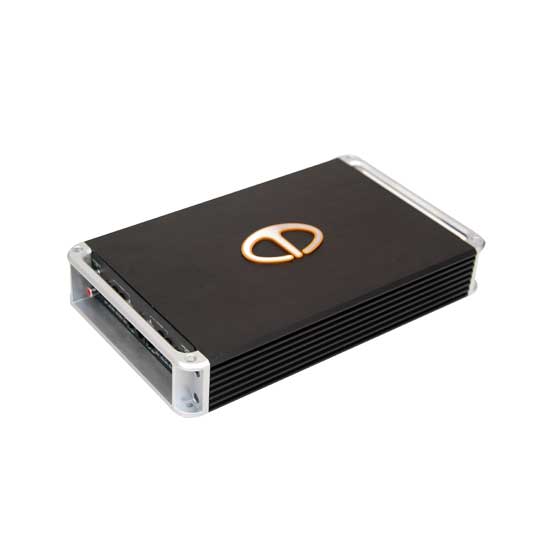

This is a class-D 4CH car amplifier featuring a compact and rugged body. It features a 90dB SNR and a frequency response range of 20-20kHz. This exceptional car amplifier is a must-have for a music lover’s vehicle.
- Load 4 Ω: 4 x 100W.
- Load 2 Ω: 4 x 198W.
- Load 1 Ω: 2 x 360W.
- Input sensitivity: 0.21-2.4V.
- Signal to noise ratio: 90dB.
- Frequency response: 20-20kHz.
- High pass filter (12dB OCT): 20Hz-1kHz, 200Hz-10kHz.
- Low pass filter (12dB OCT): 50Hz-1kHz, 500Hz-10kHz.
- Total harmonic distortion: 0.08%.
- Damping factor: >120.
- Power supply scope (DC): 10-15V.
- Delay start time (sec.): 1-2.
- Short protect: 1Ω.
- Fuse: 25A x 3.
