Classic IP54 Panel Light Series
US $15.00 - US $40.00
Production Lead Time:
30 day(s)
Shipping Method:
by sea
Model No.:
DWIP606036E
Input Voltage:
AC220-240V
Power:
36W
LED Source:
SMD2835
Color Temp:
3000K,4000K,5700K
CRI:
Ra>80
Power Factor:
>0.9
IP Rate:
IP54 panel frnot is IP65,backside and driver is IP40
Optional:
0-10V dimming, Dali dimming, or Traic dimming
MOQ:
300PCS
Certificate:
CE, RoHS, CB,SAA
Warranty Time:
5 Years
Payment Terms:
T/T
Supply Ability:
7000pcs per month
Description
Contact Supplier
Description

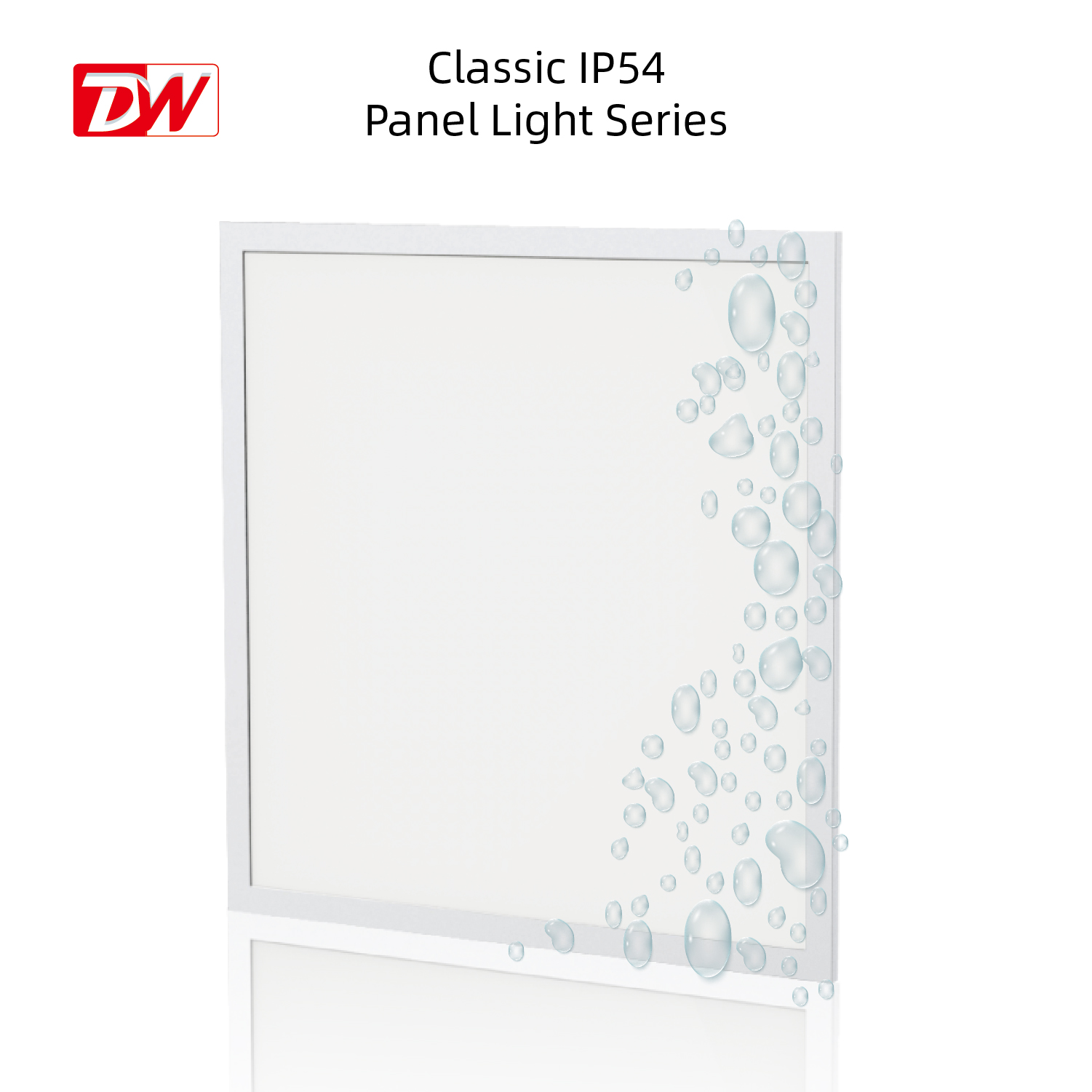

Classic IP54 Panel Light Series
Dolight Classic IP65 Panel with whole IP65 for whole fixture and driver is a good illumination solution for parmaceutical factory, hospital operating room. It emits soft and even light and is comfortable for humans’ eyes. IP54 is optional for different requirement. The long service life round off the performance of the luminaire.
◈ FEATURES
IP54 version: panel front is IP65,panel backside and driver is IP40;"
PS diffuser, glow wire test 650°C;
PC diffuser, glow wire test 850°C;
Competitive price;
Uniform light distribution;
UGR<19 optional;
◈ ADVANTAGE
TUV Listed CE, CB, and RoHS, SAA,ISO9001;
IP54 version is optional, front surface is IP65, backsize and driver is IP40;
IP65 test report, IK07 test report, clean room test report are available;
◈ SPECIFICATION
IP65 LED Panel Light | ||
Photometric Parameters | ||
NO. | Project | Parameter |
1 | LED | High luminous flux SMD LED Samsung/Osram |
2 | Luminous Efficiency | 100 Lm/W |
3 | CCT | 3000K-6500K (warm white, natural white, cool white) |
4 | CRI | ≥80 |
5 | Beam Angle | 120° |
6 | LED Lifespan | ≥50000 Hours |
Electrical Parameters | ||
7 | Driver Input Voltage | AC220-240V /50-60Hz |
8 | OutputVoltage | DC30-40V |
9 | Power Supply Efficiency | ≥88% |
10 | Power Factor | ≥0.95 |
11 | Protection Class | Class II |
General Parameters | ||
12 | Rating IP | IP54 |
13 | Material | Aluminum + PMMA |
14 | Frame Finishing | White |
15 | Installation | Recessed/Pendant |
16 | Working Temperature | -20～+45℃ |
17 | Storing Temperature | -40～+60℃ |
18 | Working Humidity | 15%~90%RH |
◈ SIZE
Efficiency | Model No. | Wattage | Luminous flux | CRI | LED | Dimension |
100lm/W | DWIP606036E | 36W | 3600lm | 80Ra | SMD2835 | 595x595x10mm |
DWIP626236E | 36W | 3600lm | 80Ra | SMD2835 | 620x620x10mm | |
DWIP3012036E | 36W | 3600lm | 80Ra | SMD2835 | 295x1195x10mm | |
DWIP606048E | 48W | 4500lm | 80Ra | SMD2835 | 595x595x10mm | |
DWIP626248E | 48W | 4500lm | 80Ra | SMD2835 | 620x620x10mm | |
DWIP3012048E | 48W | 4500lm | 80Ra | SMD2835 | 295x1195x10mm |
◈ APPLICATION

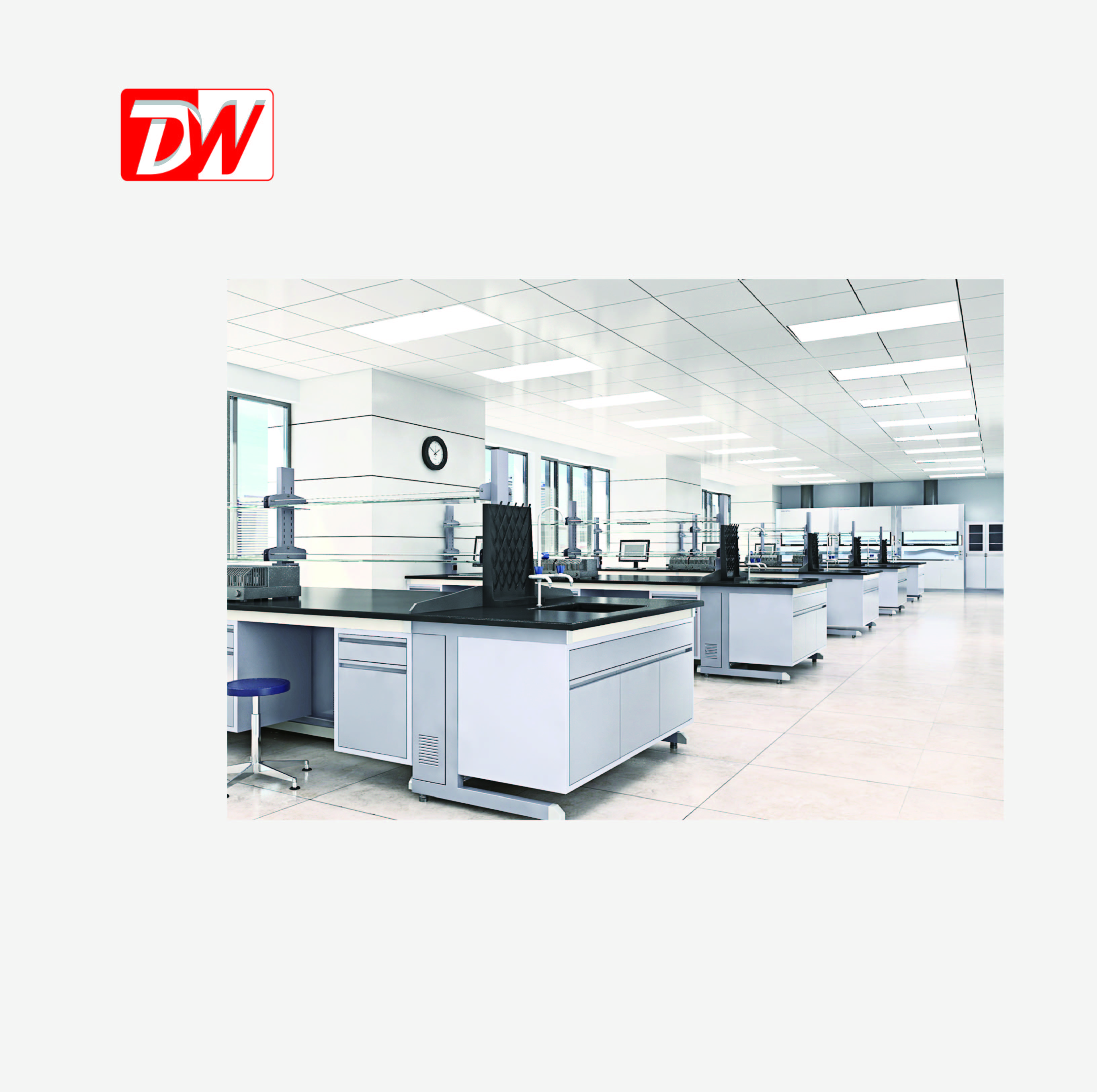

♦ Lab
♦ Hospital
♦ Pharmacy workshop
♦ Computer Lab
