Clear LED panel Series
US $20.00 - US $80.00
Production Lead Time:
30 day(s)
Shipping Method:
BY SEA
Model No.:
DWCl3012036
Input Voltage:
AC200-240V, 50/60HZ
Power:
36W
LED Source:
SMD2835
Color Temp:
3000K/4000K/5700K
CRI:
Ra>80
Optional:
0-10V dimming, Dali dimming
MOQ:
300
Certificate:
CE,RoHS,CB,SAA
Warranty Time:
5 Years
Payment Terms:
T/T
Supply Ability:
7000pcs per month
Description
Contact Supplier
Description
Clear LED panel Series
Thanks for choosing Dolight’s Clear LED panel series.With transparent cover, our Clear LED panel has an elegant appearance to make a space refifined and smart,perfectly adapted to fashion or design needs. When light is on, it looks like a calm bright fairy.Even when light is off, it is a piece of perfect crystal decoration. 30% up lighting to offer people great sense of security. 70% uniform light distribution satisfifies people’s need in lighting.
◈ FEATURES
• Elegant transparent design,

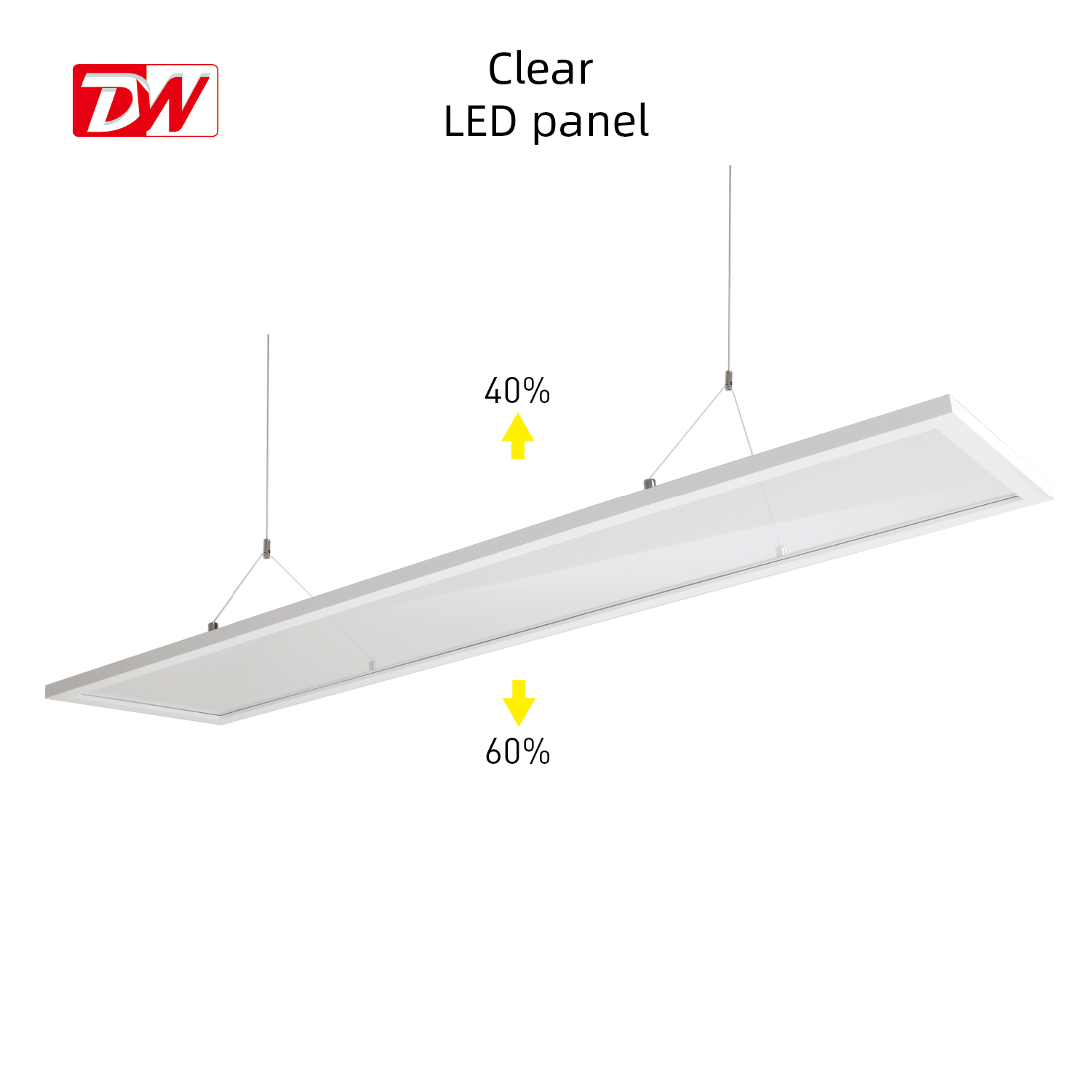

• Up/Down lighting, up 40%, down 60%,
• High efficiency up to 100lm/W, 120lm/W,
• Uniform and soft lighting,
• UGR<19, eyes friendly version optional,
• Strong aluminium body,

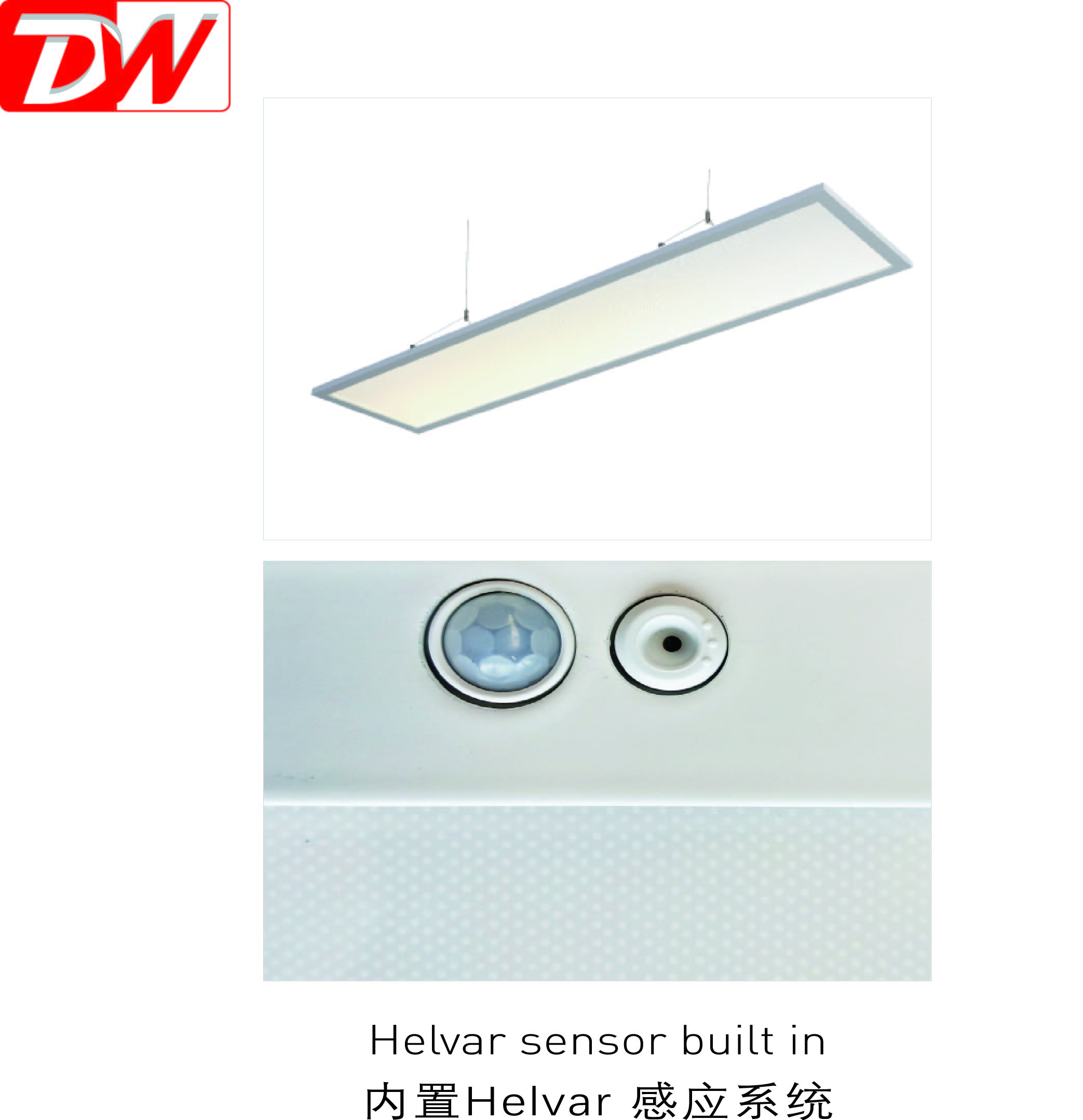

• Helvar sensor built in;
INSTALLATION TYPE

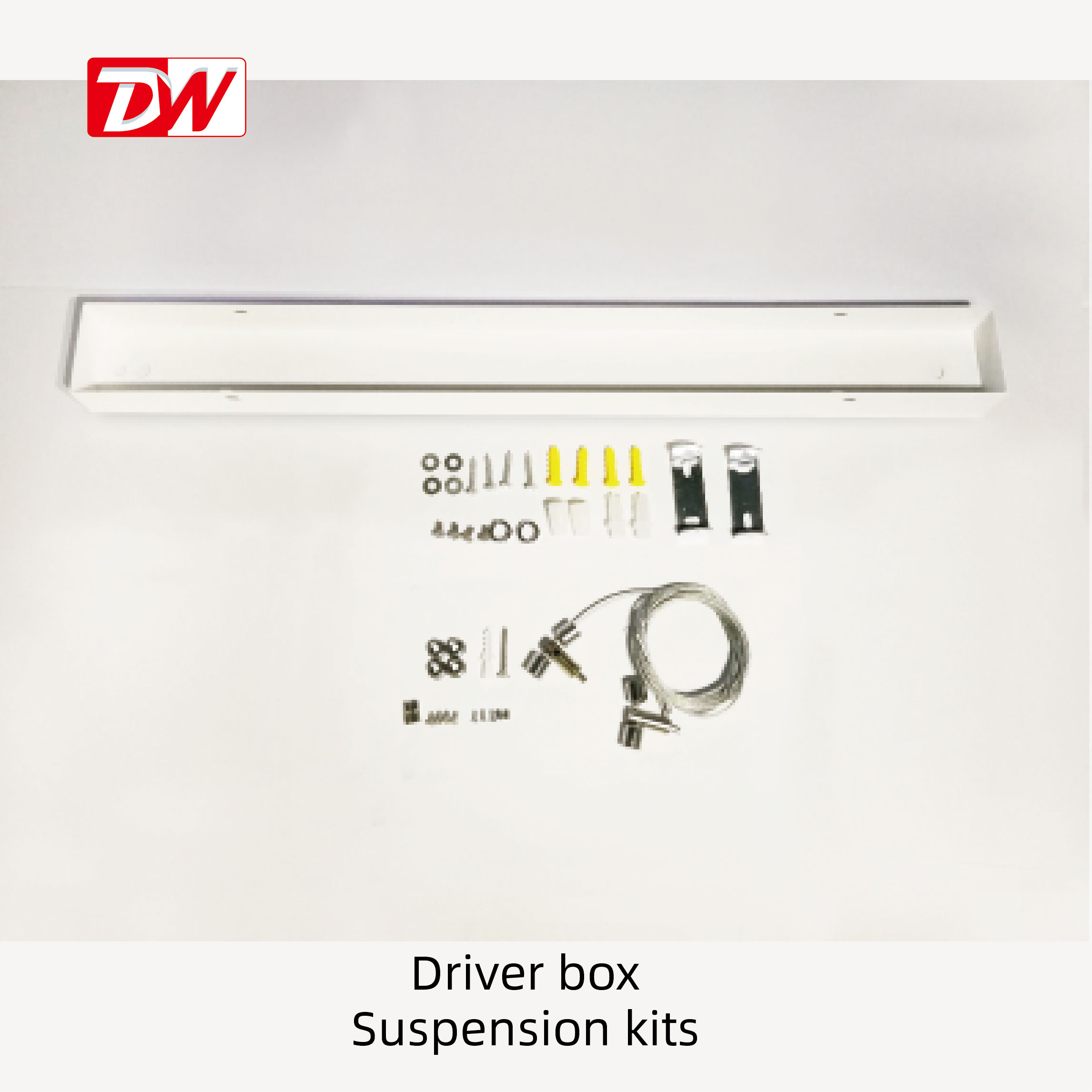

1.Driver box suspension kits;

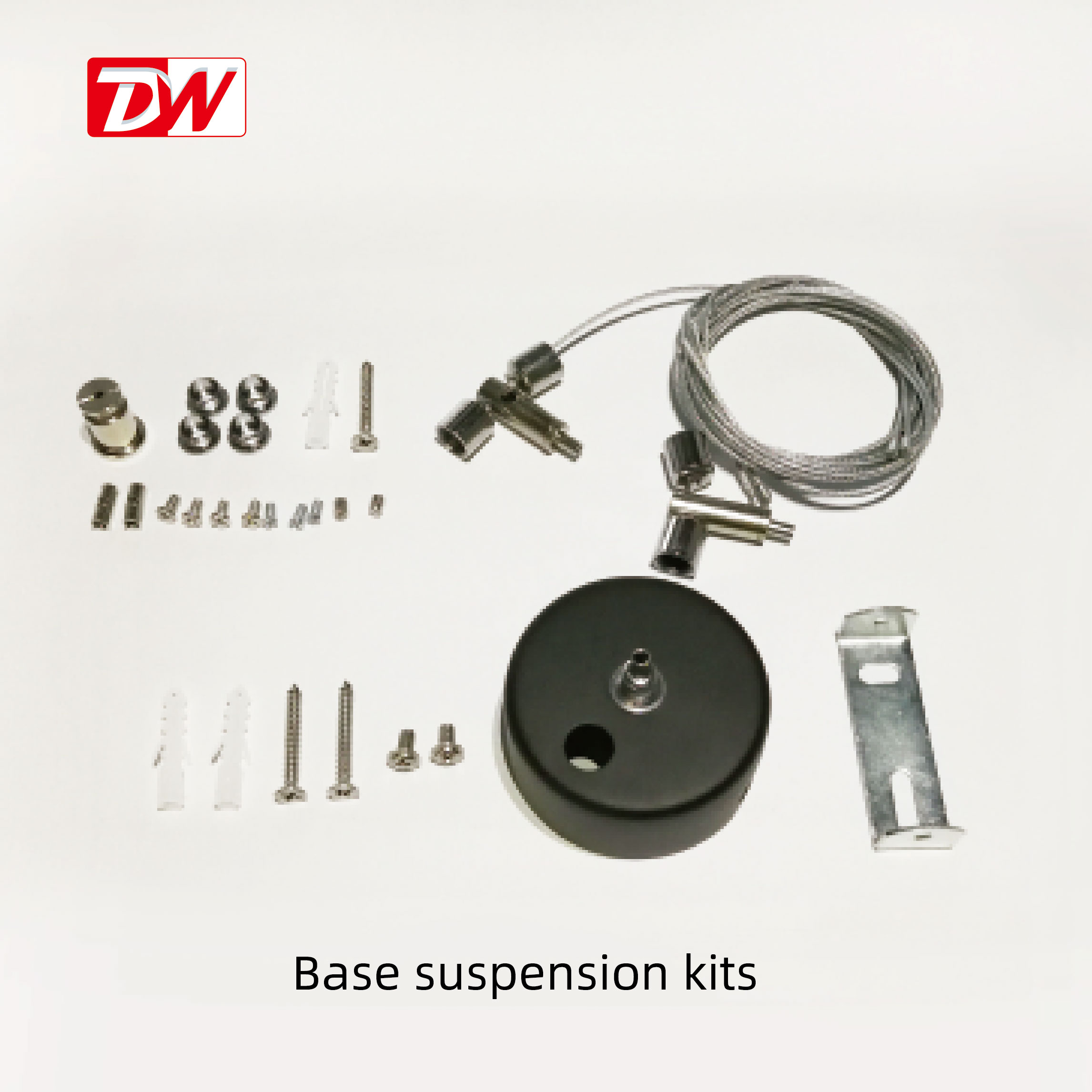

2.Base suspension kits.
◈ SPECIFICATION
Up/Down Clear panel | ||
Photometric Parameters | ||
NO. | Project | Parameter |
1 | Size | 295*1195*17.5mm; |
2 | LED | High luminous flflux SMD LED |
3 | Luminous Efficiency | 100 Lm/W |
4 | CCT | 3000K-5700K (warm white, natural white, cool white) |
5 | CRI | ≥80 |
6 | Beam Angle | 120° |
7 | LED Lifespan | ≥30000 Hours |
Electrical Parameters | ||
8 | Driver Input Voltage | AC220-240V /50-60Hz |
9 | OutputVoltage | DC30-40V |
10 | Power Supply Efficiency | ≥88% |
11 | Power Factor | ≥0.9 |
12 | Protection Class | Class II |
General Parameters | ||
13 | Rating IP | IP40 |
14 | Material | Aluminum + PMMA |
15 | Frame Finishing | White |
16 | Installation | Suspension |
17 | Working Temperature | -20～+45℃ |
18 | Storing Temperature | -40～+60℃ |
19 | Working Humidity | 15%~90%RH |
◈ SIZE
Efficiency | Model No. | Wattage | Luminous flux | CRI | UGR | Dimension |
100lm/W | DWCL3012036 | 36W | 3600lm | 80Ra | <22/<19 | 295x1195x17.5mm |
DWCL3015045 | 45W | 45000lm | 80Ra | <22/<19 | 295x1495x17.5mm | |
120lm/W | DWCL3012036B | 36W | 4320lm | 80Ra | <22/<19 | 295x1195x17.5mm |
DWCL3015045B | 45W | 5400lm | 80Ra | <22/<19 | 295x1495x17.5mm | |
◈ APPLICATION
♦ Showrooms
♦ Boardrooms, offices, corridors
♦ Retail outlets
♦ Hospitals
♦ Hotels, motels
