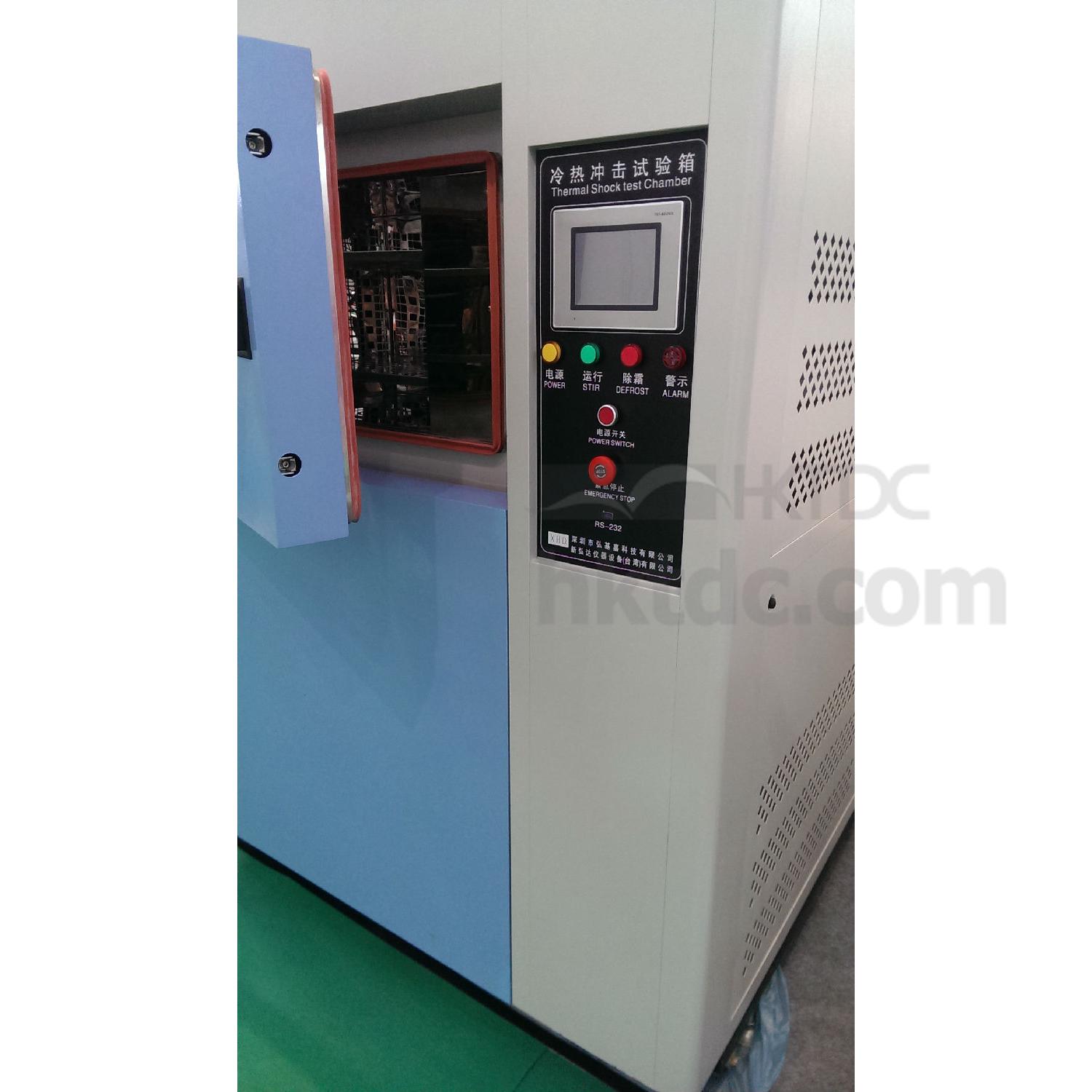

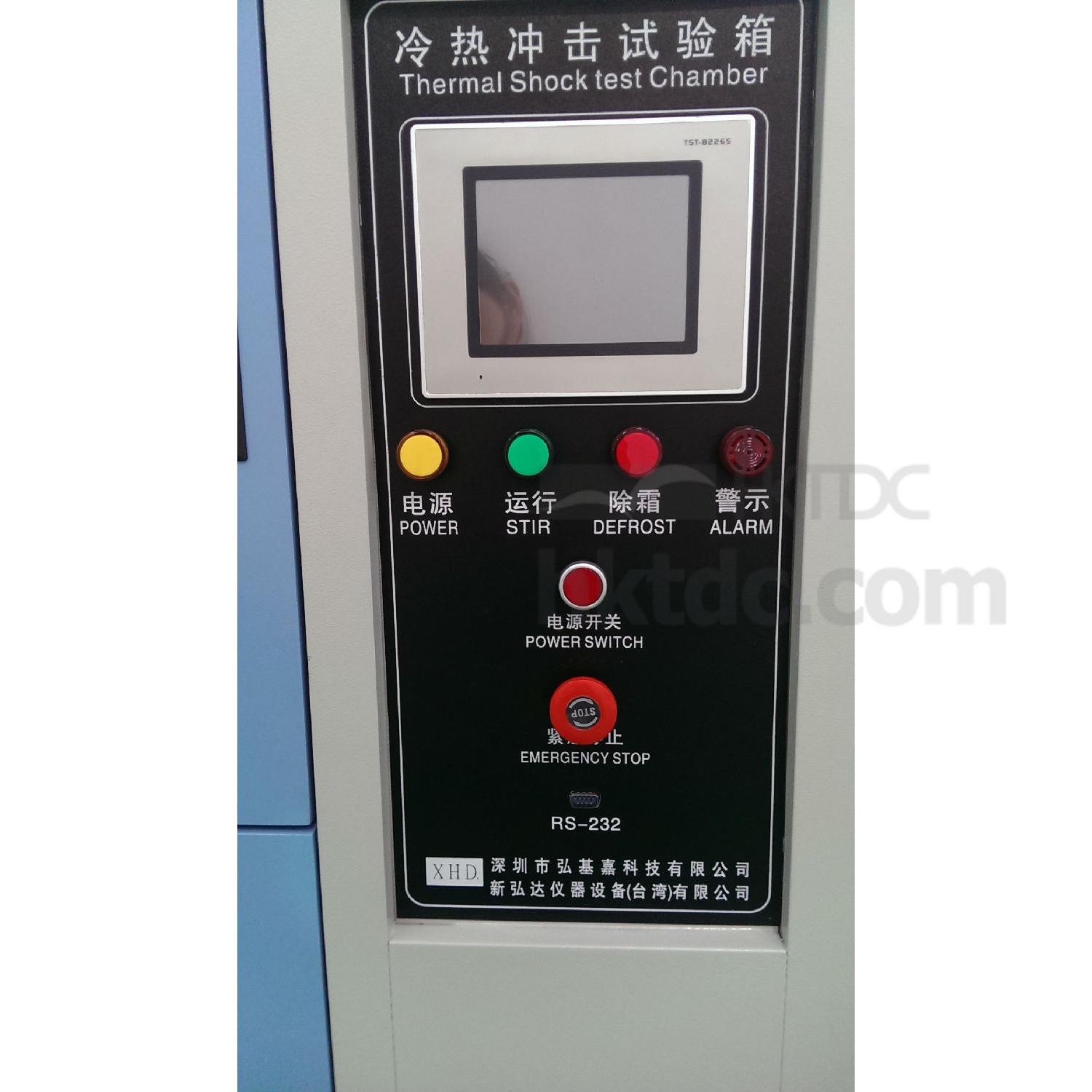

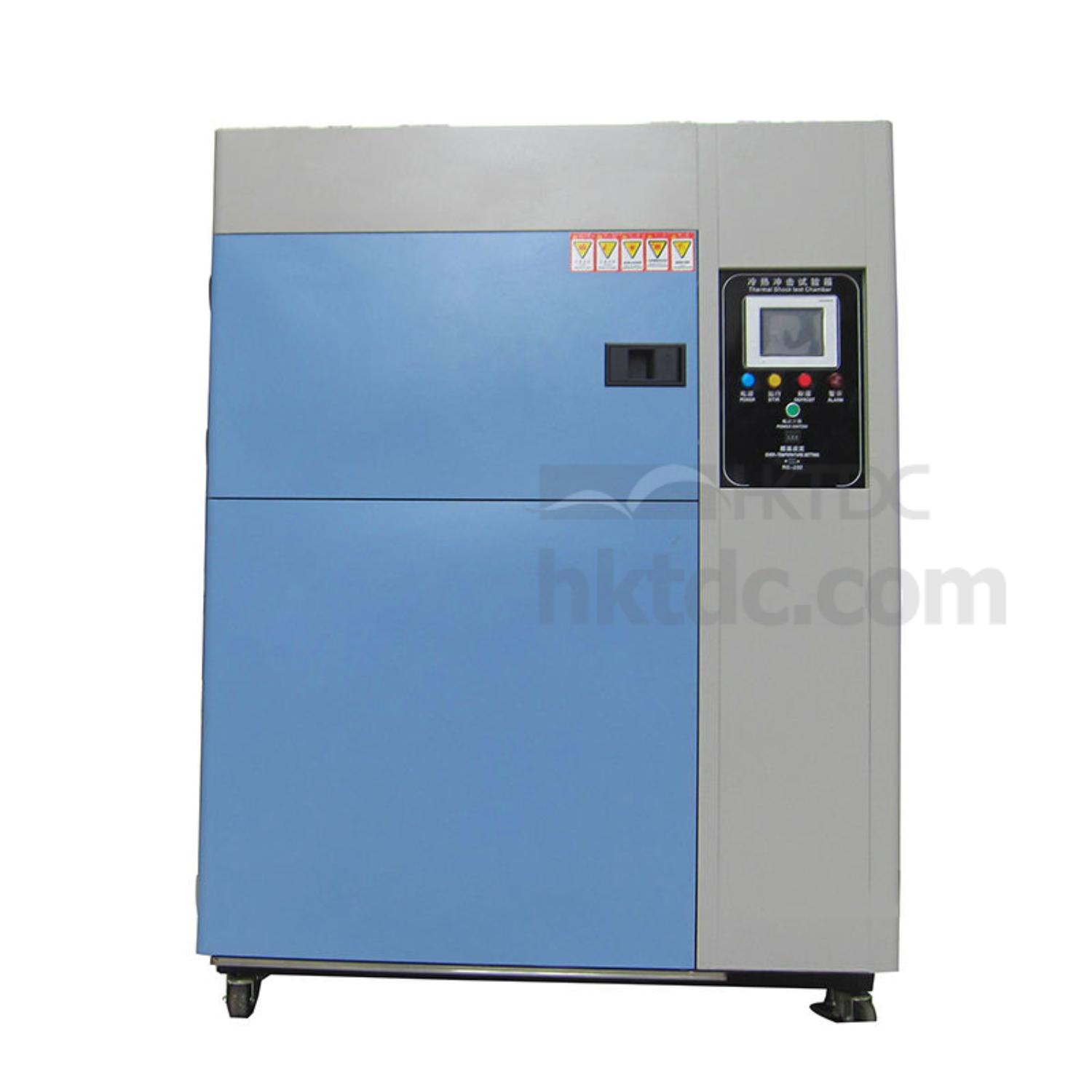

Cold-Thermal Shock Test Chamber
Production Lead Time:
42 day(s)
Model No.:
XHD-50L
Brand:
hongjijia
Colour:
White
Size:
1300 x 1800 x 1800
Port:
Yantian
Type of Payment:
Cash
Minimum Order Quantity:
1 piece
Type:
Temperature Controller
Customised:
Yes
Description
Contact Supplier
Description
the cold-thermal shock test chamber can be used to examine and determine the adaptability of electric products, rubber products, electronic products, automobile electric appliance, and materials as well as plastics and toys stored and used in the shock environment with high and low temperature. It's applicable to schools, plants, military projects, research institutes, etc.
Model XHD-6030XHD-6050XHD-6090XHD-9210
Supply voltageAC220V 50Hz~60Hz
Temperature control range RT+10～250℃ (minimum controlling temperature 50℃)
Vacuum degree133PA
Range of fluctuations of constant temperature±1.5℃
Temperature equalization±2℃
Vacuum pump
Vacuum pump included
Protection device Over-current and short-circuit protection
Over-temperature protection Over-temperature alarming
Model XHD-50XHD-80XHD-225XHD-408XHD-800
Supply voltage AC 380V 50Hz~60Hz
Shock range-70℃~+180℃
Low-temperature region -70℃
High-temperature region +180℃
Test zone
Placing the sample
Temperature inversion and recovery time ≤ 5 min
Temperature fall time in the low-temperature region within 50 min (Nonlinear no-load)
Temperature rise time in the high-temperature region20~ 180 ℃
20~ 180 ℃ within 30 min, (Nonlinear no-load)
Range of fluctuations of constant temperature±2℃
Temperature equalization±2℃
Rated power15KVA20KVA22KVA26KVA30KVA
Inner container dimension (mm)350×400×350400×500×400500×750×600600×850×8001000*1000*800
External dimensions (mm)1300×1800×18001400×1500×18001700×2100×23002000×2300×28002100*2500*2500
Please contact Shenzhen Hongjijia Science and Technology Co., Ltd.
Mobile: 0086+15818624714, Mr. Huang Rijiang
Address: Hanhaida High-new Tech Park, No. 144 Songgang Tangxiachong Industrial Avenue, Baoan District, Shenzhen, Guangdong Province, China
