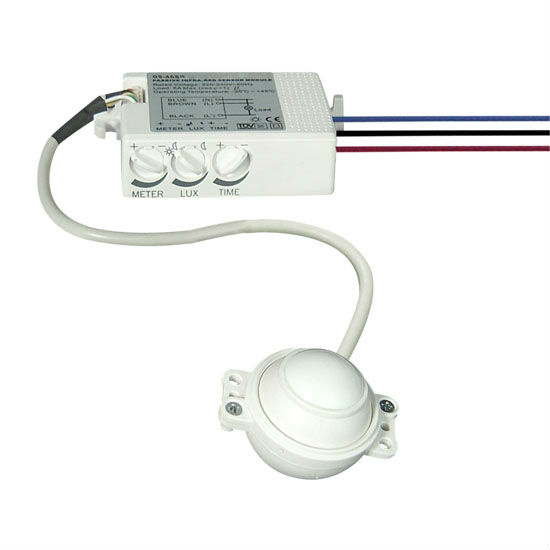

Compact PIR Motion Sensor Module for Built-in Lighting
Production Lead Time:
45 day(s)
Model No.:
OS-468R
Colour:
White
Port:
Hong Kong
Type of Payment:
T/T before shipment
Minimum Order Quantity:
1,000 piece(s)
Description
Contact Supplier
Description
- Rated voltage: 220-240VAC 50Hz
- Load: Max. 5A voltage free contact
- Lux: adjustable from about 5Lux to ∞
- Time: adjustable from about 6sec to 5min
- Meter: Ø6m at 2.4 meters height (adjustable)
- Detection angle: 100 degrees
- (sensor head is 360 degrees rotational)
- Operating temperature: -20℃ to + 45℃
- Environmental protection:
- Sensor head: IP44
- Control box: none
- Dimensions:
- Sensor head Ø33mm
- Power box: 82mm (L) x 55mm (W) x 20.5mm (H)
- Safety approval: CE
