Composite RG6/U Coax

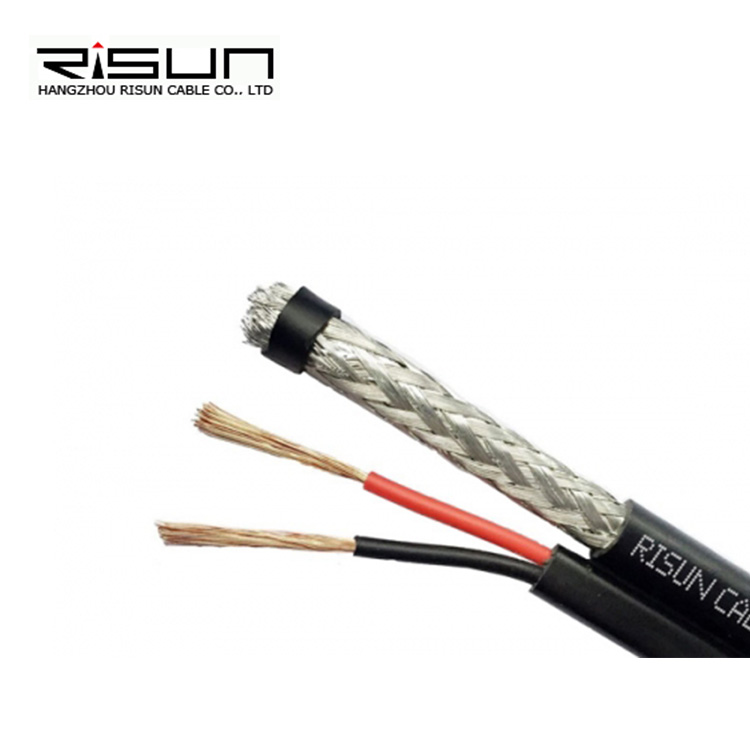

Composite RG6/U Coaxial Cable 95% Coverage with Power Feed Wire for HD Camera
DESCRIPTION
Suitable for signal transmission ■ CCTV ■ Local Area Network ■ Digital video ■ Monitor/VDT display ■ Security Camera
CABLE CONSTRUCTION
RG6/U Coaxial cable
Conductor	Copper Clad Steel (18AWG)	1.02+/-0,005 mm
Insulation	Foamed PE	4.70+/-0,05 mm
1st shield	Bonded Aluminum Foil
2nd shield	Aluminum wire braid 24 x 7x 0,12m	95%
Sheath	PVC	6.90+/-0,10 mm
Color	Black
18AWG x 2C cable
Conductor	Stranded bare copper	32x0,20+/-0,005 mm
Insulation	PVC ( black/red)	2.0+/-0,05 mm
Bending radius	≥ 8 x Diameter (mm) Installation
Storage temperature	-15℃ + 70℃

*ELECTRICAL SPECIFICATIONS*
Nominal Impedance	75+/-3	Ohm
Capacitance approx	52+/-3	pF/m
Velocity ratio	85	%

Attenuation at 20°C MHz			dB/100 m
5			1.9
55			5.25
211			10.0
400			13.61
500			15.29
750			18.54
860			20.01
1000			21.49

PACKING

305 m / wooden drum

500 m / wooden drum

All sizes and values without tolerances are reference values. We reserves the right to amend this specification without prior notice.

FAQ:

Q:How do you ensure cables quality?
A:Each cable undergoes physical testing in accordance with ISO/IEC 11801 and TIA-568-C.2 standards. Our team monitors every stage of production, with QC inspecting each step to ensure quality.

Q:Are you a manufacturer or trading company?
A:We are a factory.

Q:What is your delivery time?
A:Typically 5-10 days if in stock; 20-30 days for custom orders, depending on quantity.

Q:Do you have an MOQ?
A:Yes, normally 10 km per item.

Q:Do you provide samples? Are they free?
A:Yes, samples are free, but freight charges apply.

Q:How do I place an order for cables?
A:Share your requirements or application.→We provide a quote.→Confirm the sample and place a deposit.→We start production.

Q:Can I print my logo on the cables?
A:Yes, inform us before production.

Q:What are your payment terms?
A:Orders ≤ 60 km: 100% upfront.
Orders ≥ 60 km: 30% deposit, balance before shipment.

Please contact us for more information and our quotation!
