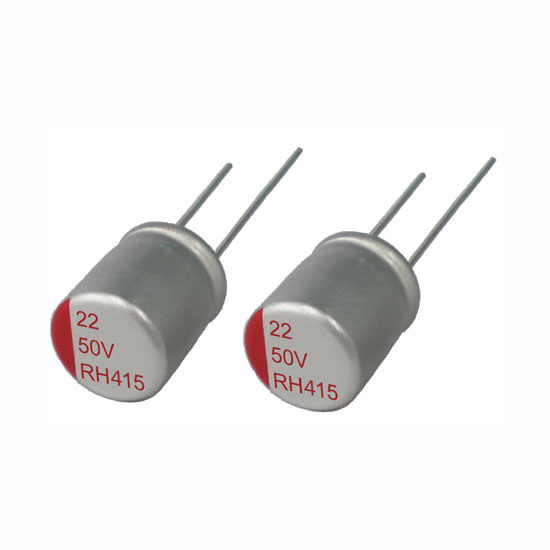

Conductive Capacitor

Model No.:

RH series

Brand:

PolyCap

Colour:

Red

Description

Contact Supplier

The conductive polymer aluminum solid capacitors of the RH series boast a high working voltage and a super long lifespan of up to 5,000 hours. They are suitable for use in LED lighting, power devices and industrial devices. Lead free-flow is supported.

Operating temperature range: -55～+105℃.
Capacitance range: 1.8～220μF.
Capacitance tolerance M: ±20%.
Rated voltage range: 35V～200V DC.
Dissipation factor: (at 120Hz, 20℃) not to exceed the value specified leakage current ≤0.2CV (μA, after 2 minutes).
ESR: (100K~300KHz) not to exceed the value specified endurance 105℃, 5,000h at rated voltage.
Capacitance change within ±20% of the value before test.
Leakage current: not to exceed the specified value.
ESR: not to exceed 150% of the specified value.
Dissipation factor: not to exceed 150% of the specified value.
Moisture resistance: stored at 60℃, RH90～95%, and 2,000h.
Leakage current: not to exceed the specified value.
