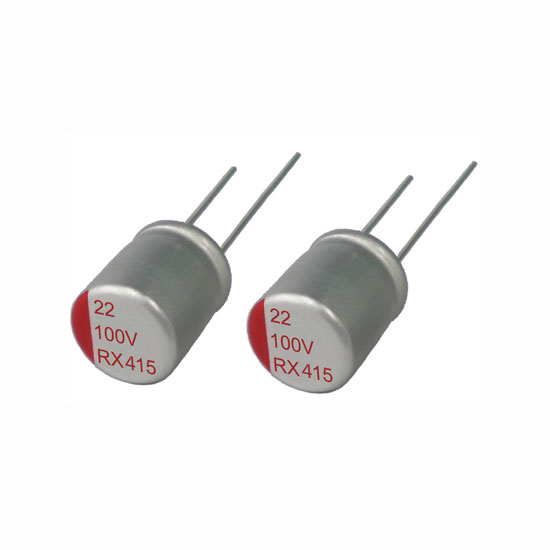

Conductive Capacitor

Model No.:

RX series

Brand:

PolyCap

Colour:

Red

Description

Contact Supplier

This series of conductive polymer aluminum solid capacitors has advanced characteristics in resistance to heat compared with the RV series. It is engineered to deliver reliable performance with high stability. The capacitors are made under strict QC to promise quality you can rely on.

Lead free-flow is supported.
Operating temperature range: -55～+135℃.
Capacitance range: 4.7～120μF.
Capacitance tolerance M: ±20%.
Rated voltage range: 35V～100V DC.
Dissipation factor: (at 120Hz, 20℃) not to exceed the value specified leakage current ≤0.2CV (μA, after 2 minutes).
ESR: (100K~300KHz) not to exceed the value specified endurance 135℃, 1,000h at rated voltage.
Capacitance change within ±20% of the value before test.
Leakage current: not to exceed the specified value.
ESR: not to exceed 150% of the specified value.
Dissipation factor: not to exceed 150% of the specified value.
Moisture resistance: stored at 60℃, RH90～95%, and 2,000h.
Leakage current: not to exceed the specified value.
