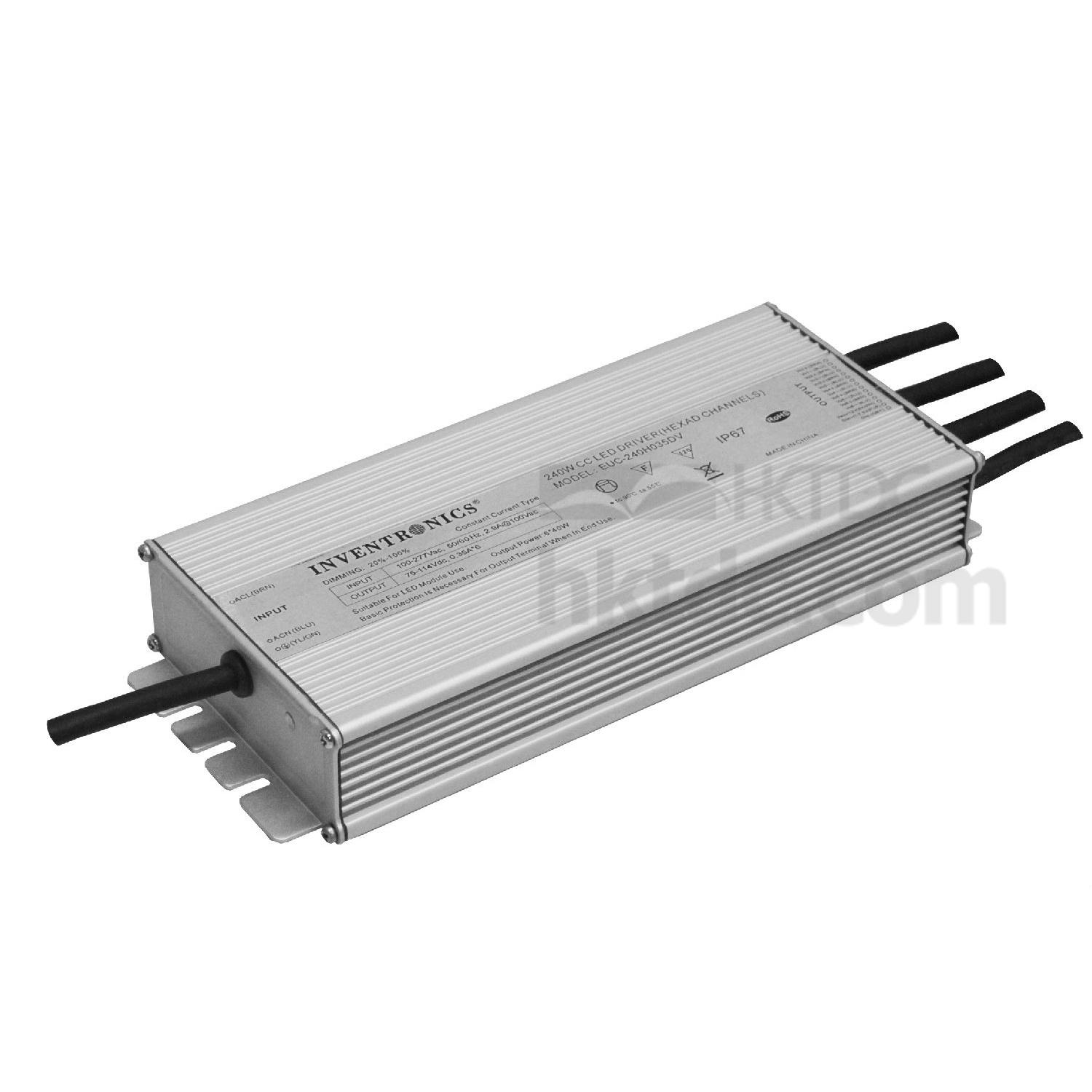

Constant Current Outdoor LED Driver
Weight:
1600g
Model No.:
EUC-240H035DV
Brand:
Inventronics
Colour:
Silver White
Size:
210mm*100mm*38mm
Certification:
EMF,TUV,CB, CE, CQC, PSE
Warranty:
5 years
Output Voltage(V):
57-103Vdc
Input Voltage(V):
90-305Vac
Description
Contact Supplier
Description
Make sure LED lights function properly in outdoor areas with this constant current LED light driver. It offers 6-channel output and provides lightning protection, short-circuit, over-voltage and over-temperature protection. This outdoor LED driver has a robust housing with IP67 protection and offers a long working life.
- Series: outdoor series.
- Feature: constant current (350mA).
- IP67.
- Six channels output.
- Lightning protection.
- Short-circuit, over-voltage and over-temperature protection.
- Power factor: typical 0.99.
- THD:20% (Max).
- Typical efficiency: 91.5%.
- Operating temperature: -40 to +70℃.
- Storage temperature: -40 to +85℃.
- Output current tolerance: ±5%.
- Humidity: 5-100%RH.
- MTBF calculation: 201,400 hours.
- Lifetime: 76,700 hours.
- Lifetime safety approval: EN 61347-1, EN61347-2-13.
- SELV.
