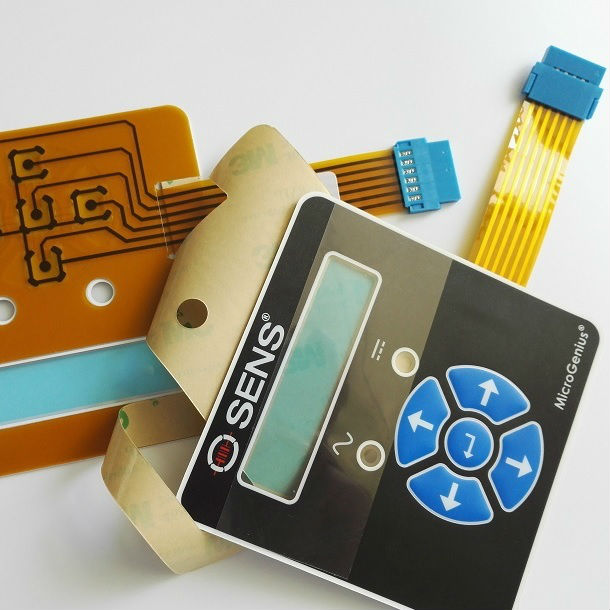

Copper Flex FPC Circuit Membrane Switch
Production Lead Time:
5 day(s)
Model No.:
LTMS0002
Brand:
LUPHITOUCH
Colour:
customized
Size:
customized
Package:
No
Customised:
Yes
Keypad Button Material:
PET
Application:
Home Appliance, Remote Control Unit, Telecommunication Equipment, Medical equipment, industrial control, machinery and equipment, ship, rail transportation, military, aviation
Description
Contact Supplier
Description
- Details of Flex & Rigid Membrane Switches VTMS00211-6.jpg
- The circuit of membrane switches can be flex and rigid.
- It depends on the customer end application and also related to the cost budget and other considerations.
- For example, life, resistance, connection type on main board etc.
- For the flex circuit membrane switches, there are two types.
- They are silver printed PET circuit and copper etched FPC circuit.
- Their difference and advantages & disadvantages listed bellow: Items Silver Printed Circuit Copper Etched FPC Circuit Material PET (Polyester) Copper Conductor Printed silver Copper Contact Fingers Silver and Carbon Gold plated Contact Buttons Pads Silver Gold plated Life & Reliability normal good Stability normal good Resistance low Very low Cost low high Lead Time 2-3 days 7-10 days Pitch 0.5mm (not suggested), 1.0mm,1.27mm, 2.54mm 0.5mm, 1.0mm,1.27mm,2.54mm Usually if the membrane switches need assembled many LEDs, then we suggest to use FPC circuit, it can get more stable LED soldering quality.
- For the normal application the PET circuit is enough, which is more economical.
- In addition if the conductor pitch is 0.5mm, although we also can print it, but we still suggest to use FPC circuit. Because of that 0.5mm pitch is too small and it is easy to occur the short circuit problem.
