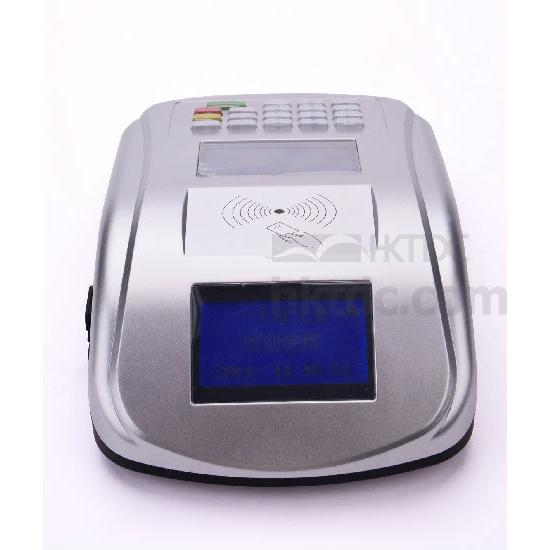

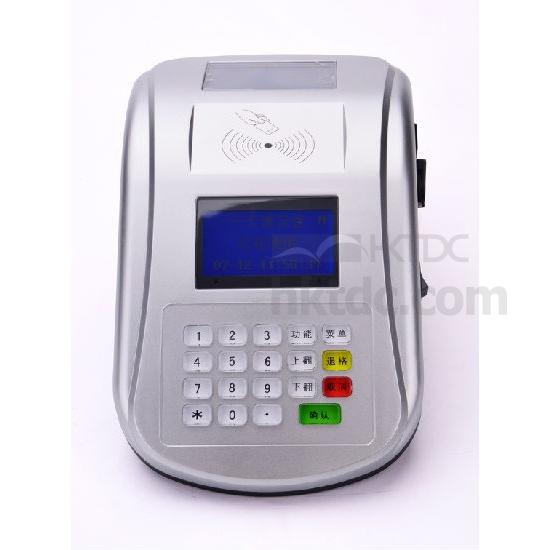

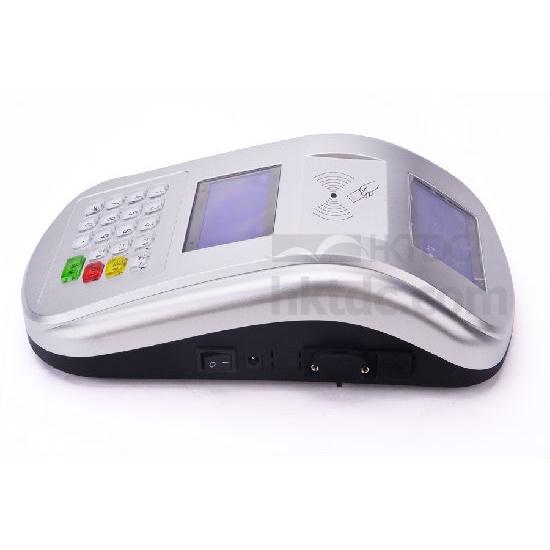

Countertop POS Terminal

Model No.:

X100

Brand:

Lenz

Colour:

Silver

Port:

Xiamen

Type of Payment:

L/C, T/T, Western Union, PayPal

Customised:

Yes

Description

Contact Supplier

Specifications:

CPU: high performance 32 bits ARM CPU.
Memory : FLASH 128M, can read TF card (max to 4G )
Display: 128 x 64 lattice and dual-screen display, LCD display with backlight which is adjustable
Keypad: total 19 keys, includes alphanumeric keys, function keys.
Non-contact IC Card: ISO14443A/B、Mifare, meets the PBOC2.0; sensitivity distance farther than 6cm, without dead zone
SAM card: standard equipped 2 PCS of SAM card (max to 4pcs of SAM)
Intime clock function: yes, error smaller than 10s/month, in 25 ℃
Character set: Chinese characters literary of GB18030
Radio functions: yes
Wireless communication: Wi-Fi/GPRS、EVDO、WCDMA
Wire communication: RS-232/RS-485/Ethernet/USB 2.0
Physical communication: 1pc DB9 port, 2pc USB ports, 1pc RJ45 port, 1pc DC port
Power supply: 12V/2A power adapter or Lithium polymer rechargeable battery
Dimension: 280 x 165 x 74mm
Application: various of applications
Operating environment: operating temperature: -10-+50℃
Storage temperature:-40~+70℃
Relative humidity: 50℃(20~90)% RH
Standard reference: ISO-7816 items,ISO-14443 1/2/3 item, IC card applications standards in Chinese contributions
Development conditions: EPT-SDK, support ANSI C language
Working time: working more than 50,000 h in MTBF environment
