Cross Flow Blower Brushless DC Motor

Production Lead Time:

35 day(s)

Model No.:

B3725S

Brand:

Hengdrive

Colour:

Metal

Size:

37 x 25mm

Port:

Shenzhen, Hongkong

Type of Payment:

T/T

Minimum Order Quantity:

3,000 piece(s)

Warranty:

2 year

Customized:

Yes

Description

Contact Supplier

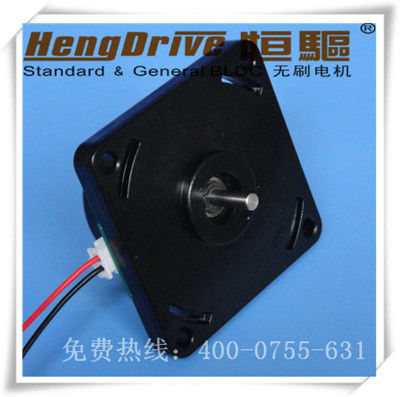

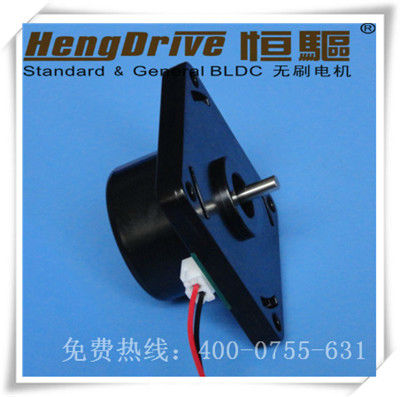

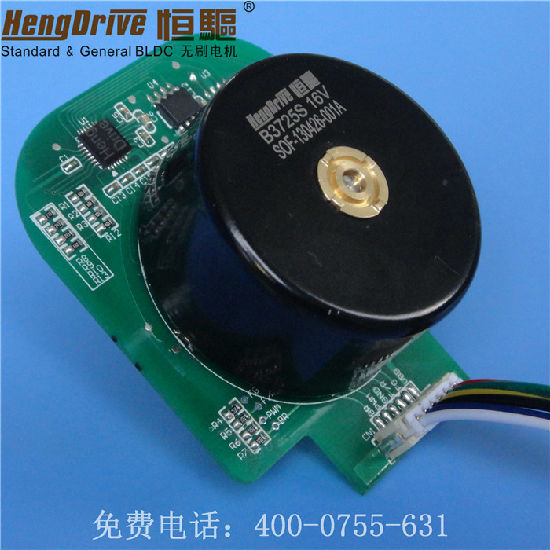

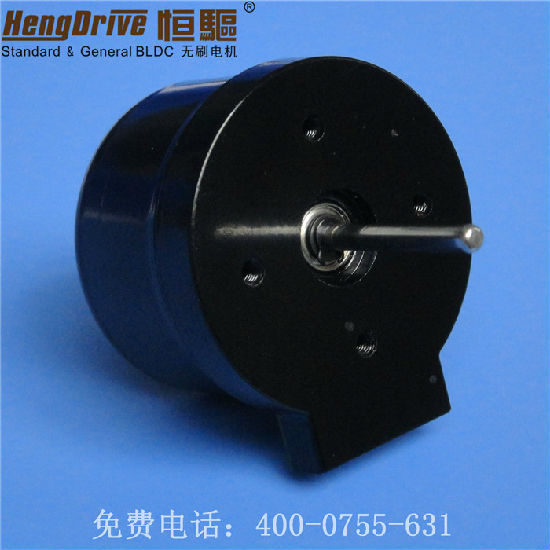

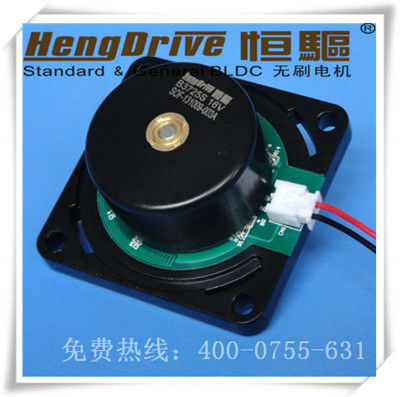

B3725S Outer Rotor 3-Phase Brushless DC Motor

Typical Application
Home Application: White Goods, Small Appliance, Electric Fanner, Stirrer
Medical Apparatus: Medical Pump, Medical Stirrer, centrifugal Machine
Instrument & Meter: Microscope, measurement meter
Industry Facility: Electric Valve, Linear Actuator
Business Equipment: Printer, Copier, Projector, ATM, Vending Machine
Personal Care: Portable Air Filter

Specifications:
Model: B3725S-S03
Operating Range: 8-26V
No Load Speed: 4460 RPM
No Load Current: 0.13 A

Rated Voltage: 24V
Rated Speed: 3300 RPM
Rated Torque: 42.97 mNm
Rated Current: 0.93 A
Output: 14.98 W

Starting Torque: 129 mNm
Starting Current: 2.5 A

Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-30000hrs

Notice: Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.
