Application:

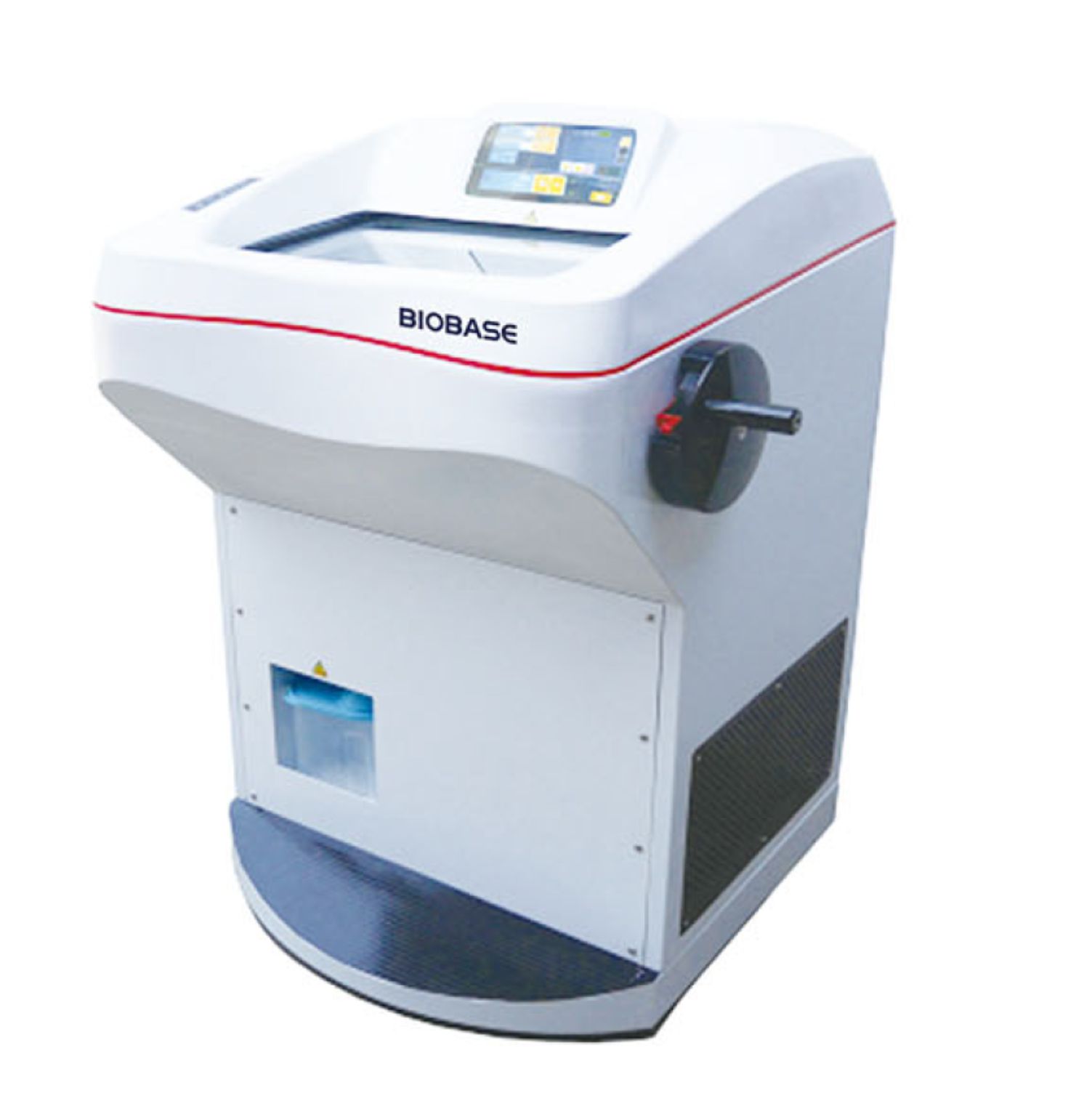

The Bk-3000 Cryostat Microtome is belong to one class medical equipment. It is a device for rapid pathological section analysis of human body, animal and plant tissues.

It is widely used in hospitals, medical schools, forensics, animal and plant research units for pathological diagnosis, analysis, and research.

The machine is mainly composed of four parts:

* The upper part of the machine is a microcomputer control part and panel operation, temperatuire display, and working status display part.

* The lower part is the refrigeration part of the compressor unit.

* The middle and rear parts are mechanical transmission and motor drive parts.

* Cell pathology section, biological fiber section, etc.

Features:

*The 10-inch color LCD touch screen can separately display the total number of slices and the total slice thickness, slice

   thickness, specimen retraction value, temperature control, date, time, temperature, timing sleep switch, defrost and other functions. The operation display can be set to switch

   between Chinese and English operation interface, which is convenient for different users all over the world to operate.

*Humanized hibernation function: After selecting the hibemation state, the temperature of the freezer compartment can be

  automatically controlled between - 1 and -9°C. After the hibemation is canceled, the sectioning temperature can be reached within 15 minutes.

*Imported dual compressors refrigerate the freezing box, freezing table, knife holder, sample chuck, and tissue presser at five points respectively.

*The knife holder is equipped with a blade thruster and a knife guard to cover the full lenght of the blade, which protects the user safely.

*Equipped with rubber instrument rack and waste box.

*X-axis 360°, Y-axis 12° universal rotation, snap-on tissue chuk, easier and faster to install the organization.

*Anti-adhesive tissue flattening device, with specimen refrigeration, the temperature can reach -50°. which is convenient for freezing the tissue and saving operation time.

*The temperature sensor self-checking function can automatically detect the working status of the sensor.

*Single-layer heated glass door, effectively preventing water mist condensation.

*Hand wheel positioning 360° locking function at any point.

*The sample chuk travels to the limit postition and automatically returns to the starting postition function.
