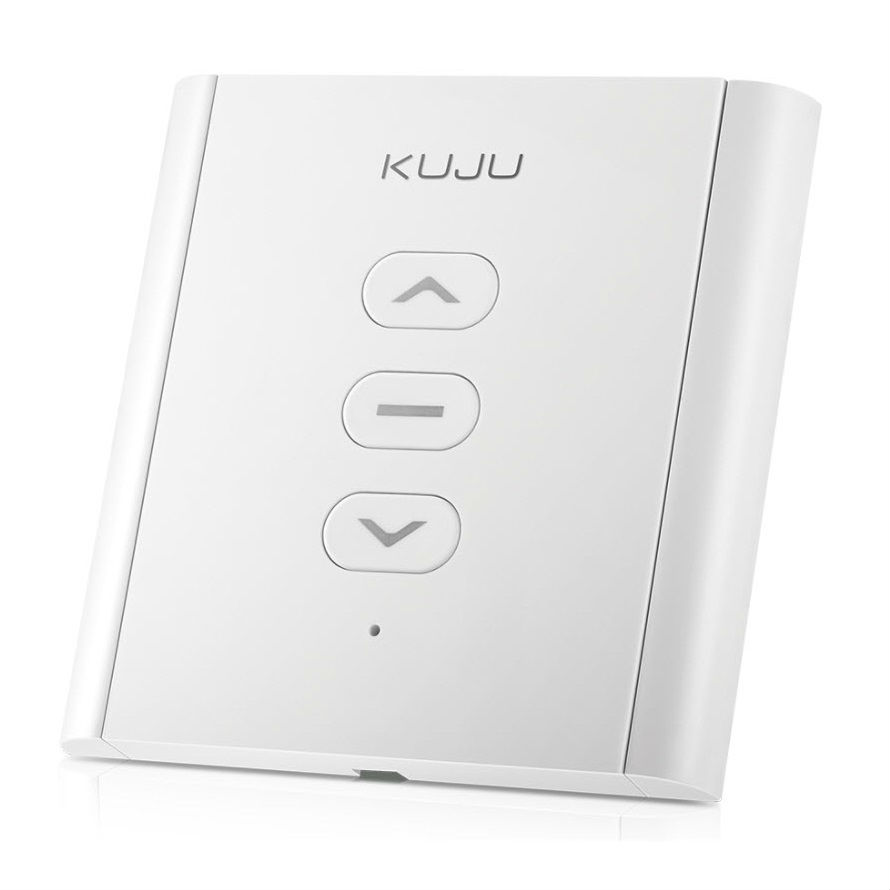

Curtain Controller
Model No.:
CSZ 1100
Description
Contact Supplier
Description
Curtain controller turns your electric curtain into smart device easily. A properly controlled curtain system that maintains precise control of the environment of your house. Our curtain controller delivers powerful performance and reliable operation.
Technical Specification
Technical Specification
- RF Frequency：919.80 MHz (HK), 868.40 MHz (EU/CN)
- Transmission Range：Up to 30m indoor
- Curtain Motor Support：Strong Electric Motor / Dry Contact Motor Control
- Max. Loading Power：5A, 220VAC
- Input Power：AC 220, 50/60Hz
- Control Mode：Open / Stop / Close
- Indicator：Green LED
- Dimension (WxHxD)：86x86x35mm
- Weight：110g
- Mounting Method：Screw Mount in Wall Box
- Operation Temperature：0 ~ 40 ℃
- Relative Humidity：5 ~ 95 %
- Environmental Characteristic：IP20 indoor use only
