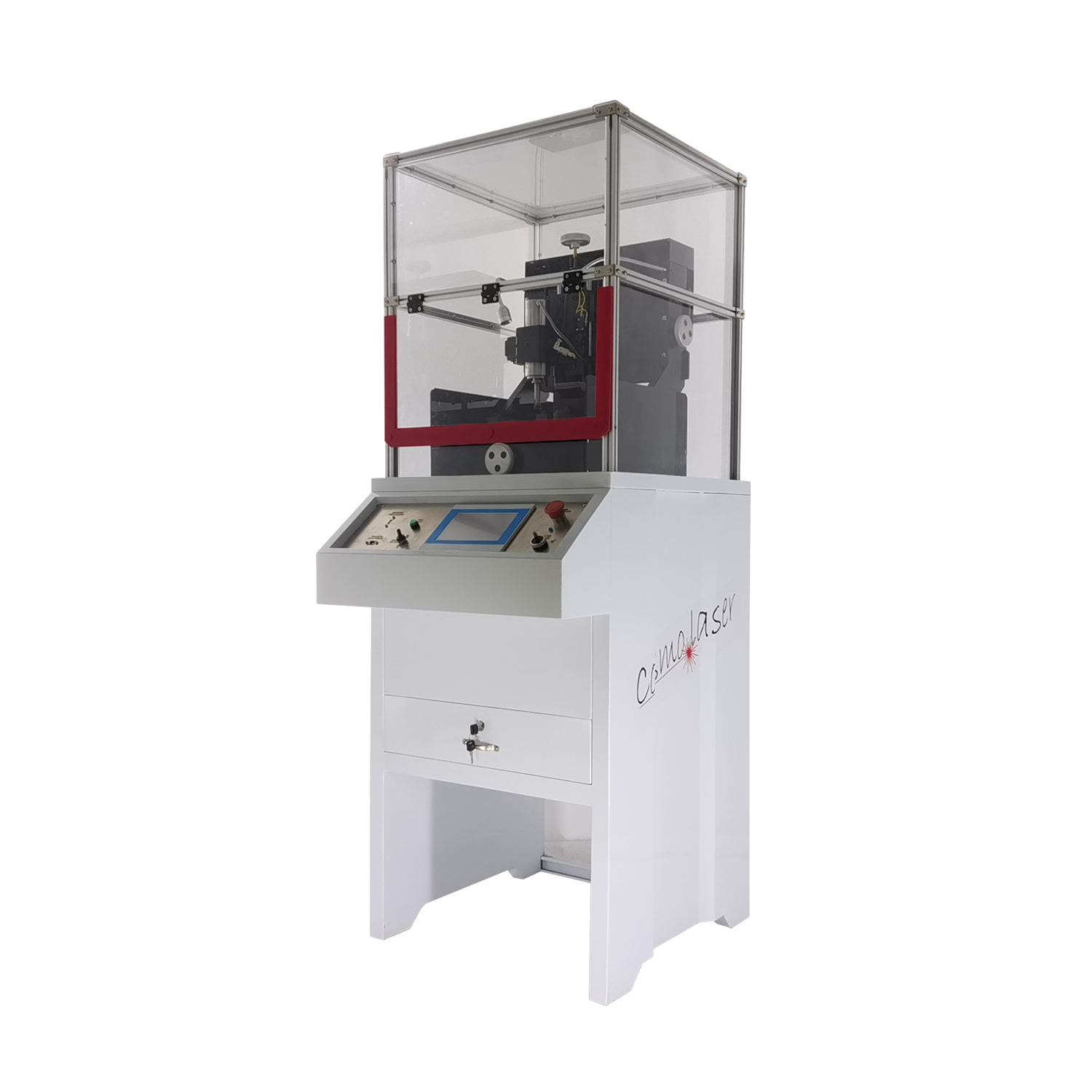

Cutting Machine
US $6800.00 - US $7500.00
Production Lead Time:
14 day(s)
Shipping Method:
Seaworthy Packing
Brand:
Cosmo Laser
Model No.:
CDC-A3
Description
Contact Supplier
Description
1. Two cutting positions: vertical & horizontal
2. Changeable cutters for different designs
3. Minimum thickness up to 0.1mm
4. Maximum material loss recovery
5. Low maintenance and long lifetime
6. Easy programming
7. Quick loading worktable system
Product Specification
| Working Area : | Vertical Cutting: 100mm × 150mm Horizontal Cutting: 60mm × 160mm |
| Work Piece Thickness : | 0.1-5mm |
| Axis : | 3 Axis |
| Control System : | CNC System |
| Language: | English/Chinese |
| Accuracy : | 0.02mm |
| Spindle Motor Max. Speed : | 60,000 rpm |
| Power Supply : | 220V/1P (Standard) 110V/1P (Optional) |
| Max Power Consumption : | 1Kw |
| Machine Dimensions : | 620mm × 790mm × 1690mm |
| Machine Weight : | 145Kg(Net)/ 200kg(Gross) |
*Our products undergo continuous improvements. This information is based on current
knowledge. We reserve the right to make changes without prior notice.
