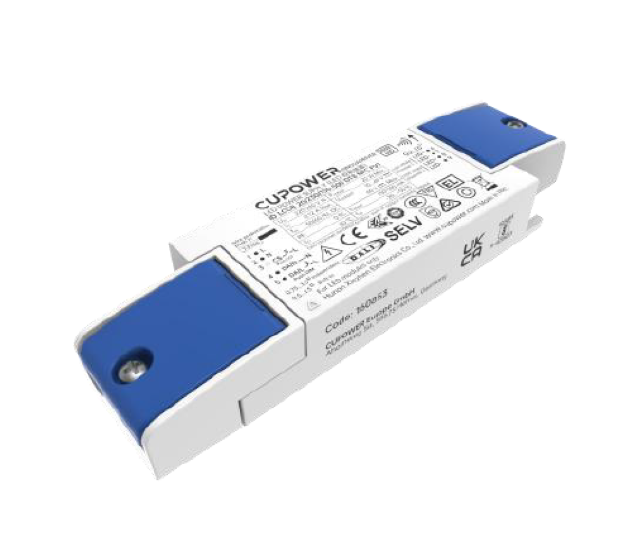

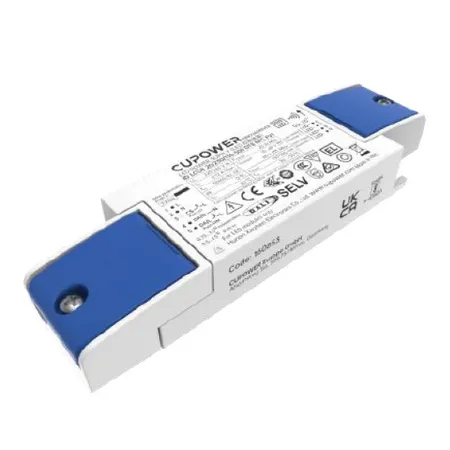

Product Features

• Independent isolated adjustable power color temperature LED driver
• Flicker-free LED driver
• Supports DALI-2, push dimming, push CCT control
• Usable as DT6 (2-channel) or DT8 (Tunable White) driver
• Current adjustment via NFC
• Output current 150…500 mA
• Max. output power 20 W
• DC emergency ：Current output default value 100%
• For luminaires with protection class l,II
• 5 years warranty

Description

• Constant current driver with wide operating windows
• Supports DALI-2, push DIM and push CCT
• Supports NFC readers for precise setting and control of multiple functions
• Supports two independent DT6 or one DT8 output
• Smooth colour temperature setting and dimming with dimming range 1-100% (amplitude dimming)
• Equipped with i-Data (30W, 44W, 60W): enabling data management according to DALI parts 251, 252 and 253
• The DC emergency mode adjusts the current to 15% by default (adjustable), applies to 30 W, 44 W, 60 W versions
• Loop through connection comply with 2.5 mm² engineering cable entry specifications
• Standby power consumption ≤ 0.3 W (30-60 W), < 0.5 W (20 W), meets ErP energy efficiency certification
• Packing unit programming: configure a large number of drivers in parallel via NFC

For more information, please visit the product page on our official website：

https://cupower.com/theproducts_7/ID-CCCB-20-230-150-500-DT8-NFC-FV1.html
