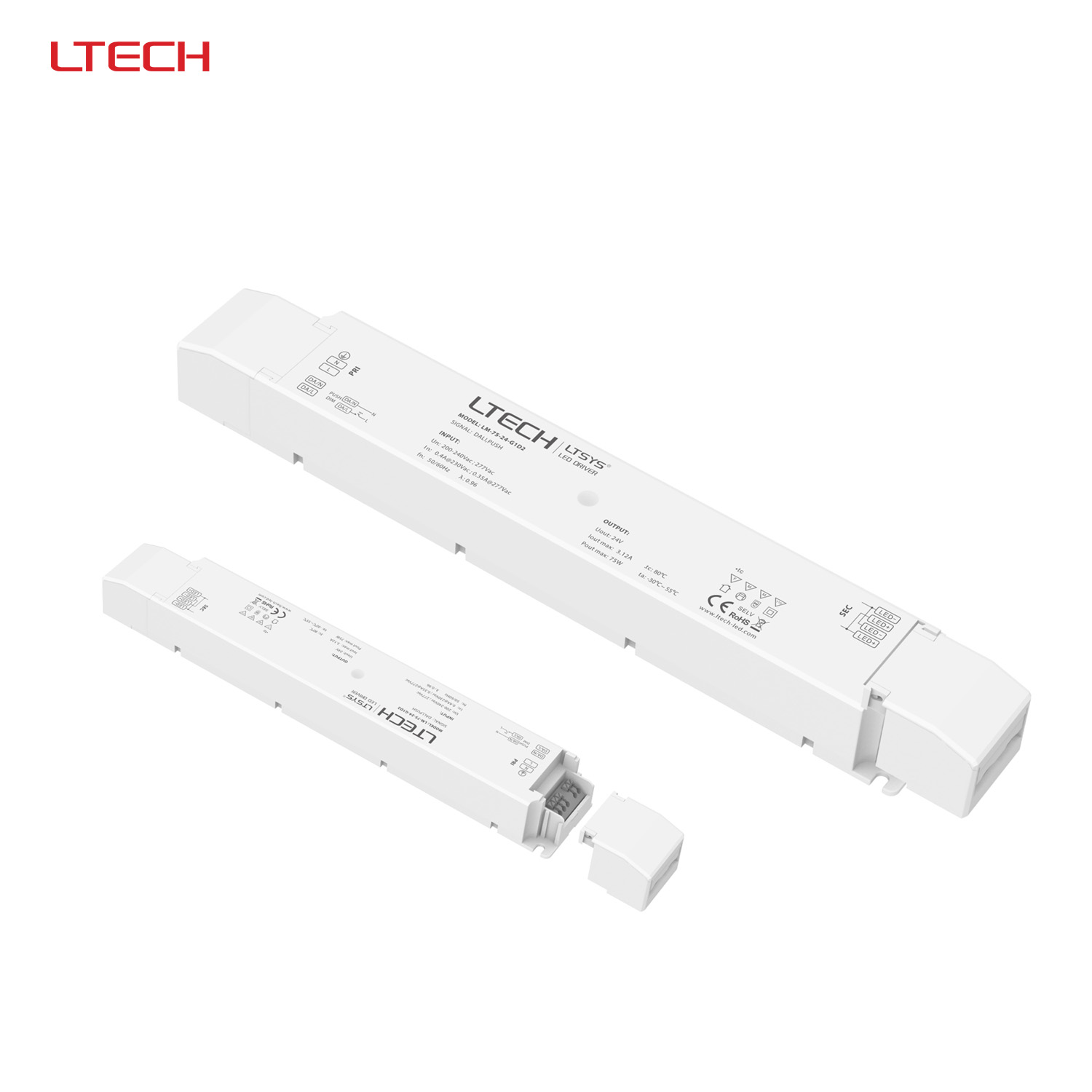

DALI LED Intelligent Dimming Driver
Weight:
300g
Model No.:
LM-75-24-G1D2
Brand:
LTECH
Power:
Medium Power
Fitting:
Linkable Fitting
Strip light:
Linkable
Certification:
CE, EMC, FCC, LVD, RoHS
Warranty:
3 Years
Output Voltage(V):
12/24V
Input Voltage(V):
200-240
Input Signal:
DALI
Output Signal:
PWM
Description
Contact Supplier
Description
- Dimming interface: DALI (IEC62386), Push Dim
- Dimming Range:0-100%
- LED start at 0.1% possible
- DALI Dimming curve: liner curve or logarithmic curve
- Short circuit/over-heat /over load/over voltage protection
- Class 2 power supply
- Full protective plastic housing
- DALI bus standard: IEC62386-101,102,207
- Compliant with Safety Extra Low Voltage standard
- LM-75-24-G1D2
- Input Voltage Range: 200-240Vac, 277Vac
- Power Factor: PF0.96/230Vac , PF0.95/277Vac, at full load
- Efficiency: 91.5%
- Output Voltage Range: 24Vdc ±0.5Vdc
- Output Power Range: 1~75W
- Output Current: Max. 3.12A
- Working Temperature.: tc: 80Fahrenheit ta: -30 ~ 55 degree
- Centigrade Dimension: 292×43×30mm(L×W×H)
- Packing: 296×44×33mm(L×W×H)
- Weight(G.W.): 300g±10g
