Features

• Universal AC input 100–240 V AC.
• Constant Voltage Operation.
• Suitable for DALI bus application.
• Protections: OCP / SCP.
• Compatible with DALI standard IEC62386.

Specifications

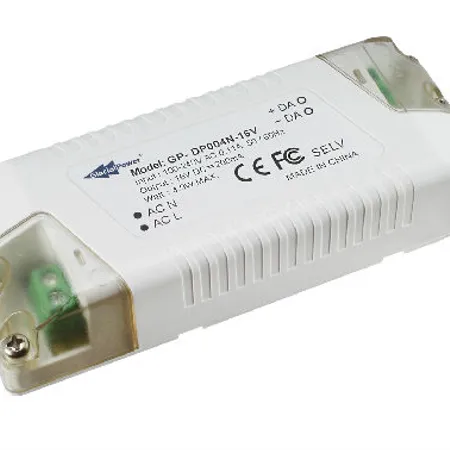

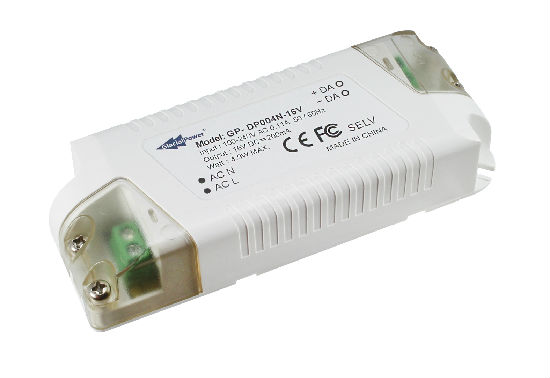

• Model No.: GP-DP004N-16V

Output>>
DC Voltage: 16V
Voltage Tolerance: ±10%
DC Voltage Range: 14.4～17.6V
Rated Current: 200mA
Current Tolerance: 200mA＋10% / －15%
DC Current Range: 170～220mA
Rated Power: 3.36W
Ripple & Noise (Max.): 150mV
Set up time (Max.):
115V AC: < 1S / 230V AC: < 0.5S
InputRated Voltage: 100～240 V AC
Voltage Range: 90～264 V AC
Frequency Range: 50 Hz～60 Hz
AC Current (Max.): 0.11A @ 115V AC
Inrush Current (Max.): 13A @ 115V AC / 25A @ 230V AC
