With the scalability of DALI application, Kinglumi introduces LEDGEAR® DALI Repeater and Bus Power Supply 2in1 design product. In addition to power up to 64 DALI ECGs, It can also power the DALI controllers and input devices without internal power supply (including DALI dimmer, DALI panels, DALI groupings, scene controllers). In addition,it can switch to the repeater mode which amplify the DALI signal for DALI line extending.

It is fully compliant with IEC62386-101 DALI standard, EN55015.EN61547 and EN61000-3-2, 3. Universal input from 100 to 240VAC allows it  to be used anywhere in the world, and certified to Class II, providing perfect solutions for DALI control system.

Features

• DALI power supply and DALI repeater 2in1 design
• For supplying 220 mA for DALI devices or control modules without their own power supplies
• For amplifying the DALI signal
• Total max. supply power for DALI line of 64 control gears

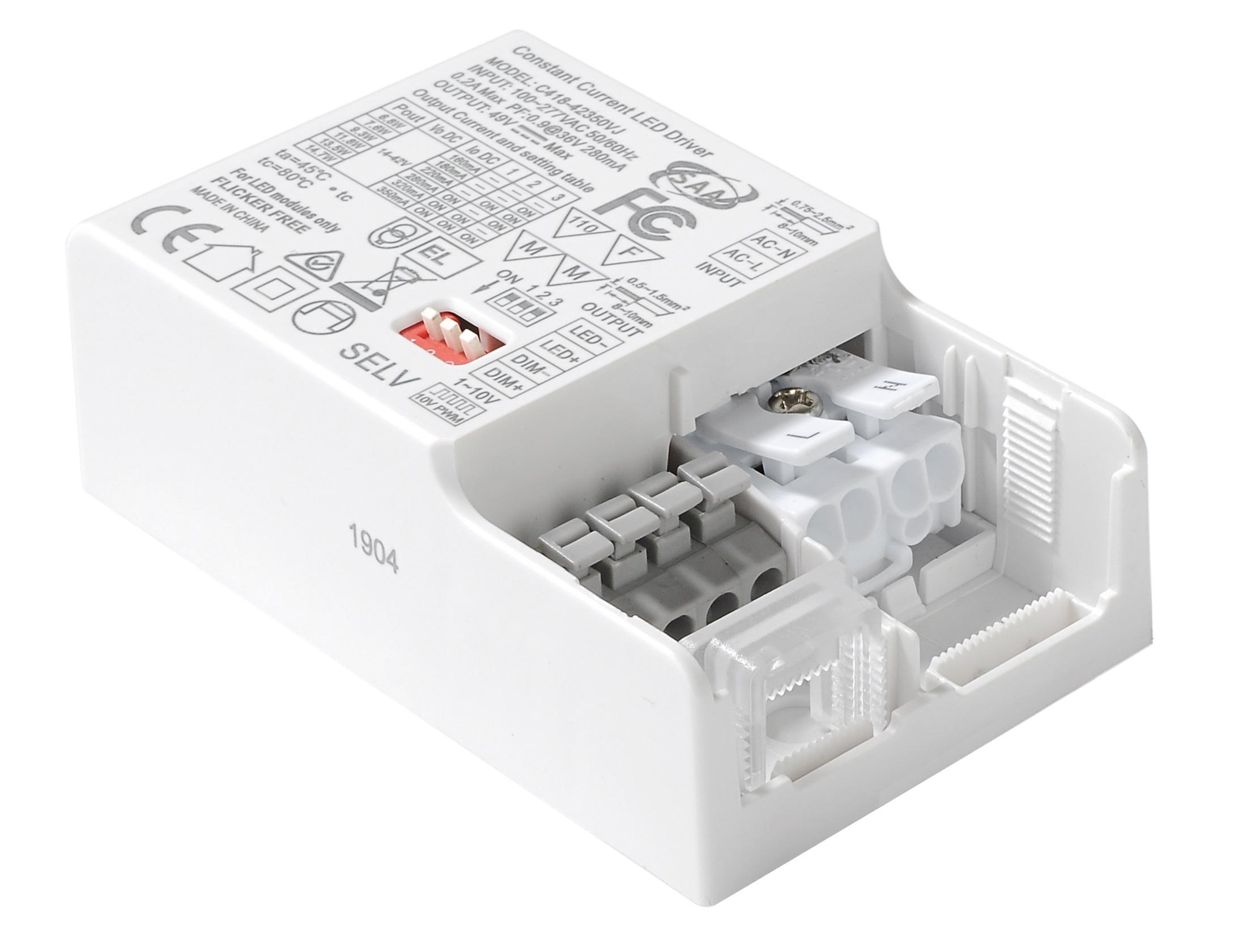

• Push terminals for easy wiring, and with L,N looping function
• IEC-62386 compliant
• Operating temperature ¹: -20°C ~ +45°C, the humidity: 20% ~ 85%
• Five-year factory guarantee and lifetime technical support

Benefits

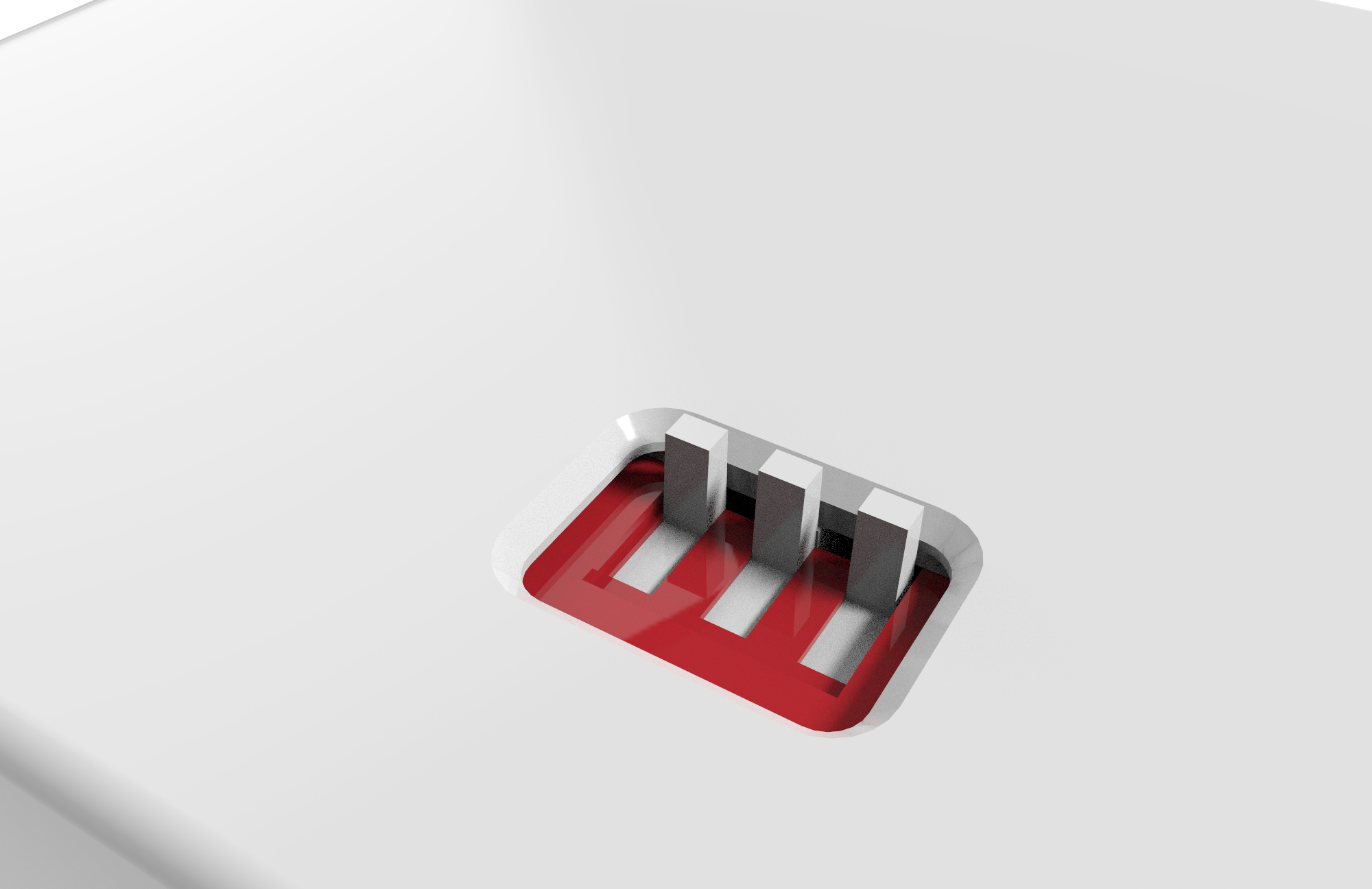

• Adjustable output current for less inventory
• Energy savings due to standby power<0.5W
• Flicker free with less than 3% flicker percentage
• Through wiring
• Quick and easy installation
• Min. cut-out hole diameter 80mm for recessed downlights

Connection Interfaces

• DALI DT6, Push-DIM
• Strain relief with through wiring function
• Terminal blocks: pus- fit terminals

Protection Functions

• Over current
• Over voltage
• Short circuit
• Over temperature

Application

For spot light and downlight in residential,retail and hospitality applications

Benefits

• Less inventory thanks to the versatile 2in1 design
• Easier installation
• No load and standby power consumption<0.50W

Connection Interface

• DALI Interface
• With push-fit terminals

Protection

• Short Circuit,
• Over temperature protection,
• Class II power supply,
• Complaint with Safety Extra Low Voltage standard
• Maximum supply current < 250 mA
