DC/AC Aluminium Cooler Exhaust Cross Flow Tangential Brushless Fan 30190
Production Lead Time:
7 day(s)
Shipping Method:
By sea, land and air
Description
Contact Supplier
Description

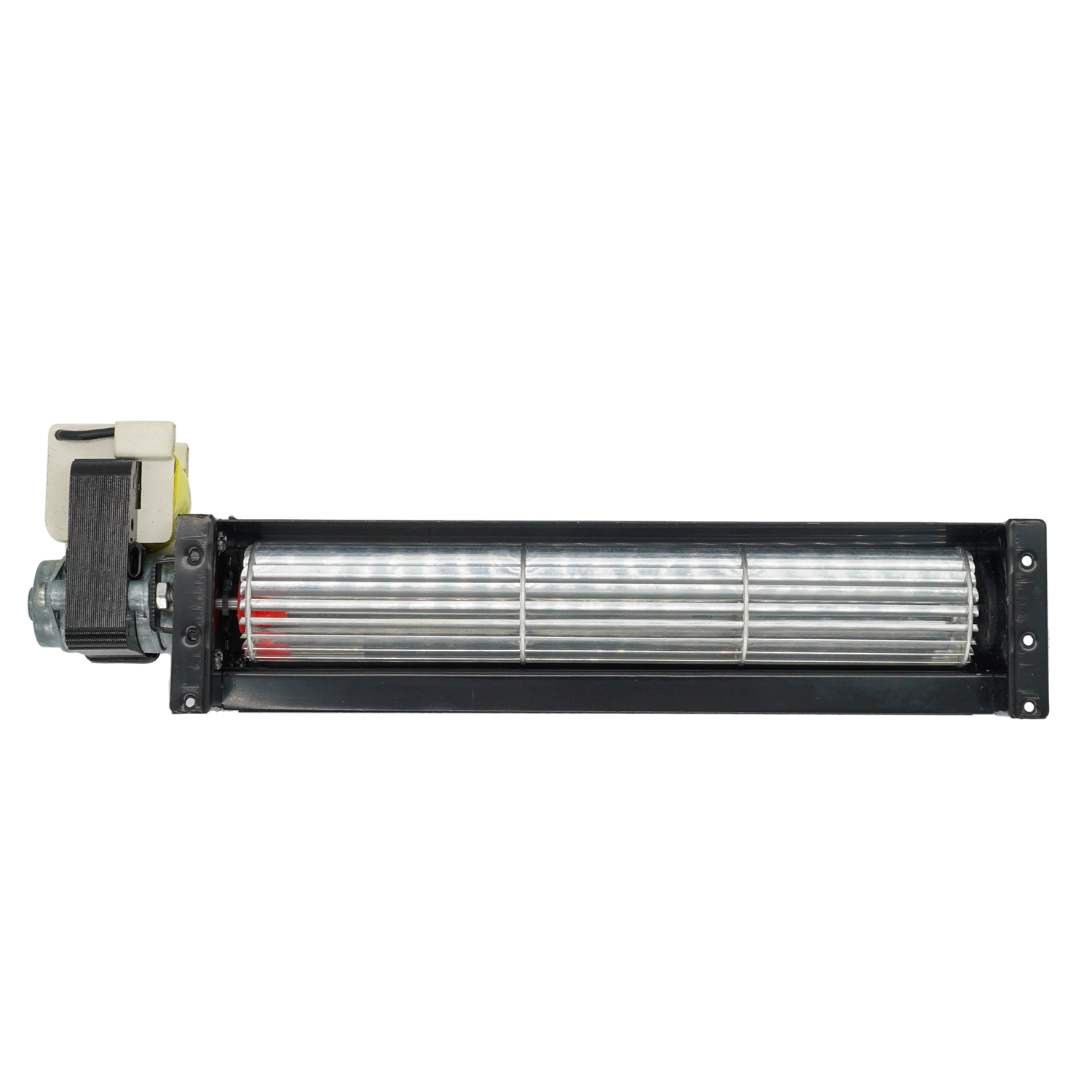

DC Cross Flow Fan 210x190x30mm
General Specification:
Frame:Cold Rolled Steel
Impeller:Aluminium Alloy
Operating Temperature:-10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing
Impeller:Aluminium Alloy
Operating Temperature:-10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing
More Models
| Type | Model | Size | Type | Model | Size |
| DC Crossflow Fan | F25090 | 109x90x25mm | AC Crossflow Fan | F30190 | 210x190x30mm |
| F30090 | 108x90x30mm | F30290 | 310x290x30mm | ||
| F30090(PBT) | 108x90x30mm | F60180 | 200x180x60mm | ||
| F30150 | 168x150x30mm | F60240 | 260x240x60mm | ||
| F30190 | 210x190x30mm | F60300 | 320x300x60mm | ||
| F30250 | 270x250x30mm | ||||
| F30290 | 310x290x30mm | ||||
| F40150 | 170x150x40mm | ||||
| F40300 | 320x300x40mm | ||||
| F50100 | 132x90x50mm | ||||
| F50200 | 263x200x50mm |
Application
