• Inverter output wave form: pure sine wave.
• LED indicators showing power and fault.
• DC/AC isolated.
• Pre-slotted mounting plate.
• Over-voltage shut down.
• Low-voltage alarm.
• Low-voltage shut down.
• Over-temperature shut down.
• Output short-circuit protection.
• DC reverse polarity protection by fuse.
• Cooling: thermal fan.

Advantages of our inverters:

• Inside transformer with high quality ferrite core, which takes high efficiency to our inverters.
• PCB assembling is SMD in stead of hand-made.
• World-brand key components (MOSFET, IGBT etc.) ensure the units working stable.
• Specialized PCB design, reasonable product construction makes the units with less electro magnetic interference and more reliability.
• Good loading ability by special micro-processor design.

Technical data:

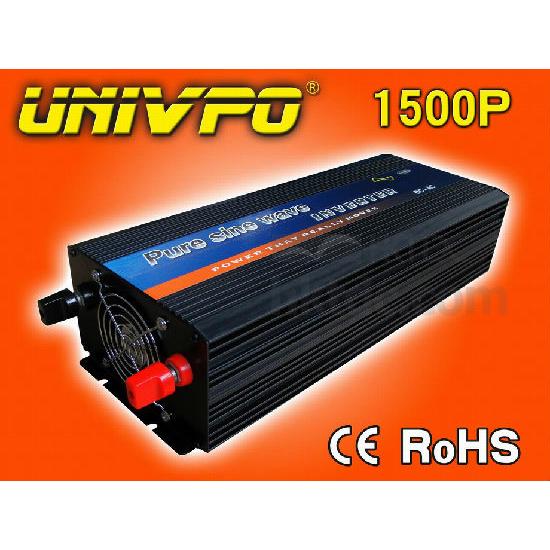

• Model: UNIV-1500P.

Input:

• DC voltage: 12V or 24V or 48V.
• Voltage range: 10-15V DC or 21-30V DC or 42-60V DC.
• No load current draw: <0.9A.
• Efficiency: >89%.
• DC connector: cables with clips or car adaptor.

Output:

• AC voltage: 100/110/120V AC or 220/230/240V AC.
• Continuous power: 1500W.
• Surge power: 3000W.
• Waveform: pure sine wave.
• Frequency: 50Hz or 60Hz.
• AC regulation: 3%.

Protection:

• Low voltage alarm: 10V DC±0.5V or 20.5V DC±1V or 44V DC±1V or 100V DC±1V.
• Low voltage shut down: 9.5V DC±0.5V or 19.5V DC±1V or 42V DC±1V or 96V DC±5V.
• Over load: shut off output.
• Over voltage shut down: 15.5V or 30.5V or 61.2V or 120V.
• Over thermal: shut off output automatically.
• Fuses: short circuit.

Environment:

• Working temperature: between -10°C and +50°C.
• Working humidity: 20%~90% RH non-condensing.
• Storage temperature: between -30°C and +70°C.

Package:

• Machine size (mm): 375 x 150 x 88.
• Packing size (mm): 490 x 410 x 290.
• Net weight (kg): 3.5.
• Gross weight (kg): 4.5.
• Packing mode: carton.

Other:

• Start: soft start.
• Style of cooling: thermal fan.
• Applications: home and office appliances, power tools and portable.
