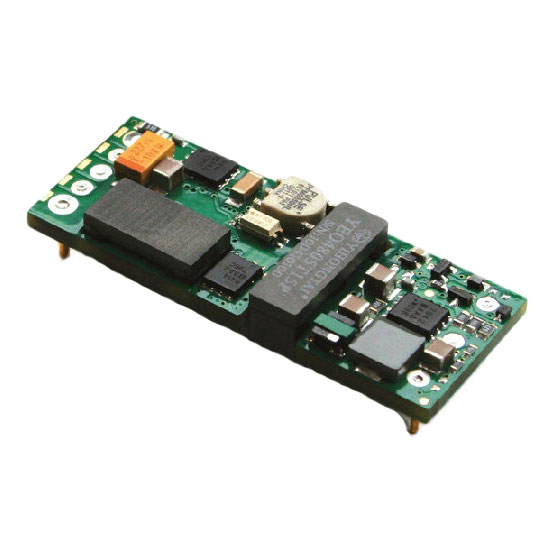

This is a DC converter with an open frame. It is equipped with high-precision components for excellent performance. This well-made converter is suitable for assorted electrical products.

• With output.
• Input voltage range: 36 to 75V.
• Output voltage: 1.0, 1.2, 1.8, 2.5, 3.3, 5, and 12V.
• Set point accuracy: ±2.
• Trim range: ±10.
• Line regulation: ± 0.3.
• Load regulation: ±0.5.
• Dynamic response: 5.
• VoPk deviation: 50 to 75.
• Setting time: 50 to 25.
• Ripple and noise: typical 150mVp-p and measured at 20MHz.
• Temperature co-efficient: ±0.02.
• Isolation voltage: 1,500V DC/1min/0.5mA input-output.
• Switching frequency: 400kHz.
• MTBF: 1.5 x 10Λ 6h Bellcore TR332, 25°C.
• Base plate temperature: -40 to 85°C.
• Protection: input under-voltage protection.
• Output over-voltage protection.
• Output over-current protection.
• Over-temperature protection.
• Output short-circuit protection: continuous and automatic recovery.
• Size of the eighth brick: 57.9 x 22.7 x 11.0mm.
• Certification: TUV and RoHS.
