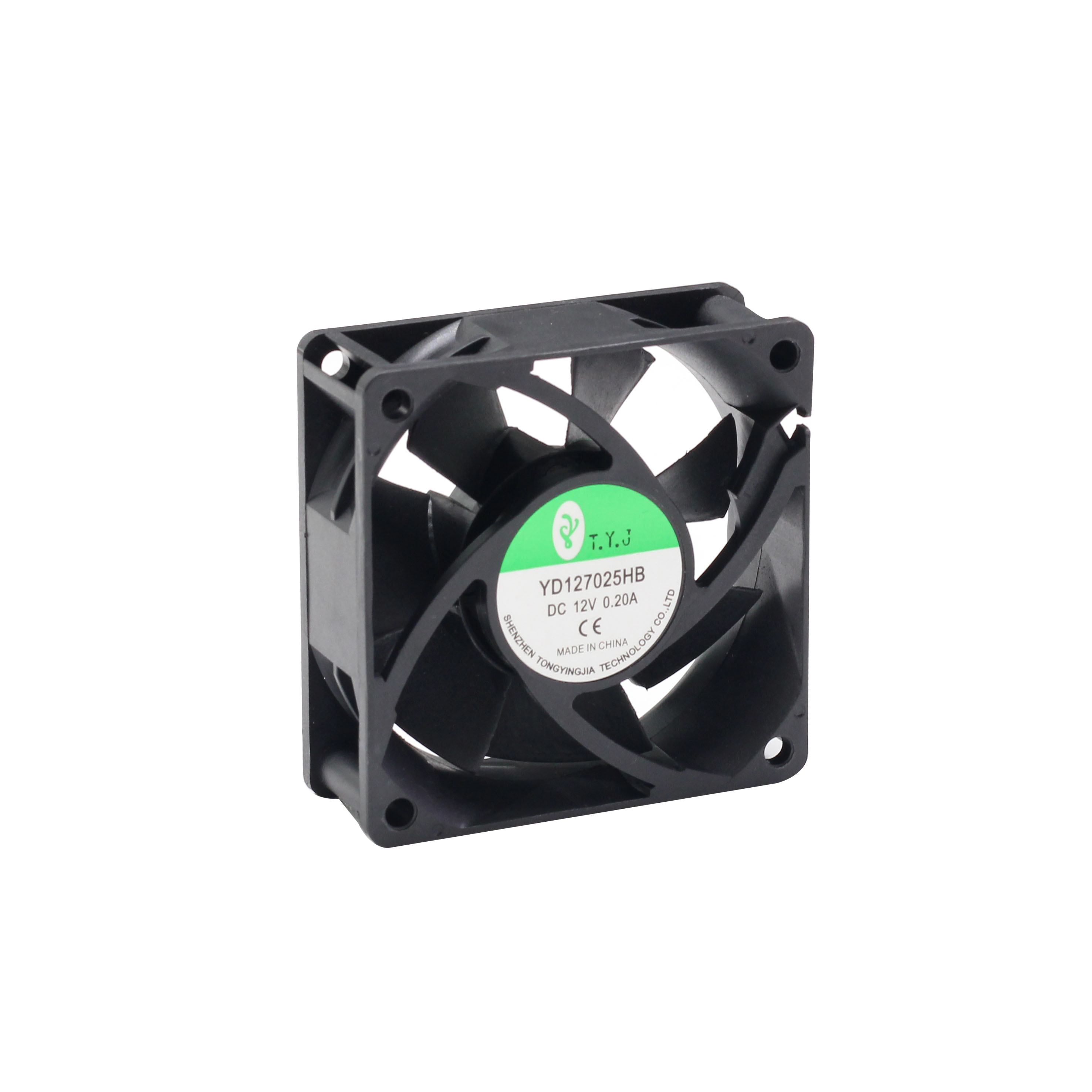

DC Cooling Fan 70 x 70 x25mm
Production Lead Time:
10 day(s)
Model No.:
YD127025HB
Brand:
TYJ
Colour:
Black
Size:
70 x70 x 25mm
Customised:
Yes
Blade Material:
PBT UL94V-0
Electric Current Type:
DC
Speed:
4000RPM
Air Volume:
40.32CFM
Description
Contact Supplier
Description
70*70*25mm DC FAN
★General Specification(一般规格）
☆Material:
Frame And Lmpeller:Thermal Plastic UL 94V-0
☆Lead Wires:UL Type
RED Wire Positive(+)
BLACK Wire Negative(-)
☆Insulation Resistance:10MΩ Or Over With a
DC250V Megger
☆Dielectric Withstand Voltage:AC500V 1S
☆Allowable Ambient Temperature Range:
-10℃～+70℃(Operation)
-40℃～+70℃(Storage)
- Samples delivery time: 3-5 working days
- Order delivery time:10-20 working days
- Function:FG,RD,PWM can be choice
- Waterproof:IP44 to IP68
- Size:20mm to 300mm
- Voltage: 5V/12V/24V/48V/110V/220V etc
- AC FAN, DC FAN, Blower Fan, Cross flow Fan, EC Fan etc.
- 24 years of experience in cooling fan industry !
- CE,UL,CCC etc approve
| ★Specifications(规格） | ||||||||||
| Model | Bearing | Rated | Operation | Current | Input | Speed | Air Flow | Static | Niose | Weight |
| System | Voltage | Voltage | power | Pressure | Level | |||||
| (V) | (V) | (A) | (W) | (RPM) | (CFM) | (mm-H2O) | (dB-A) | (g) | ||
| (型号) | (培林) | (电压) | (电压范围) | (电流) | (功率) | (转速) | (风量) | (静压) | (噪音) | (重量) |
| YD127025HSL | 12 | 10.8～13.2 | 0.30 | 3.60 | 4000 | 40.32 | 7.71 | 36.86 | 63 | |
| YD127025MSL | Sleeve | 0.20 | 2.40 | 3400 | 31.53 | 4.95 | 29.49 | 63 | ||
| YD127025LSL | 0.15 | 1.80 | 3000 | 23.72 | 3.10 | 24.84 | 63 | |||
| YD127025HBL | 0.30 | 3.60 | 4000 | 40.32 | 7.71 | 36.86 | 63 | |||
| YD127025MBL | Ball | 0.20 | 2.40 | 3400 | 31.53 | 4.95 | 29.49 | 63 | ||
| YD127025LBL | 0.15 | 1.80 | 3000 | 23.72 | 3.10 | 24.84 | 63 | |||
| YD247025HSL | 24 | 21.6～26.4 | 0.20 | 4.80 | 4000 | 40.32 | 7.71 | 36.86 | 63 | |
| YD247025MSL | Sleeve | 0.11 | 2.64 | 3400 | 31.53 | 4.95 | 29.49 | 63 | ||
| YD247025LSL | 0.08 | 1.92 | 3000 | 23.72 | 3.10 | 24.84 | 63 | |||
| YD247025HBL | 0.20 | 4.80 | 4000 | 40.32 | 7.71 | 36.86 | 63 | |||
| YD247025MBL | Ball | 0.11 | 2.64 | 3400 | 31.53 | 4.95 | 29.49 | 63 | ||
| YD247025LBL | 0.08 | 1.92 | 3000 | 23.72 | 3.10 | 24.84 | 63 | |||
