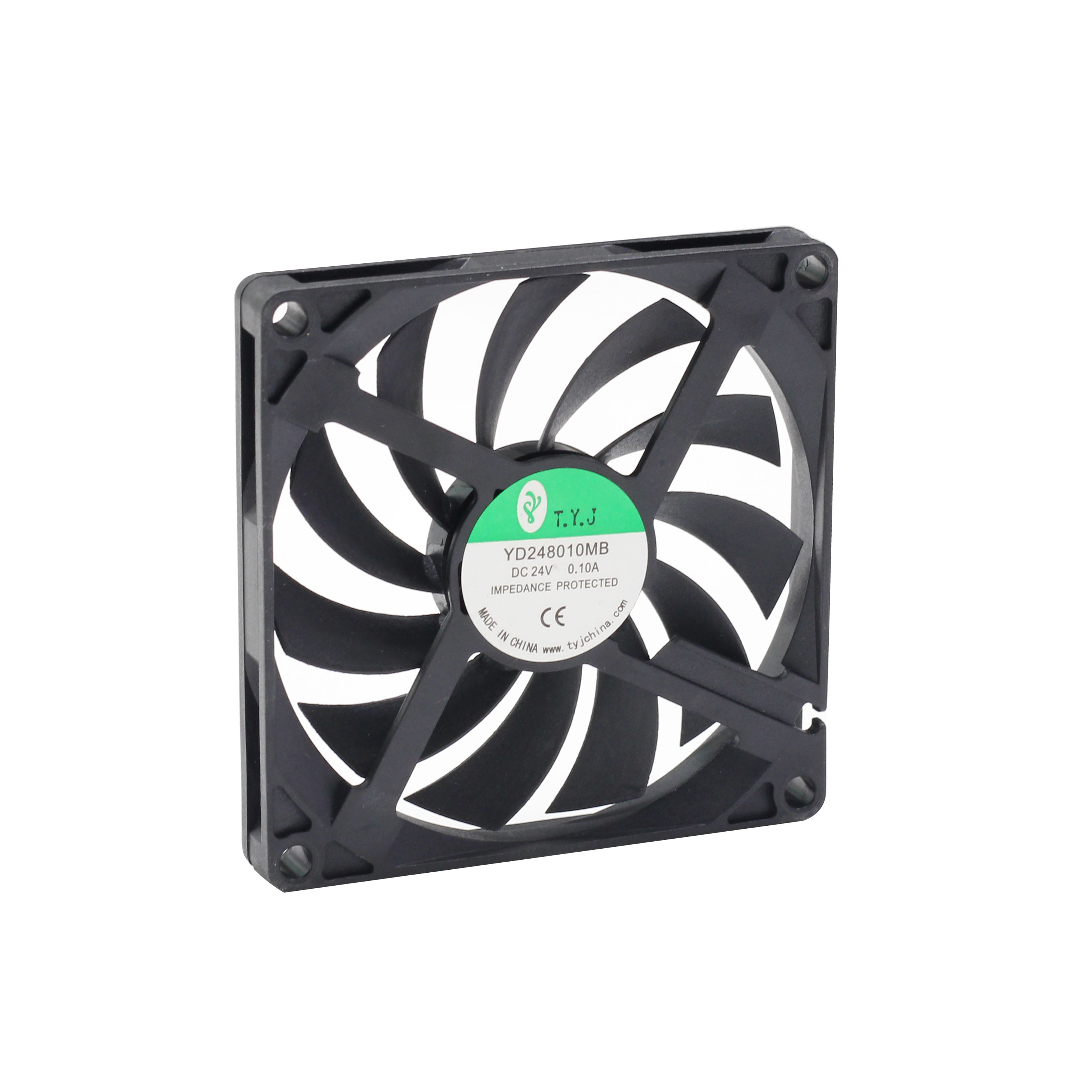

DC Cooling Fan 80 x 80 x 10mm
Production Lead Time:
10 day(s)
Model No.:
YD248010MB
Brand:
TYJ
Colour:
Black
Size:
80 x80 x 10mm
Customised:
Yes
Blade Material:
PBT UL94V-0
Electric Current Type:
DC
Speed:
3000RPM
Air Volume:
23.45CFM
Description
Contact Supplier
Description
80*80*10mm DC FAN
★General Specification(一般规格）
☆Material:
Frame And Lmpeller:Thermal Plastic UL 94V-0
☆Lead Wires:UL Type
RED Wire Positive(+)
BLACK Wire Negative(-)
☆Insulation Resistance:10MΩ Or Over With a
DC250V Megger
☆Dielectric Withstand Voltage:AC500V 1S
☆Allowable Ambient Temperature Range:
-10℃～+70℃(Operation)
-40℃～+70℃(Storage)
- CE,UL, CCC etc approve
- Samples delivery time: 3-5 working days
- Order delivery time:10-20 working days
- Function:FG,RD,PWM can be choice
- Waterproof:IP44 to IP68
- Size:20mm to 300mm
- Voltage: 5V/12V/24V/48V/110V/220V etc
- AC FAN, DC FAN, Blower Fan, Cross flow Fan, EC Fan etc.
- 24 years of experience in cooling fan industry !
-40℃～+70℃(Storage)
| ★Specifications(规格） | ||||||||||
| Model | Bearing | Rated | Operation | Current | Input | Speed | Air Flow | Static | Niose | Weight |
| System | Voltage | Voltage | power | Pressure | Level | |||||
| (V) | (V) | (A) | (W) | (RPM) | (CFM) | (mm-H2O) | (dB-A) | (g) | ||
| (型号) | (培林) | (电压) | (电压范围) | (电流) | (功率) | (转速) | (风量) | (静压) | (噪音) | (重量) |
| YD058010HSL | 5 | 10.8～13.2 | 0.35 | 1.75 | 3000 | 23.45 | 1.81 | 30.75 | 43 | |
| YD058010MSL | Sleeve | 0.25 | 1.25 | 2500 | 19.68 | 1.31 | 26.25 | 43 | ||
| YD058010LSL | 0.17 | 0.85 | 2000 | 15.58 | 0.09 | 22.08 | 43 | |||
| YD058010HBL | 0.35 | 1.75 | 3000 | 23.45 | 1.81 | 30.75 | 43 | |||
| YD058010MBL | Ball | 0.25 | 1.25 | 2500 | 19.68 | 1.31 | 26.25 | 43 | ||
| YD058010LBL | 0.17 | 0.85 | 2000 | 15.58 | 0.09 | 22.08 | 43 | |||
| YD128010HSL | 12 | 21.6～26.4 | 0.24 | 2.88 | 3000 | 23.45 | 1.81 | 30.75 | 43 | |
| YD128010MSL | Sleeve | 0.18 | 2.16 | 2500 | 19.68 | 1.31 | 26.25 | 43 | ||
| YD128010LSL | 0.12 | 1.44 | 2000 | 15.58 | 0.09 | 22.08 | 43 | |||
| YD128010HBL | 0.24 | 2.88 | 3000 | 23.45 | 1.81 | 30.75 | 43 | |||
| YD128010MBL | Ball | 0.18 | 2.16 | 2500 | 19.68 | 1.31 | 26.25 | 43 | ||
| YD128010LBL | 0.12 | 1.44 | 2000 | 15.58 | 0.09 | 22.08 | 43 | |||
