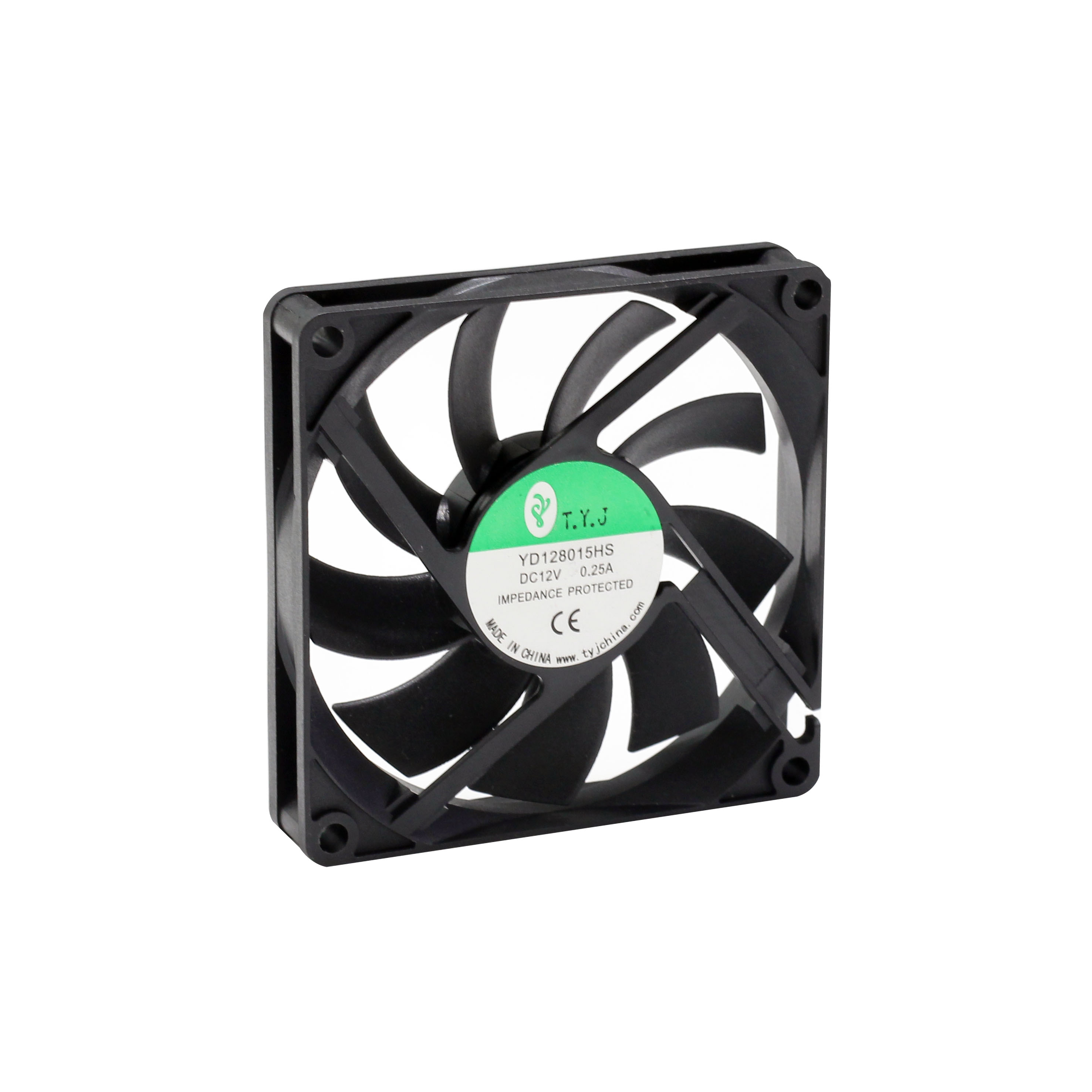

DC Cooling Fan 80 x 80 x15mm
Production Lead Time:
10 day(s)
Model No.:
YD128015HS
Brand:
TYJ
Colour:
Black
Size:
80 x80 x 15mm
Customised:
Yes
Blade Material:
PBT UL94V-0
Electric Current Type:
DC
Speed:
3000RPM
Air Volume:
30.16CFM
Description
Contact Supplier
Description
80*80*15mm DC FAN
★General Specification(一般规格）
☆Material:
Frame And Lmpeller:Thermal Plastic UL 94V-0
☆Lead Wires:UL Type
RED Wire Positive(+)
BLACK Wire Negative(-)
☆Insulation Resistance:10MΩ Or Over With a
DC250V Megger
☆Dielectric Withstand Voltage:AC500V 1S
☆Allowable Ambient Temperature Range:
-10℃～+70℃(Operation)
-40℃～+70℃(Storage)
- Samples delivery time: 3-5 working days
- Order delivery time:10-20 working days
- Function:FG,RD,PWM can be choice
- Waterproof:IP44 to IP68
- Size:20mm to 300mm
- Voltage: 5V/12V/24V/48V/110V/220V etc
- AC FAN, DC FAN, Blower Fan, Cross flow Fan, EC Fan etc.
- 24 years of experience in cooling fan industry !
- CE,UL,CCC etc approve
| ★Specifications(规格） | ||||||||||
| Model | Bearing | Rated | Operation | Current | Input | Speed | Air Flow | Static | Niose | Weight |
| System | Voltage | Voltage | power | Pressure | Level | |||||
| (V) | (V) | (A) | (W) | (RPM) | (CFM) | (mm-H2O) | (dB-A) | (g) | ||
| (型号) | (培林) | (电压) | (电压范围) | (电流) | (功率) | (转速) | (风量) | (静压) | (噪音) | (重量) |
| YD128015HSL | 12 | 10.8～13.2 | 0.17 | 2.04 | 3000 | 30.16 | 2.38 | 2.38 | 57 | |
| YD128015MSL | Sleeve | 0.12 | 1.44 | 2500 | 24.89 | 1.69 | 1.69 | 57 | ||
| YD128015LSL | 0.08 | 0.96 | 2000 | 18.99 | 1.03 | 1.03 | 57 | |||
| YD158015HBL | 0.17 | 2.04 | 3000 | 30.16 | 2.38 | 2.38 | 57 | |||
| YD128015MBL | Ball | 0.12 | 1.44 | 2500 | 24.89 | 1.69 | 1.69 | 57 | ||
| YD128015LBL | 0.08 | 0.96 | 2000 | 18.99 | 1.03 | 1.03 | 57 | |||
| YD248015HSL | 24 | 21.6～26.4 | 0.11 | 2.64 | 3000 | 30.16 | 2.38 | 2.38 | 57 | |
| YD248015MSL | Sleeve | 0.08 | 1.92 | 2500 | 24.89 | 1.69 | 1.69 | 57 | ||
| YD248015LSL | 0.05 | 1.20 | 2000 | 18.99 | 1.03 | 1.03 | 57 | |||
| YD248015HBL | 0.11 | 2.64 | 3000 | 30.16 | 2.38 | 2.38 | 57 | |||
| YD248015MBL | Ball | 0.08 | 1.92 | 2500 | 24.89 | 1.69 | 1.69 | 57 | ||
| YD248015LBL | 0.05 | 1.20 | 2000 | 18.99 | 1.03 | 1.03 | 57 | |||
