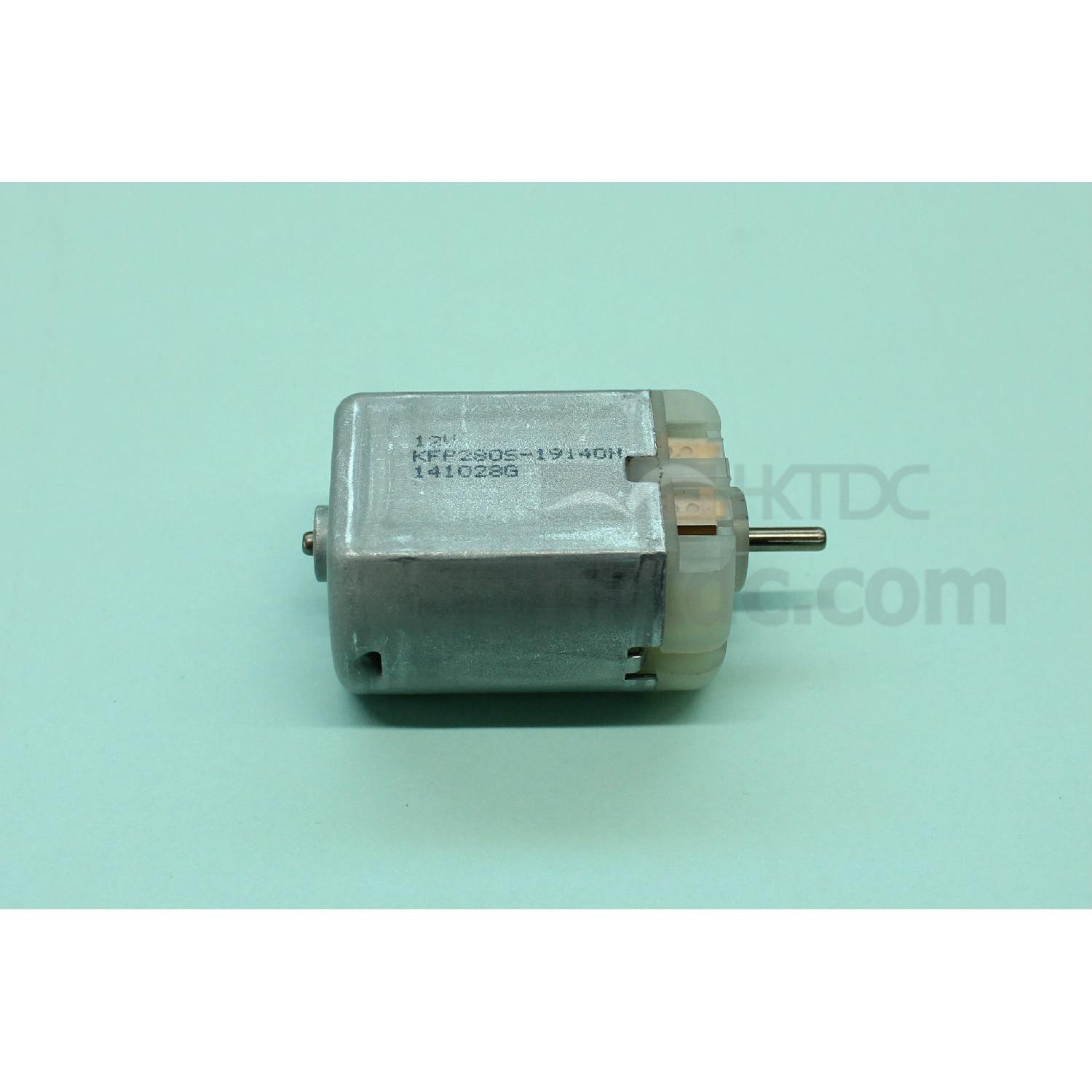

DC Motor
Production Lead Time:
60 day(s)
Model No.:
KFC280
Brand:
KDL
Customised:
Yes
Construction:
Permanent Magnet
Type:
Micro Motor
Description
Contact Supplier
Description
- Typical applications: automotive door lock actuator, rank opener, rearview mirrors, mini fans, massagers, hair clippers, cleaners and toys
- Dimensions: 24.2 x 30.5 x18.3mm
- Shaft (diameter): 2mm
- Model: KFC280S-18165:
- Operating range: 8.0 to 24.0VDC
- Nominal: 12.0V
- At free load:
- Speed: 12,000rpm
- Current: 0.120A
- At maximum efficiency:
- Speed: 10,078rpm
- Current: 0.629A
- Torque: 43.2gcm
- Stall torque: 270gcm
- Stall current: 3.3A
- Model: KFC280S-13300:
- Operating range: 9.0 to 26.8V DC
- Nominal: 24.0V
- At free load:
- Speed: 13150rpm
- Current: 0.070A
- At maximum efficiency:
- Speed: 11,141rpm
- Current: 0.361A
- Torque: 47.4gcm
- Stall torque: 310gcm
- Stall current: 2.0A
- Send us inquiries including specifications for other requirements
