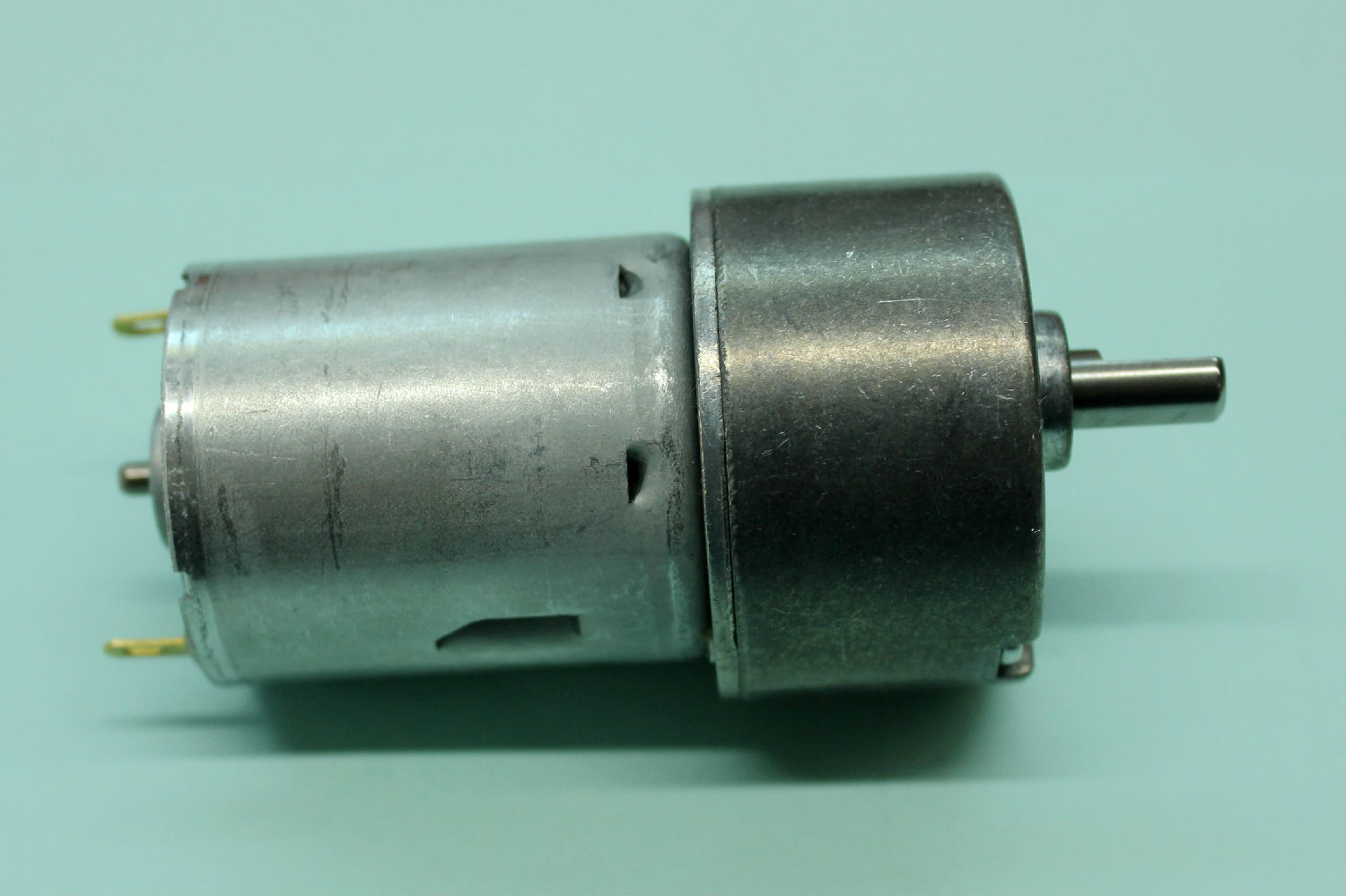

DC Motor
Production Lead Time:
60 day(s)
Model No.:
KR370
Port:
Hong Kong
Customised:
Yes
Construction:
Permanent Magnet
Type:
Micro Motor
Description
Contact Supplier
Description
- Shaft (diameter): 2mm
- Operating voltage range: 1.0 to 3.0V DC
- Nominal voltage: 1.5V
- At free load:Speed: 3,500rpm
- Current: 0.10AAt maximum efficiency:
- Speed: 2,870rpm
- Current: 0.46A T
- orque: 15.23g-cm
- Stall torque: 85g-cm
- Dimensions (D x L): 24.5 x 30.5mm (plastic end cap)
- Dimensions (D x L): 24.4 x 30.8mm (metal end cap)
- Typical applications: automotive air conditioning damper actuators, CD or VCD players, blood pressure meter, air pump
