Features:

• Convenient device to provide coverage for weak and blind DCS mobile signal zones to reduce drop/off calls.
• Utilitarian design with simplistic yet modern appearance.
• Simple installation process.
• Suitable for one or two systems simultaneously.
• Use advanced high linear IF saw filter technology.
• Low consumption, low interference to BTS, high linear design and efficient fashion heat dissipation system.
• Lowers cell phone power emissions and extends GSM phone battery life .
• Use advanced high linear IF saw filter technology.
• ALC can limit output power to ensure stable cell phone signal coverage.
• MCG(Manual Gain Control) function, by 1dB/step to make the 1800 Mhz network signal coverage more flexible.
• Can be controlled and monitored, via RS232 connects to PC for local control, via GSM modem connects to PC for remote control.
• Apply to approximate 120000-520000 square meters coverage.
• Perfect wireless outdoor repeater solution of DCS mobile signal extender.

• Frequency: Uplink (1710-1785MHz), downlink (1805-1880MHz).
• Gain: Uplink(85 ± 2dB), Downlink(90 ± 2dB).
• Output power: uplink (27 ± 2dBm), downlink (40 ± 2dBm).
• Power Consumption: <150W
• Power supply: AC: 220V/50Hz.

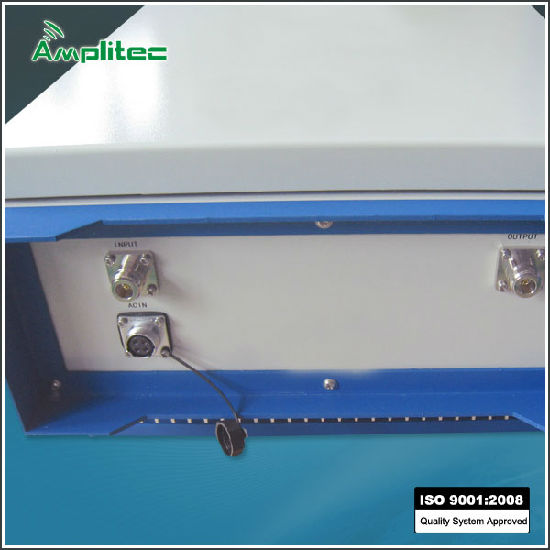

• RF connector: N-Female.
• Weight: ≤40kg.
• Size: 400 x 520 x 214mm.
