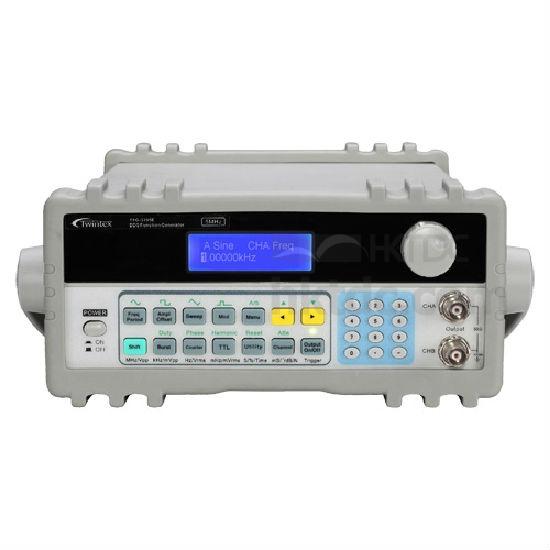

DDS Function Waveform Signal Generator 5MHz 10MHz 15MHz 20MHz
Model No.:
TFG-3205E, TFG-3210E, TFG-3215E, TFG-3220E
Brand:
TWINTEX
Colour:
White
Port:
SHENZHEN
Type of Payment:
L/C, T/T
Minimum Order Quantity:
1 piece(s)
Description
Contact Supplier
Description
- Max. output frequency 5MHz/10MHz/15MHz/20MHz
- 2 output channels
- Direct Digital Synthesis technology (DDS)
- Sampling rate 100MSa/s, vertical resolution 8 bits, waveform length 1024 points
- Min. 1mV (50Ω) waveform output with good stability
- 32 built-in waveforms
- 40 sets panel setting save & recall
- Modulations: FM, FSK, ASK, PSK
- Frequency sweep, amplitude sweep, burst and TTL output functions
- Over voltage protection, over current protection, short circuit protection, reverse voltage protection
- Standard parts: 200MHz frequency counter
- Optional parts: RS-232 interface, power amplifier
