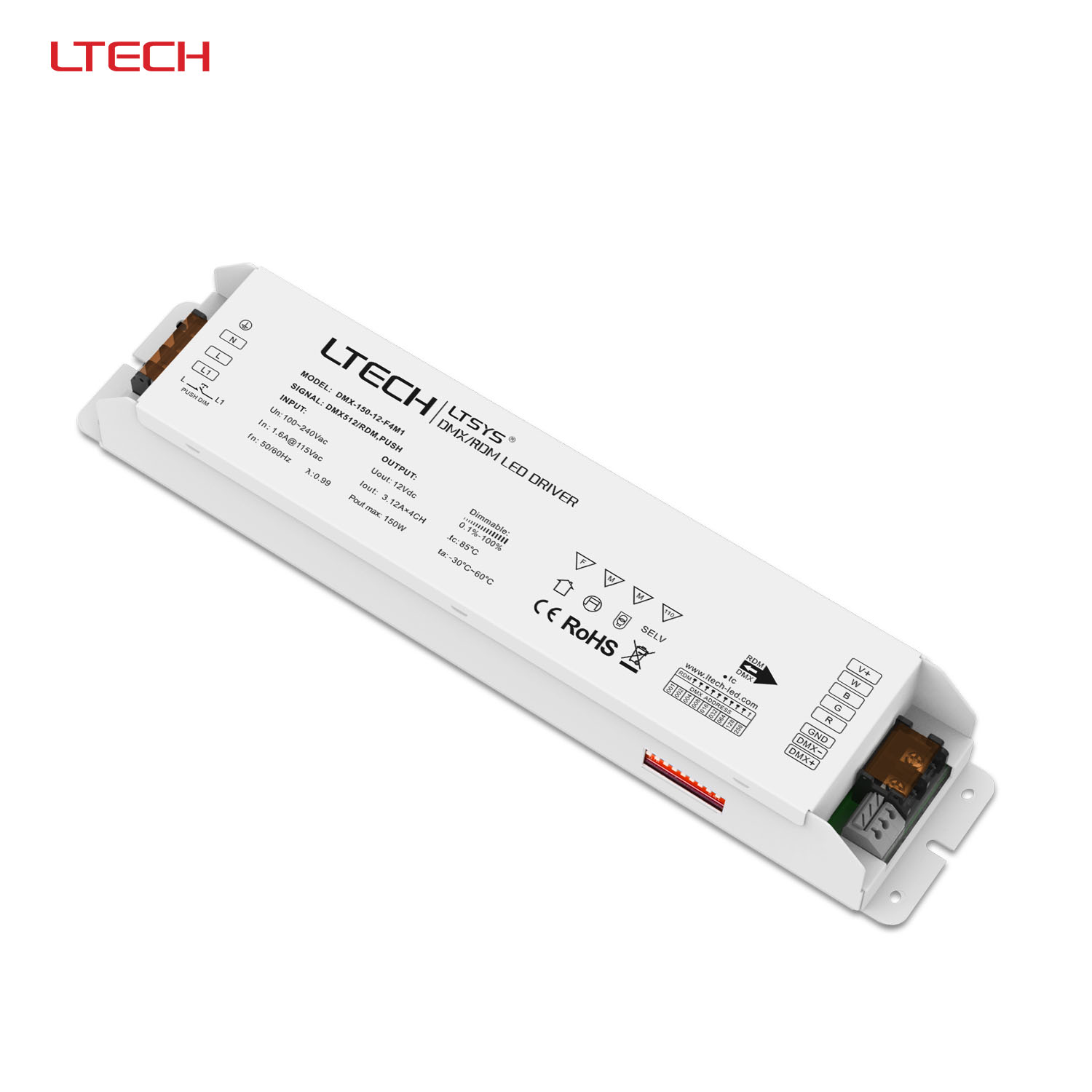

DMX/RDM LED Intelligent Dimming Driver
Model No.:
DMX-150-12-F4M1
Brand:
LTECH
Certification:
CE, EMC, FCC, LVD
Warranty:
3 Years
Description
Contact Supplier
Description
- Fully Digital circuit design, excellent performance and long working life
- PWM digital dimming, maintain the best LED's CRI (color rendering index)
- Standard logarithmic dimming curve, the human eye visual feel more comfortable
- 60000:1 wide
- Dimming range, 0-100% full dimming range
- LED start at 0.1% possible
- Power factor0.99
- Efficiency 86%
- THD(Total Harmonic Distortion)10%
- Short circuit / Over-temperature /Over load protection
- Current consistent in multi LED driver working, balanced light
- Class 2 security isolation power supply
- Compliant with SELV(Safety Extra Low Voltage) standard
- Model: DMX-150-12-F4M1
- Dimming Interface: DMX512 / RDM, Push Dim
- Input Voltage Range: 100-240Vac ±10%
- Power Factor: PF0.99/115Vac , PF0.95/230Vac, at full load
- Efficiency: 91%
- Output Voltage: 12Vdc
- Output Power: Max. 150W
- Input Current: 115Vac=1.6A, 230Vac=0.8A
