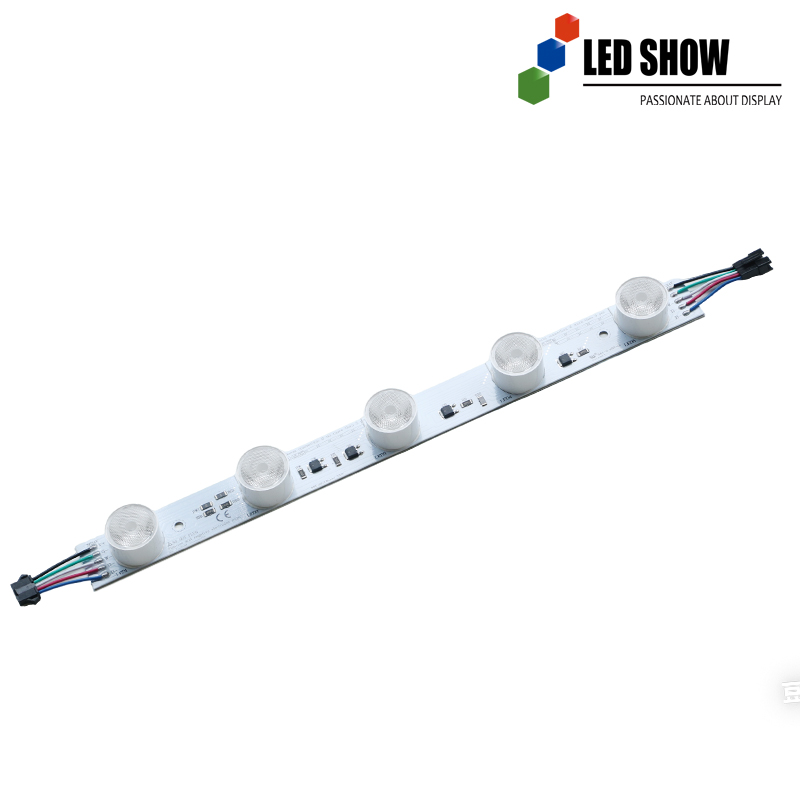

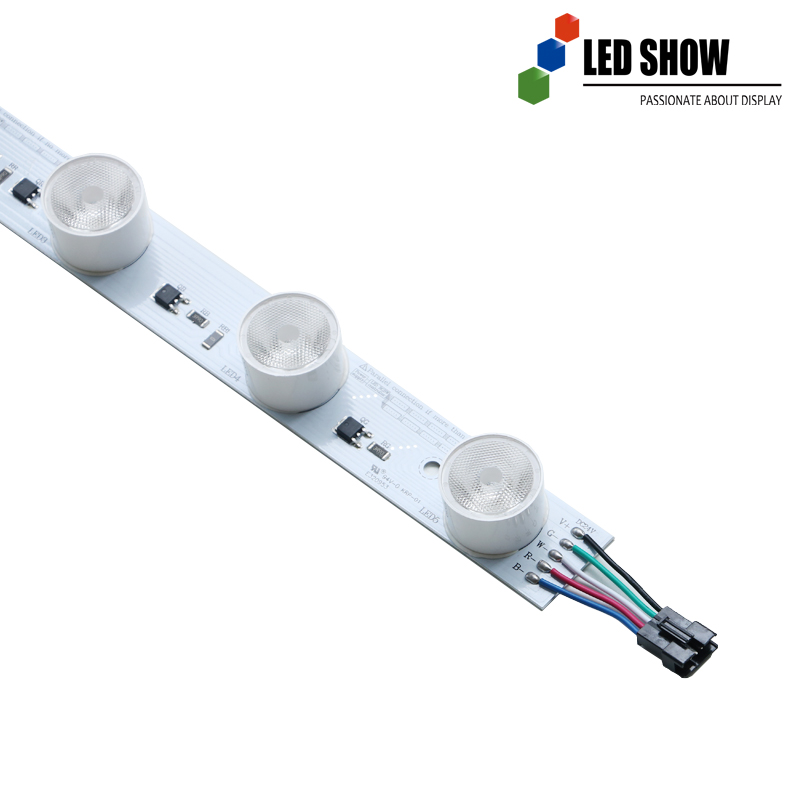

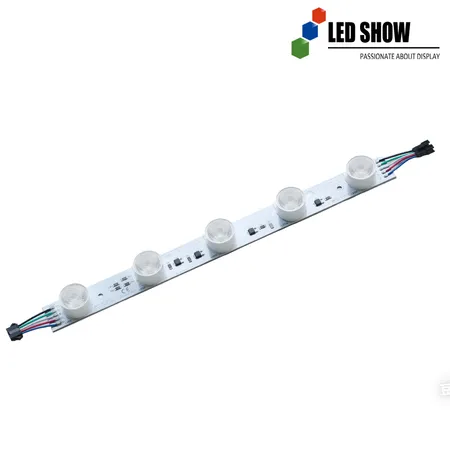

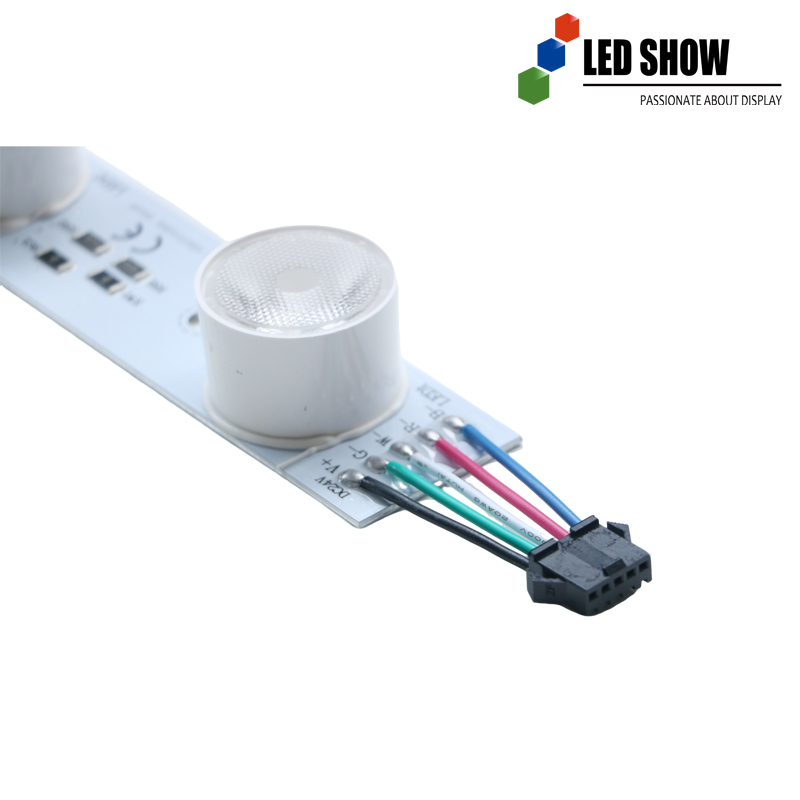

RGBW DMX512 Side-Lit LED Module 24V Dimmable Edge Light for Advertising Light Box 360mm Length



Product Overview：

This high-power RGBW side-lighting LED module supports DMX512 intelligent control, enabling full-color dynamic dimming and scene programming. Designed for premium lighting applications such as advertising light boxes, commercial displays, and interior decoration, it offers even and soft light distribution, easy installation, and excellent cost efficiency.



Key Features:

· Smart Control: DMX512 protocol support for independent RGBW dimming, color fading, dynamic modes, and group control

· High Brightness & Energy Saving: Equipped with Epistar high-quality LEDs, delivering high luminous efficiency (900lm per strip) with low power consumption

· Easy Installation: Standard 360mm length, only 23mm thick, suitable for light boxes with depth ≥80mm and various narrow-edge structures

· Wide Color Temperature Range: Optional white light from 3000K–7000K, pure white and rich RGBW colors to match different scenarios

· Professional Light Distribution: 20°×65° beam angle ensures uniform light spread and excellent side-lighting effect without dark areas



Technical Specifications：

· Dimensions: 360×23×16mm

· Power: 12W

· Voltage: 24V DC

· Luminous Flux: 900lm

· Color: RGBW full color + white light (3000K–7000K optional)

· Control: DMX512 (supports master/slave linking and programmable control)

· Waterproof Rating: IP20 (indoor and protected environments)

· Beam Angle: 20°×65°

· Warranty: 2 years



Applications：

· Advertising light boxes (optimal for width <3m)

· Shop windows, brand signage, display cabinets

· Decorative lighting in airports, bus stations, offices

· Accent lighting in museums and exhibition halls

· Stage backdrops and ambient lighting in entertainment venues



Company Profile





XIAMEN LED SHOW CO.,LTD.

Since: 2012

Specialty: Exhibition lighting solutions and advertising.

Capacity: 50,000 sets/month Advanced Features:

Automatic production lines. Fully guaranteed after-sales service. Smart design of LED display.
