DN25 vacuum valve
Production Lead Time:
10 day(s)
Shipping Method:
AIR
Customised:
Yes
Model No.:
DN25
Application:
Suitable for working media such as high purity gaseous
Description
Contact Supplier
Description

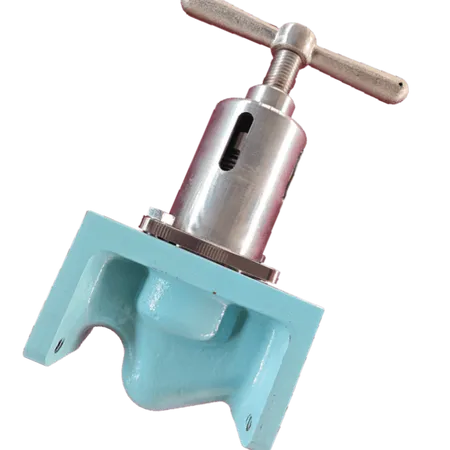

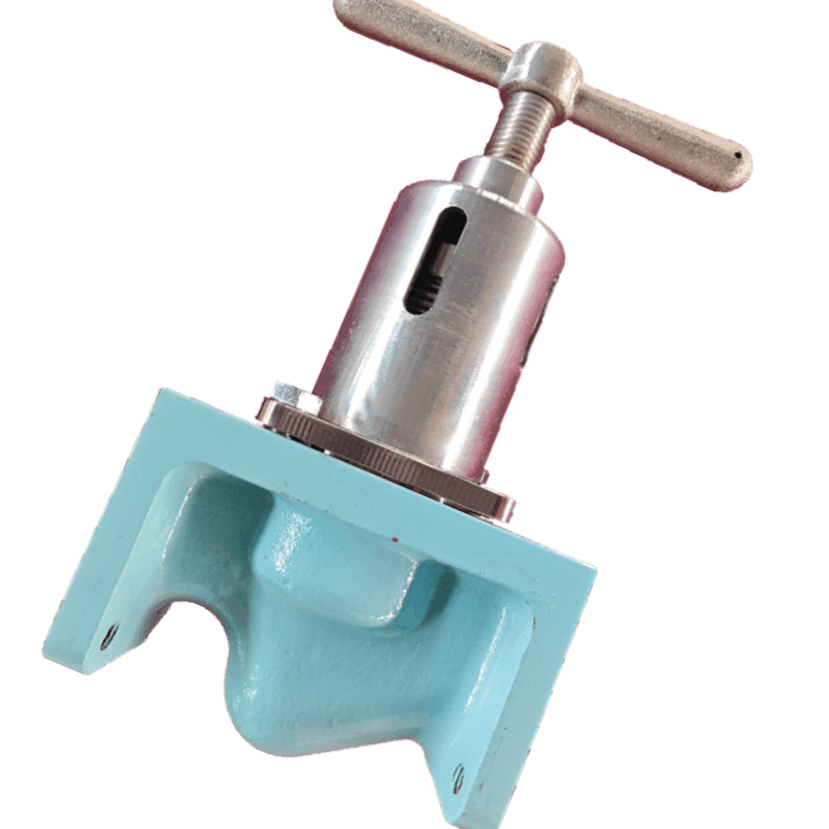

The DN25 vacuum valve is suitable for high-purity gases such as HF etc., with a right angle structure, the valve body is made of 12Cr13 die forgings or stainless steel forgings, and sealed with metal bellows; The internal flow channels are all machined, with stable and reliable performance, and easy operation.
PARAMETERS:
| Model | DN10 |
| Seat diameter size | 10mm |
| Max. working pressure | 0.1 MPa |
| Temperature range | -30℃～100℃ |
| Vacuum degree | 1×10-3mmHg |
| Leak rate | internal：＜1.33×10-5Pa·L/s external：＜1.33×10-6Pa·L/s |
MAIN COMPONENT MARERIALS:
12Cr13/321
OPTIONS:
Electrochemical polishing
Cleanroom assembly (Class 100 cleanroom)
