DPDT 2 Way 15A Electric Toggle Switch
Model No.:
T700
Brand:
TOOWEI
Colour:
Brown, Black
Package:
Yes
Customised:
Yes
Max. Voltage:
250VAC
Operating Temperature:
-25 c to +80 c
Max. Current:
20A
Mechanical Life:
50000 Cycles, 50000 times
Max. Working Pressure:
24N
Description
Contact Supplier
Description

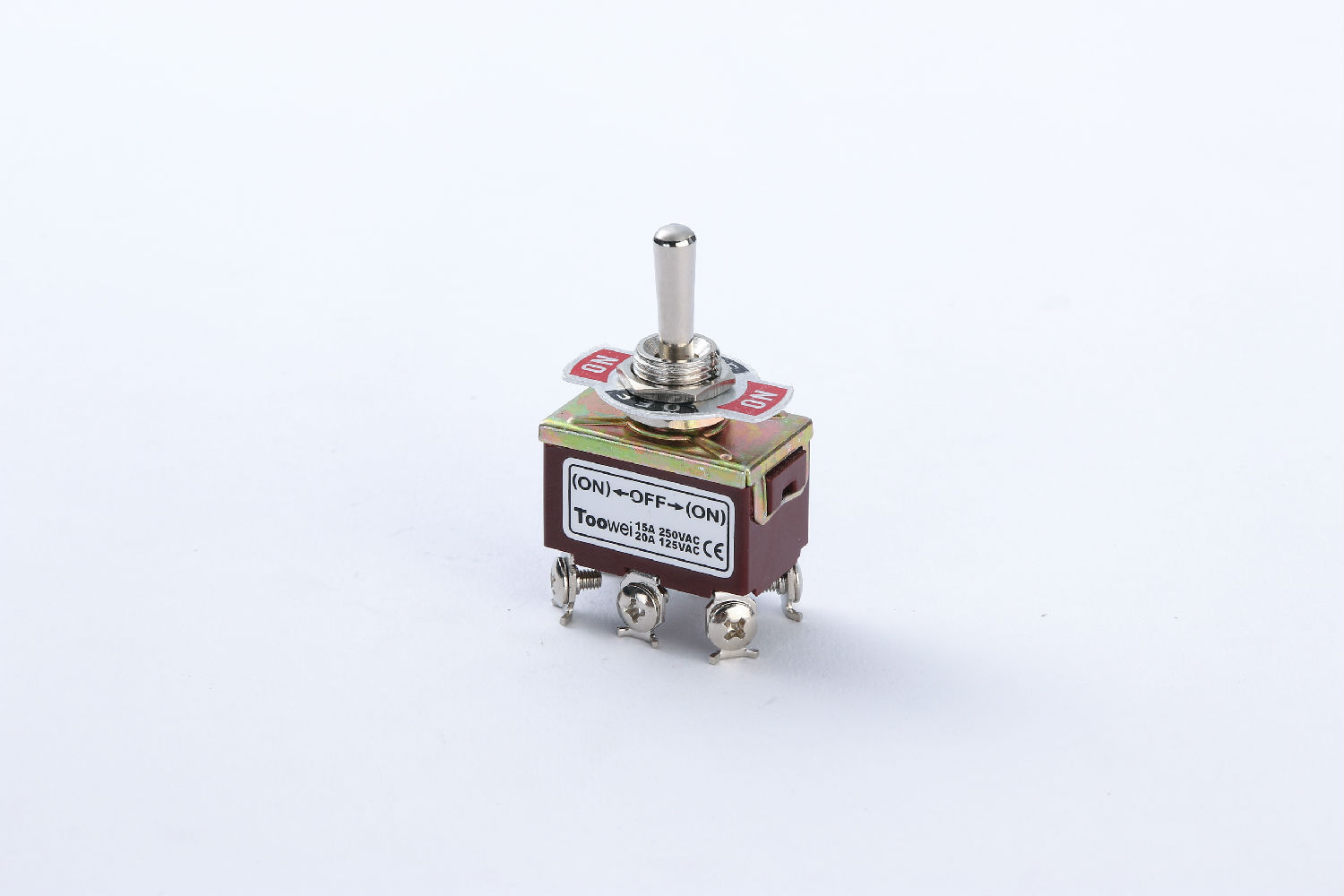

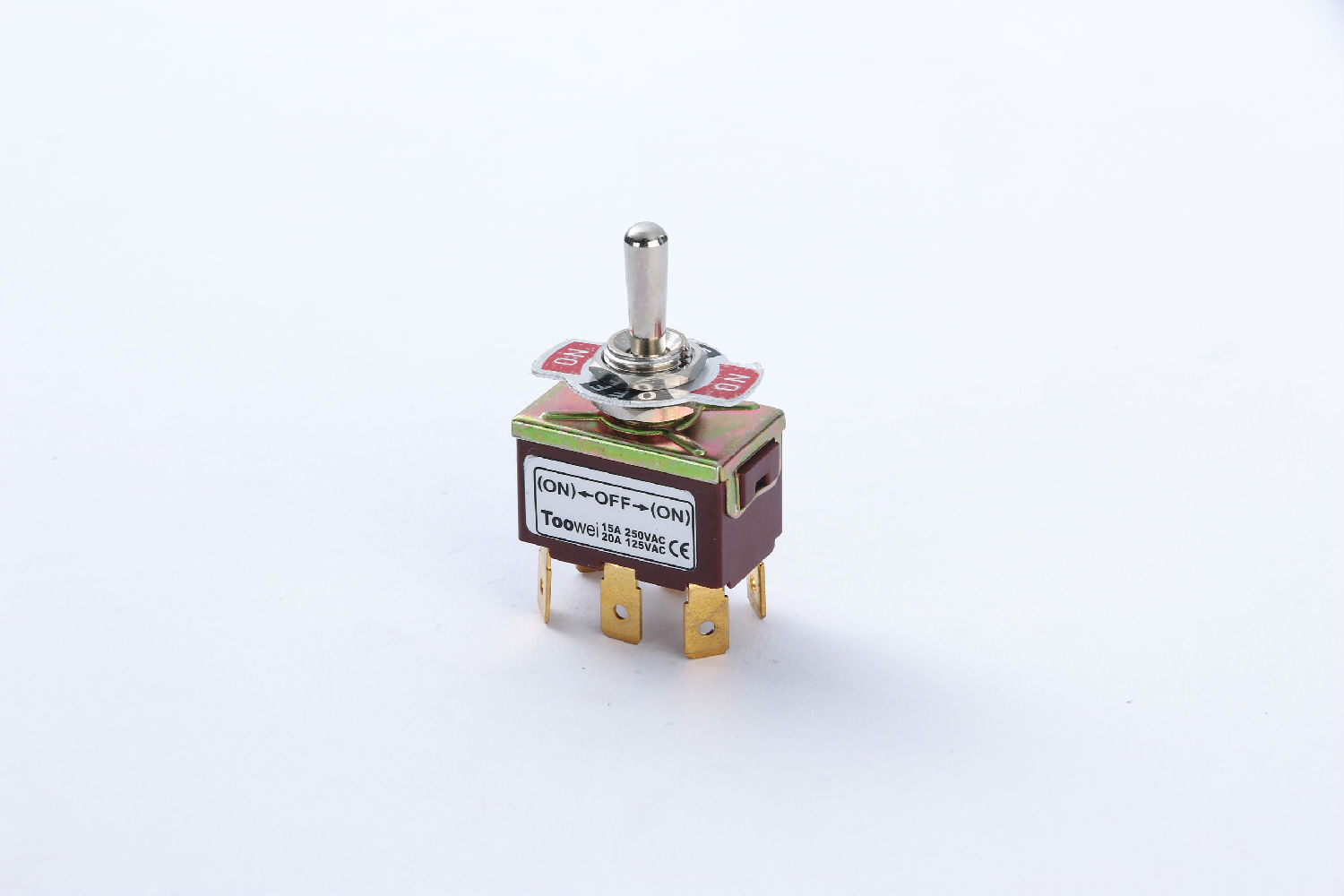

- Factory Supply DPDT 2 Way 15A Electric Toggle Switch 6 pin
- Rating value :15A 250VAC 20A 125VAC
- Mechanical life:≥50,000 times
- Electrical life:≥20,000 times
- Contact resistance :<50MΩ
- Insulation resistance:≥100MΩ
- Withstand Voltage:1000V 50/60Hz last for 1min
- Ambient temperature :-25°c~+80°c
- Vibration:10~55Hz 1.5mm Double Amplitude
- Operating force:≤24N
- Dimensions:Diameter:Φ12.0mm+0.2
- Installation:Bushing mount
- Waterproof grade:need with waterproof cap
