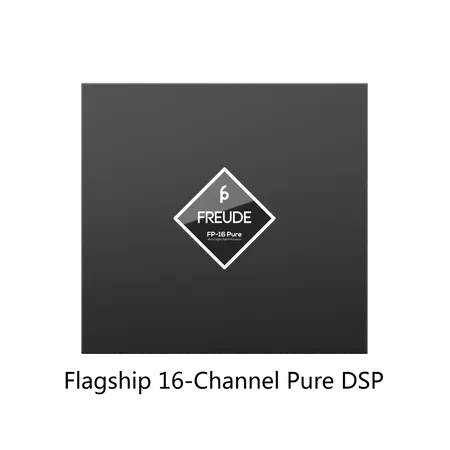

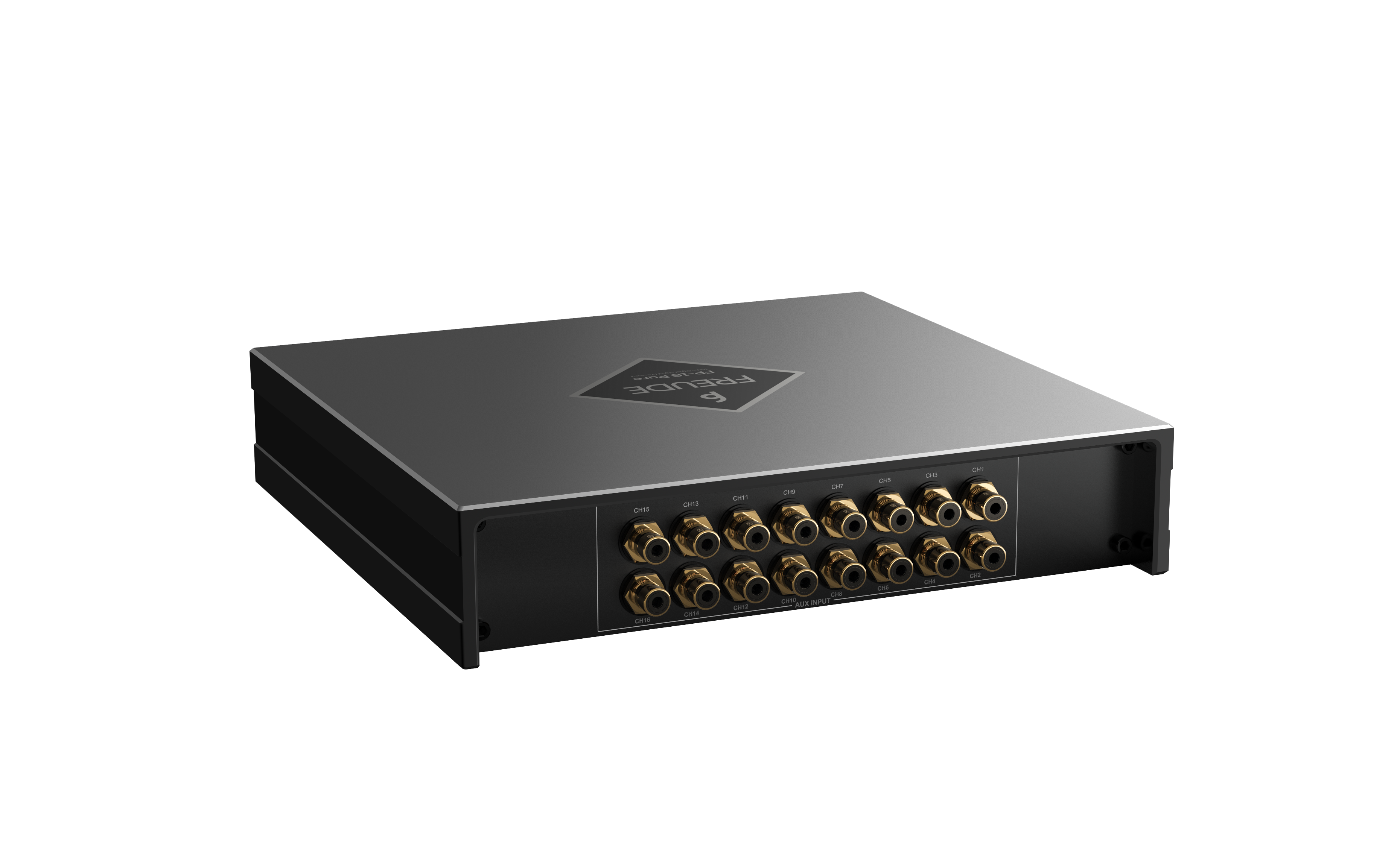

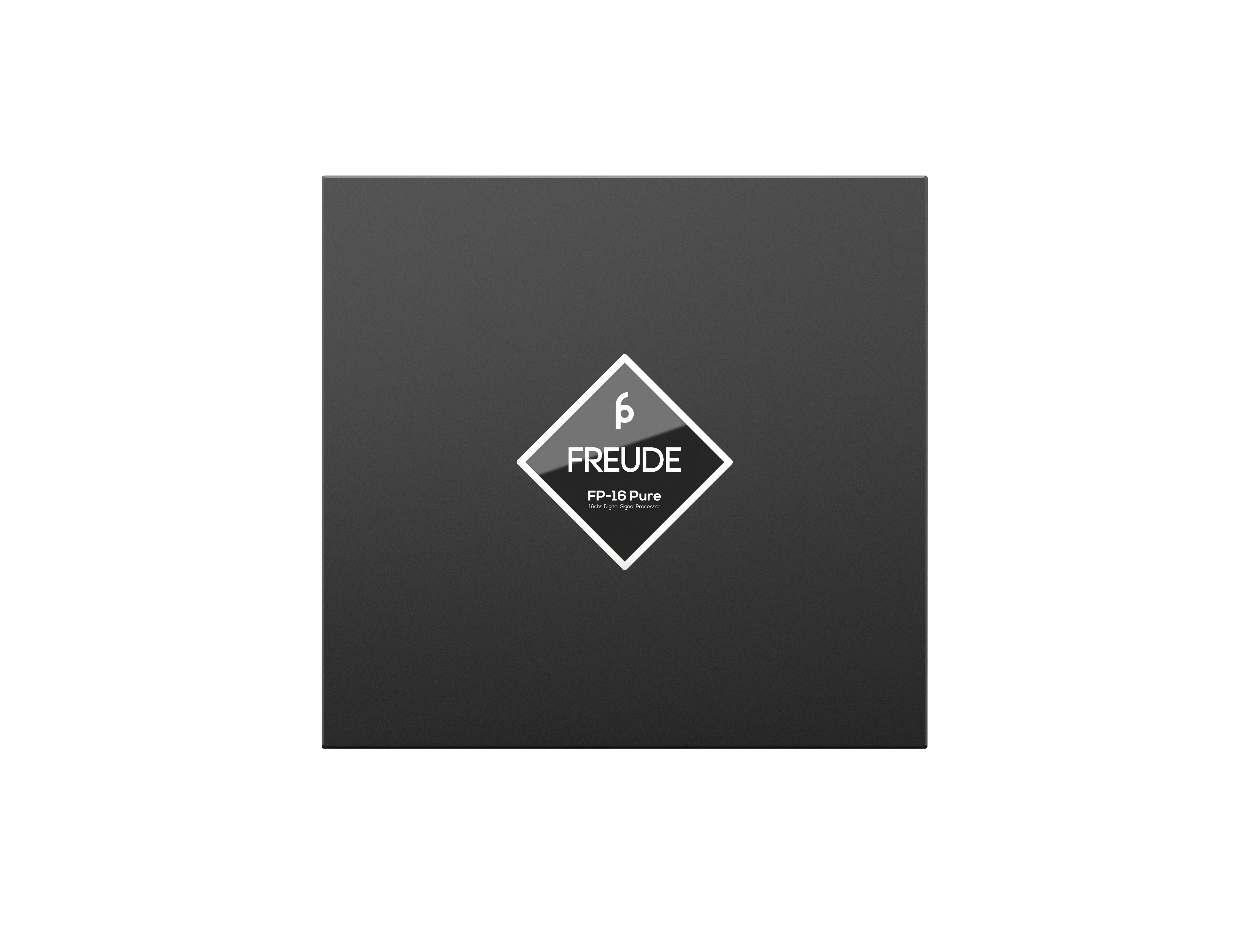

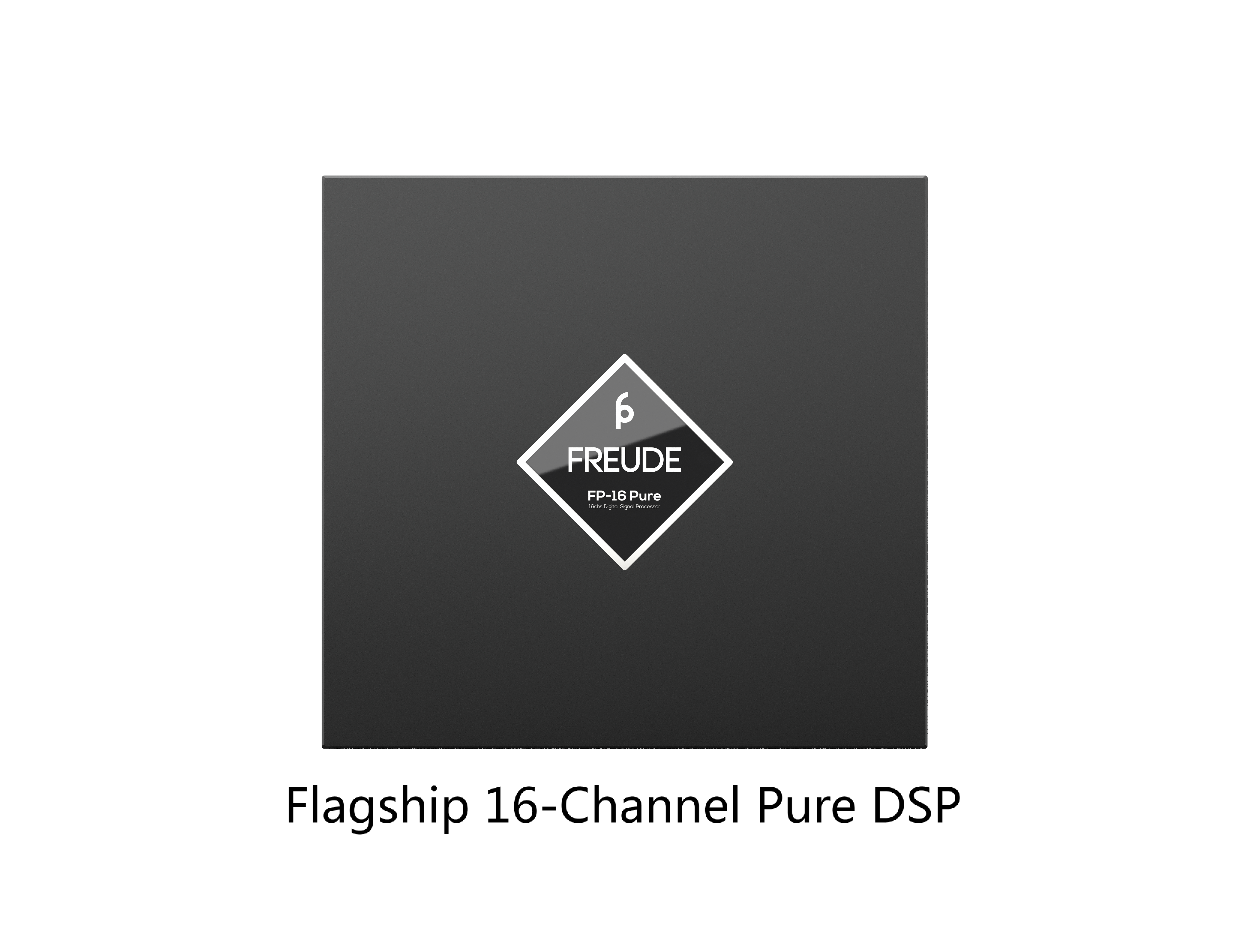

FP-16 Pure

16ch Professional DSP

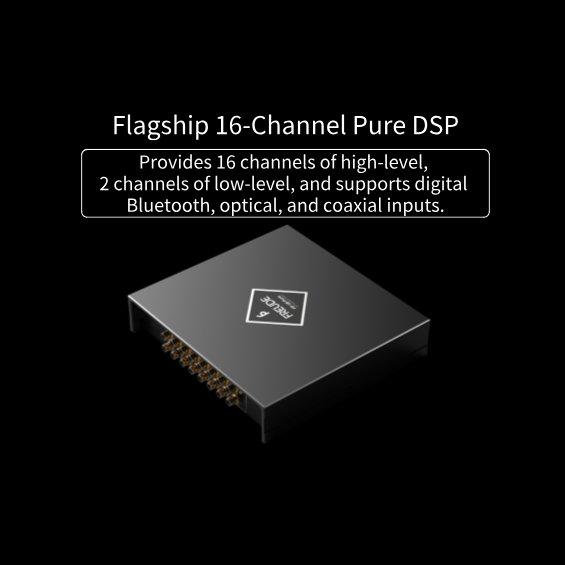

■ 16-Channel Professional Pure DSP

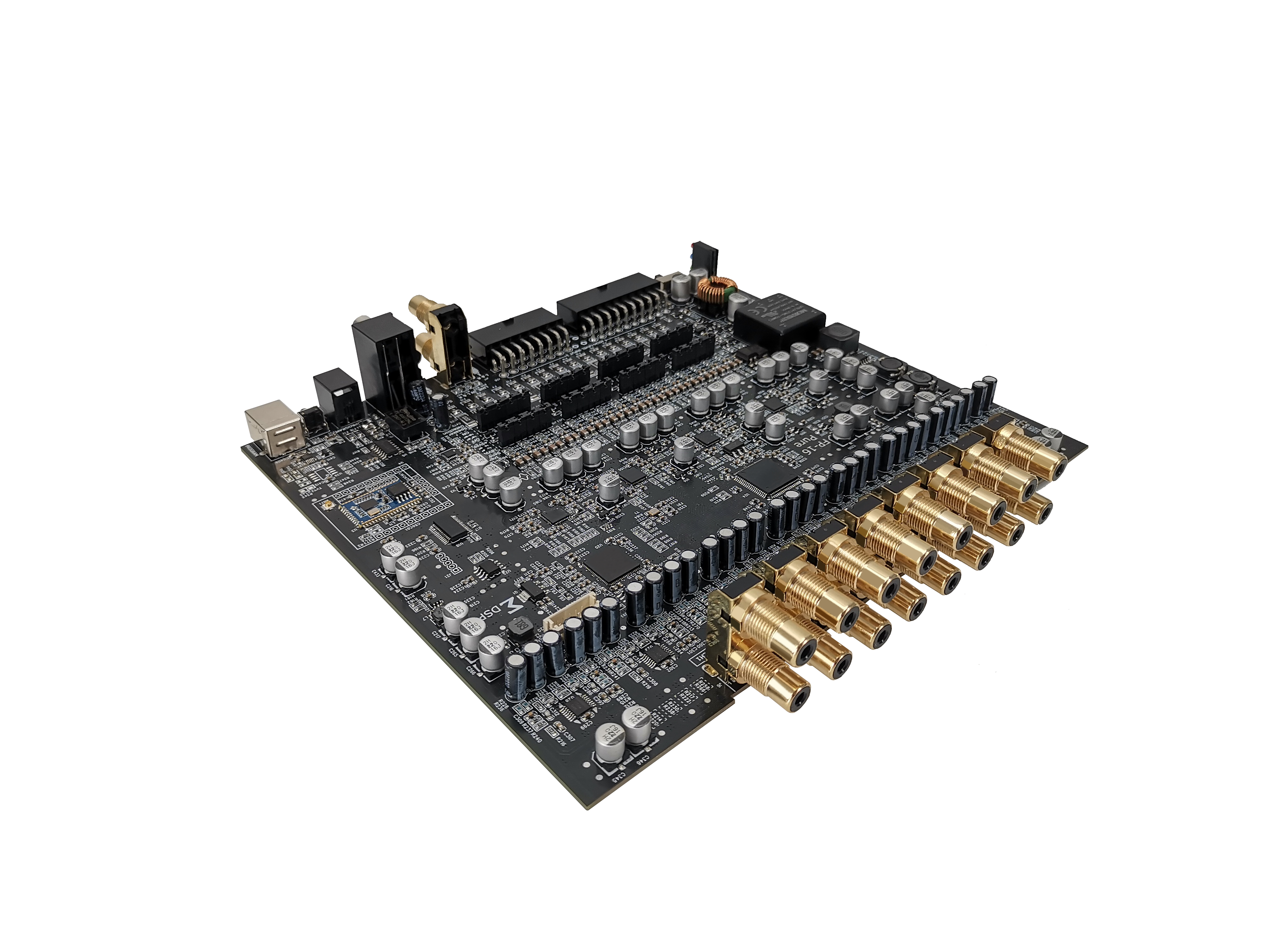

■ Hi-End Decoding Chip with Ultra-High Computational Power
■ ADI's ADAU1977 High-Performance ADC Professional Chip
■ Qualcomm's QCC5171 Bluetooth 5.3 High-Definition Audio Transmission
■ ADI's ADAU1966 High-Performance Low-Distortion Audio DAC Decoding Chip
■ Ultra-High Dynamic Range, Supports High Resolution, and Multiple Sampling Rates
■ Wide Voltage Adaptive Technology, Supports Input Voltage from 12-24V
■ Plug and Play, Seamless Installation

Model:	FP-16 Pure
Type:	Class D Four Channels Amplifier
Power:	DC 10V～26 V

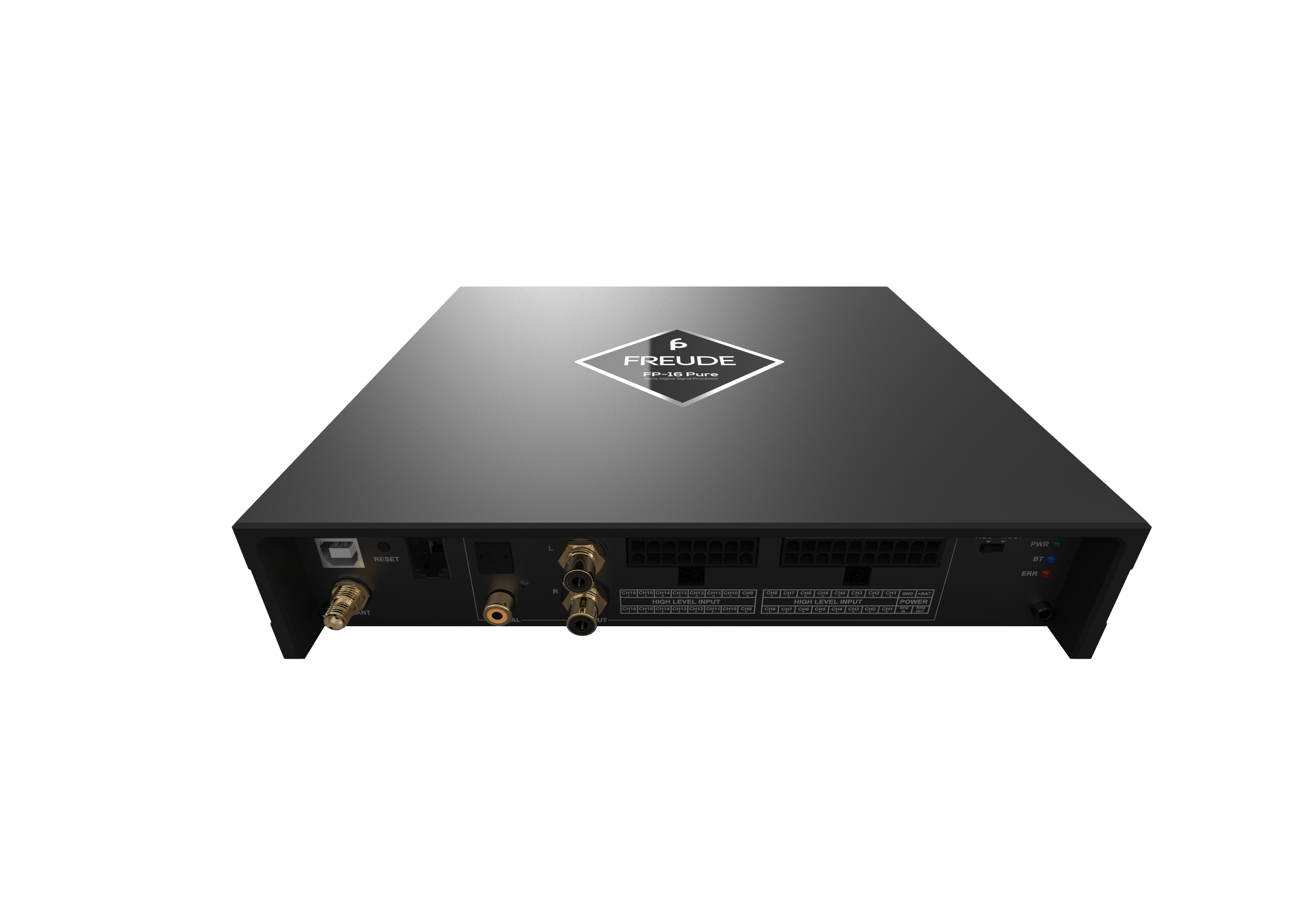

Input Signal Type:	16 ch high level, 2 ch Low Level, Optical Fibre, Digital BT, Coaxial
Dynamic Range:	≥114 dB
S/N:	≥116 dB
T.H.D.:	≤0.0018%
Frequency Response:	10 Hz ~ 44k Hz
Decoding Capability:	24bit/44.1kHz/48kHz/96kHz/192kHz
Output Signal Type:	16 ch Low Level Output
Output Signal EQ:	31 Levels EQ
Net Weight:	1.53 kg
Dimension(LxWxH;mm):	222 x 210 x 46
