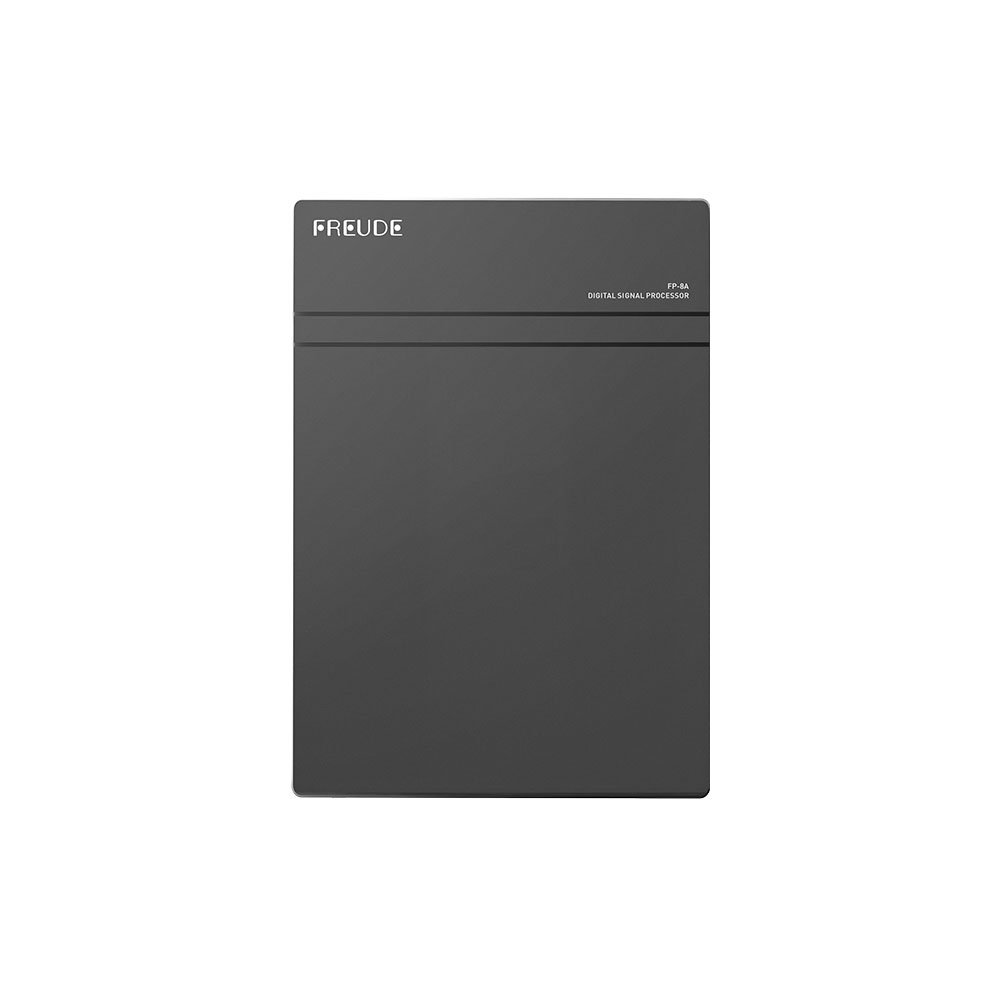

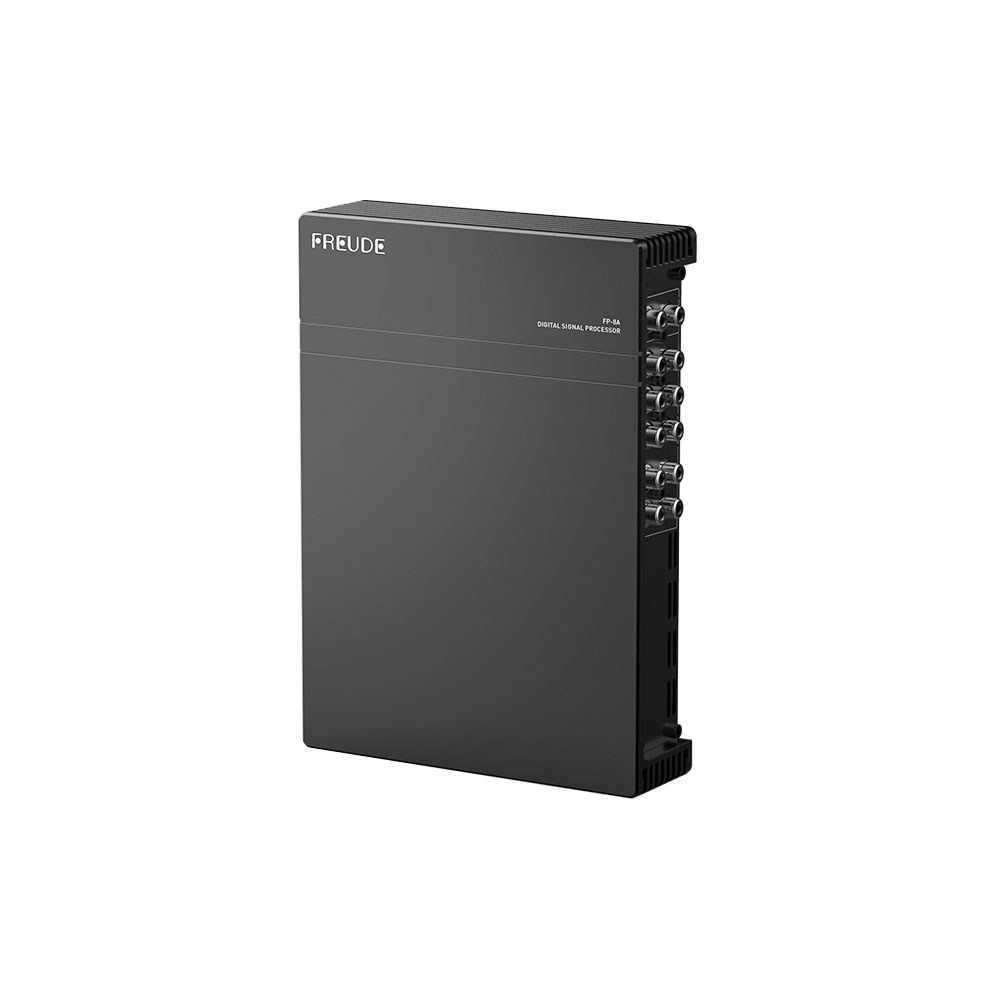

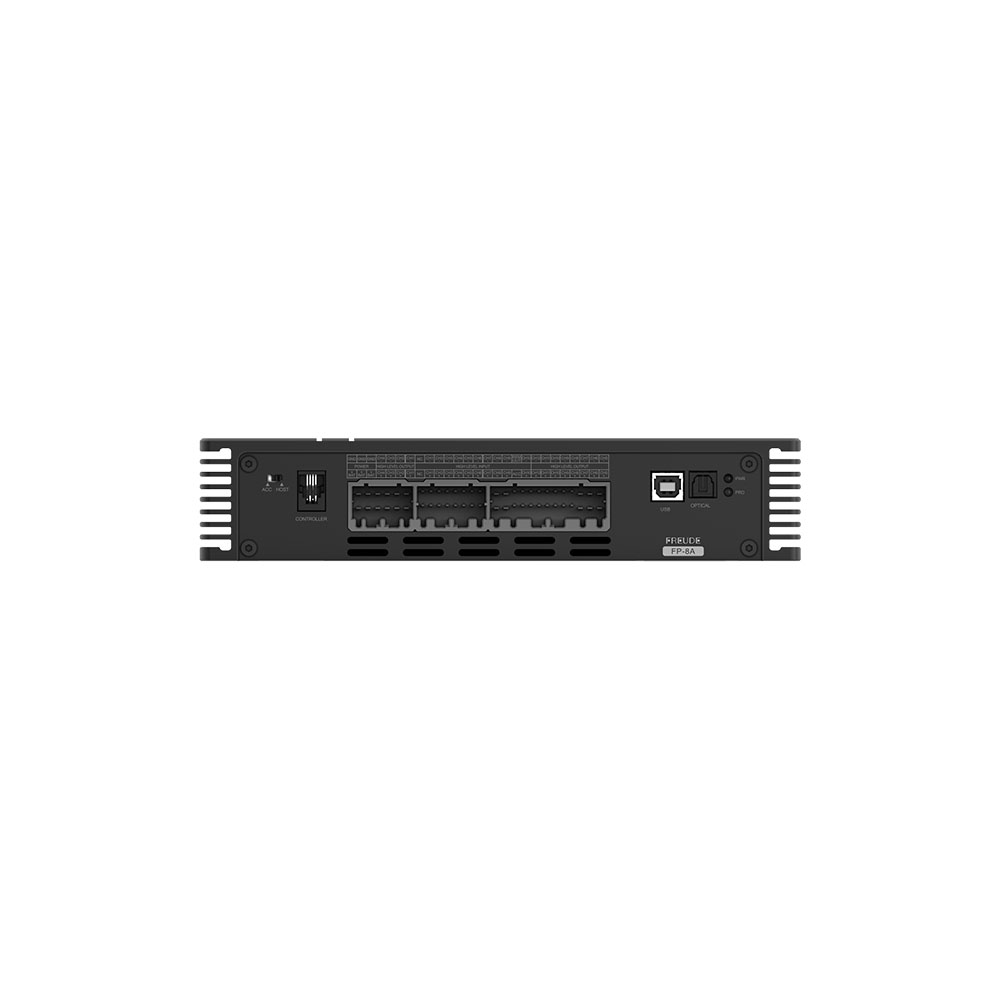

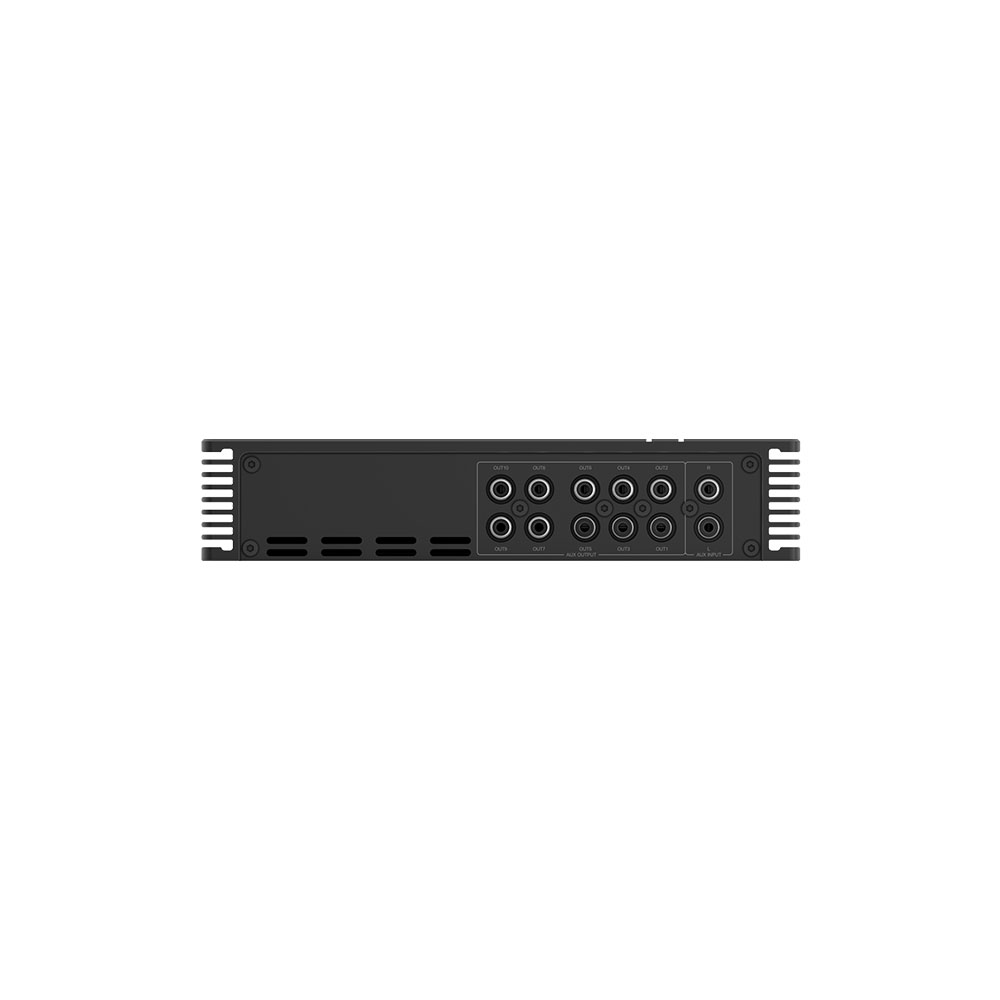

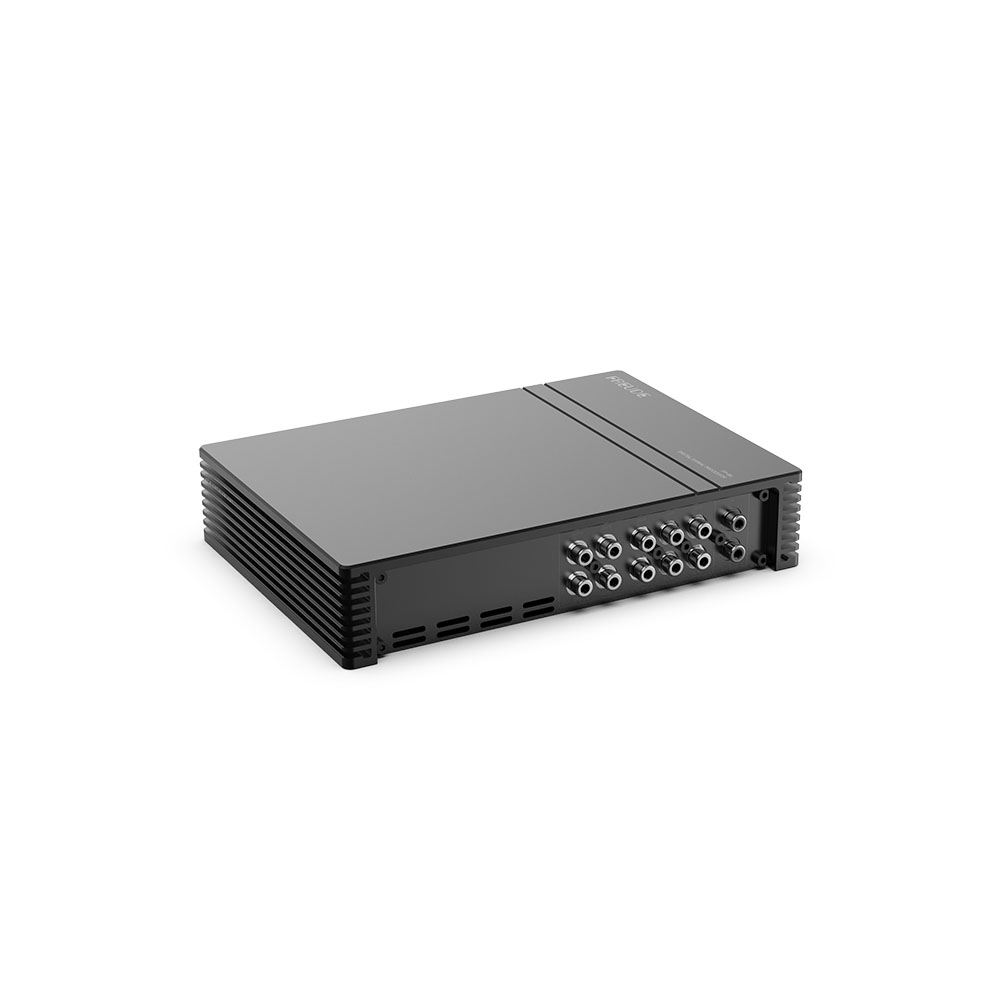

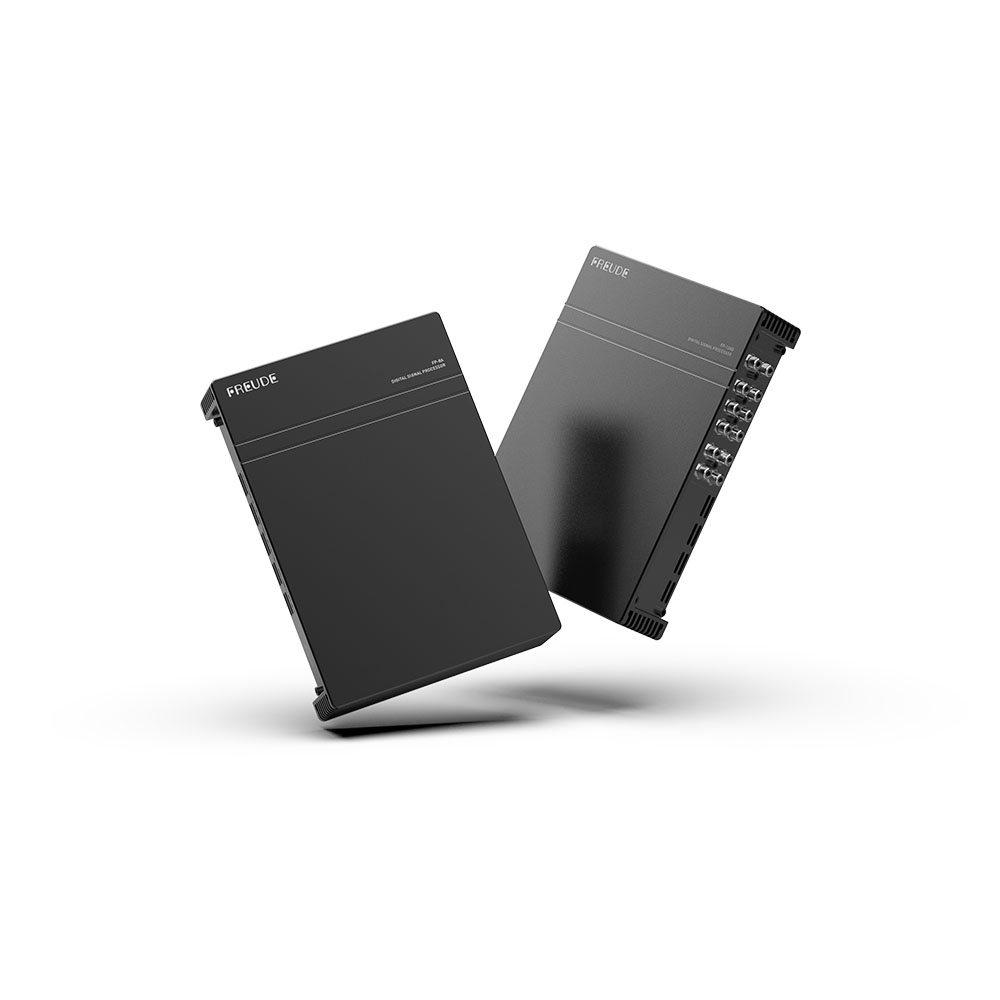

FP-8A

10ch DSP with 8ch Amplifier

■ 10-ch of high-level, 2-ch of low-level, optical, and Bluetooth 5.1 inputs
■ 10-ch of low-level output, 8-ch of high-level output
■ 31-band EQ adjustment
■ Class-AB amplifier
■ High-quality electronic components
■ Full aluminum body for excellent heat dissipation
■ Computer tuning
■ Plug & play, lossless installation

Model:	FP-8A
Type:	10 ch DSP with 8 ch Amplifier
Power:	DC 9 V～16 V
Input Signal Type:	10 ch high level, 2 ch Low Level, Optical Fibre, Digital BT 5.1
Dynamic Range:	≥96 dB
S/N:	≥96 dB
T.H.D.:	≤0.01%
Frequency Response:	20 Hz ~ 20k Hz
Decoding Capability:	24 bit / 96k Hz
Max Power:	50 W x 8 ch
Nom Power:	25 W x 8 ch
Output Signal Type:	10 ch Low Level Output, 8 ch High Level Output
Output Signal EQ:	31 Levels EQ
Net Weight:	1.45 kg
Dimension(LxWxH;mm):	220 x 157 x 45
