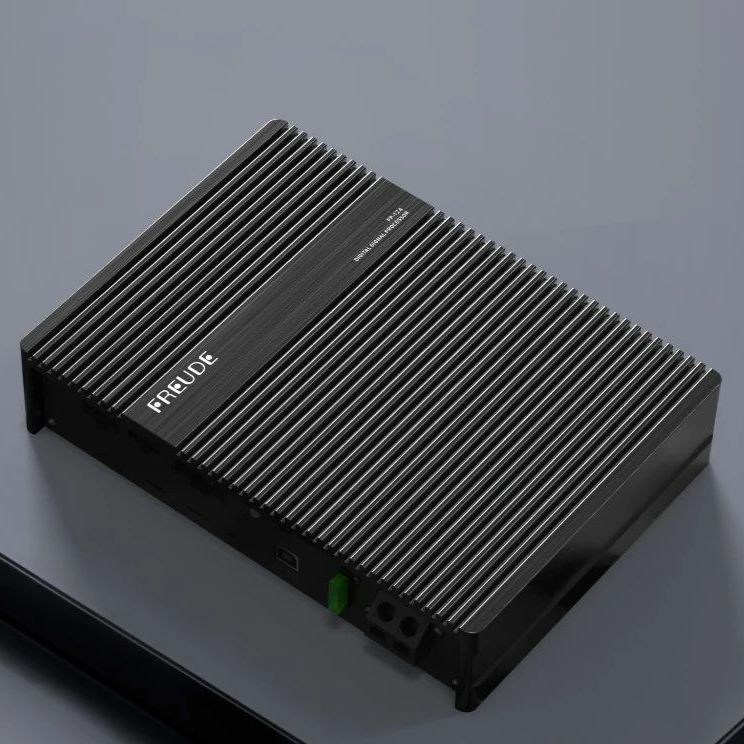

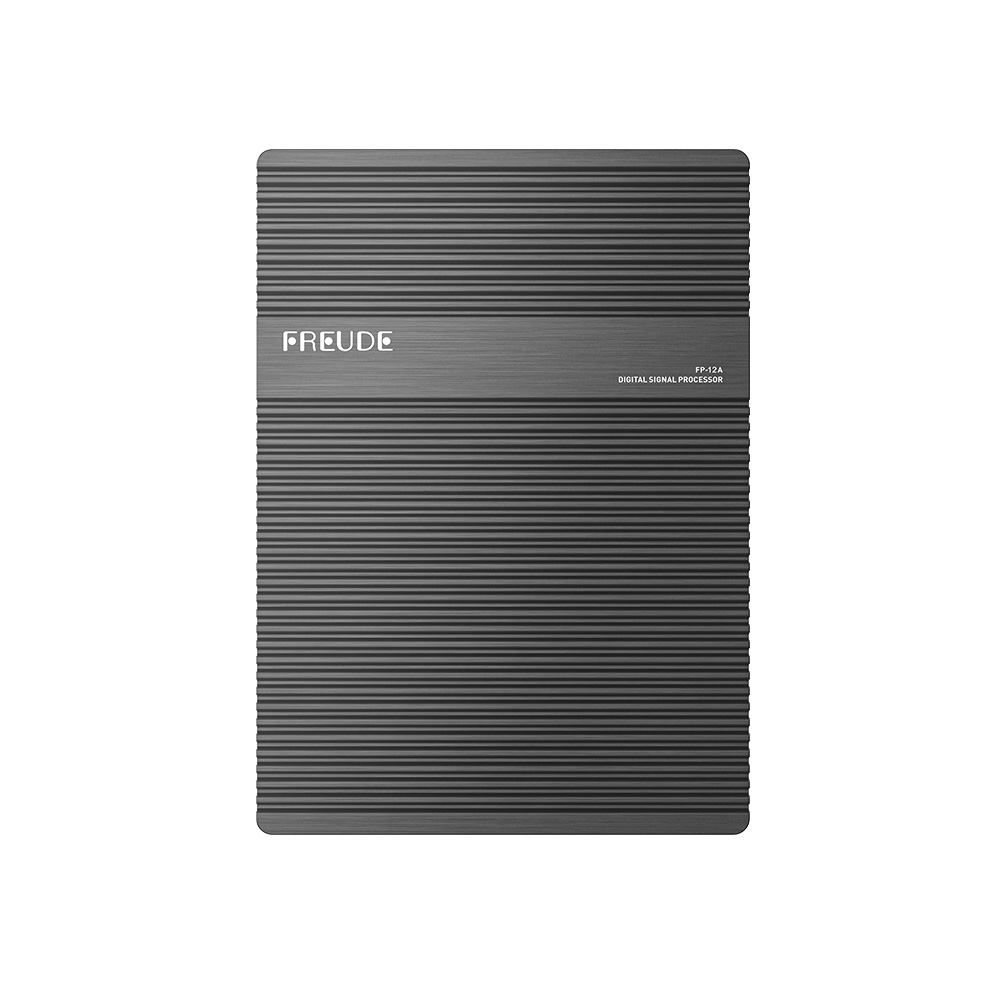

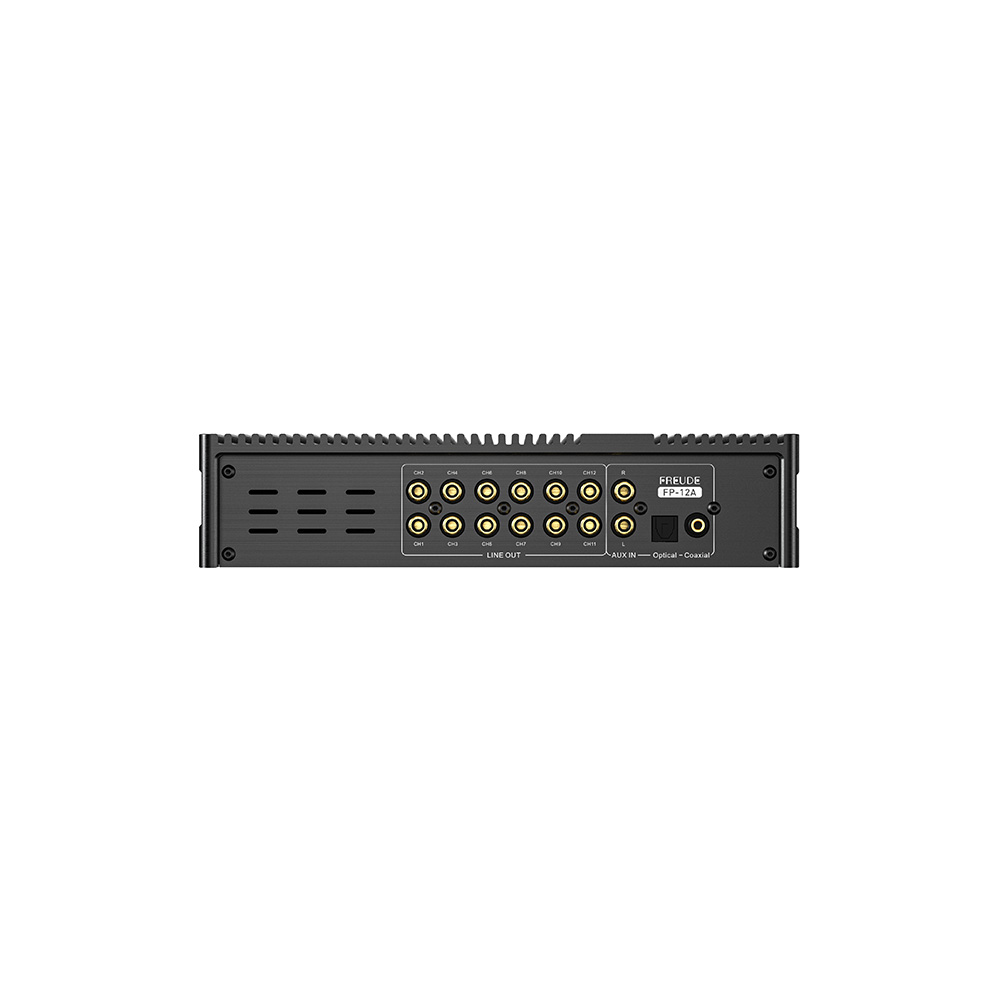

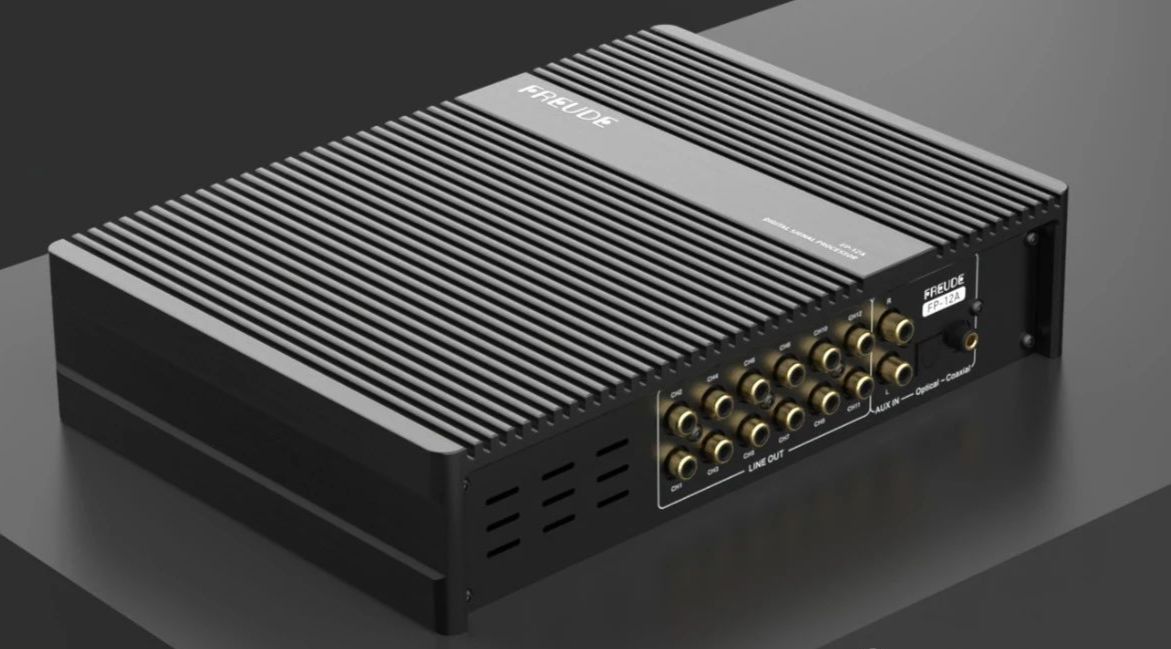

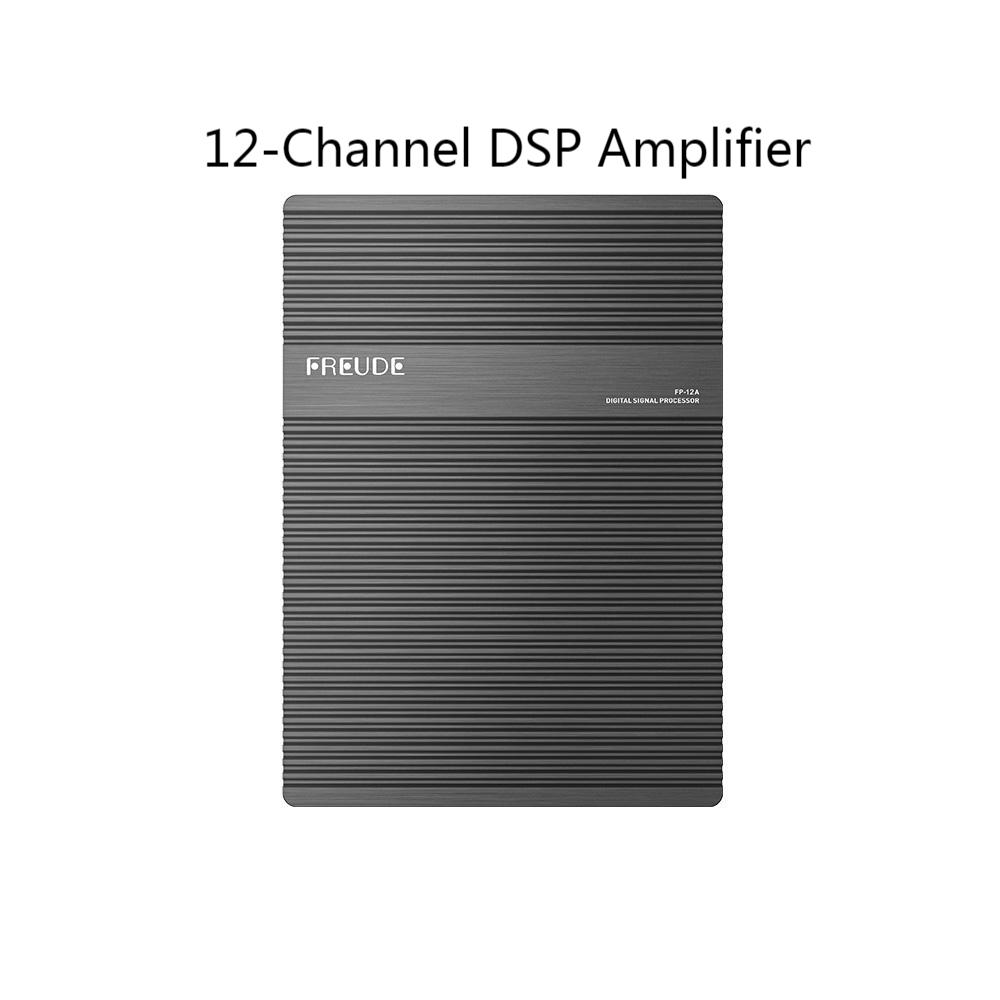

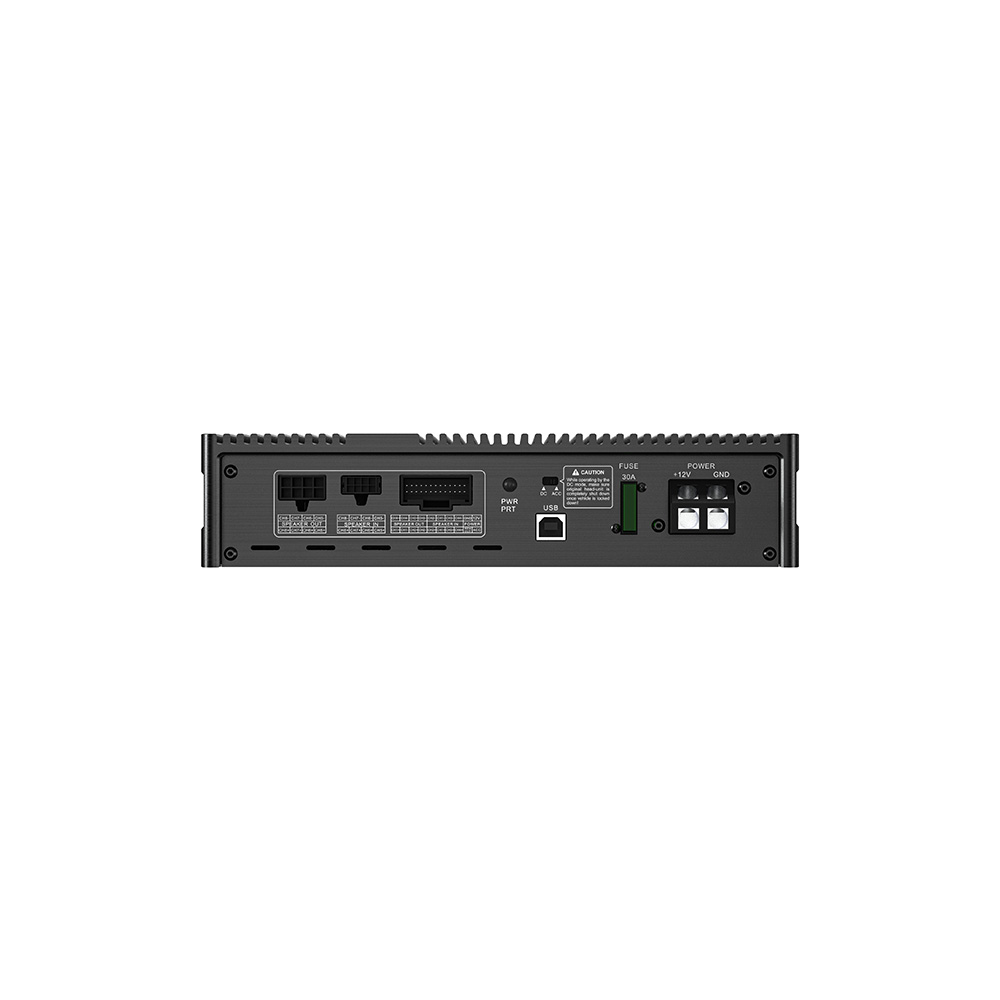

FP-12A

12ch DSP with Amplifier

■ 12-ch low-level output, with 8-ch power amplifier output
■ Class-AB amplifier
■ 31-band EQ adjustment, capable of saving 9 preset music scenes
■ Ultra-low distortion, with total harmonic distortion ≤ 0.01%
■ High-quality electronic components for an ultimate sound quality experience
■ Full aluminum body for excellent heat dissipation
■ Computer and mobile phone tuning
■ Plug & play, lossless installation

Model:	FP-12A
Type:	12 ch DSP with 8 ch Amplifier
Power:	DC 10 V～16 V
Input Signal Type:	8 ch high level, 2 ch Low Level, Optical Fibre, Digital BT 5.0, Coaxial
Dynamic Range:	≥96 dB
S/N:	≥96 dB
T.H.D.:	≤0.01%
Frequency Response:	20 Hz ~ 22k Hz
Decoding Capability:	24 bit / 96k Hz
Max Power:	60 W x 8 ch
Nom Power:	30 W x 8 ch
Output Signal Type:	12 ch Low Level Output, 8 ch High Level Output
Output Signal EQ:	31 Levels EQ
Net Weight:	2.23 kg
Dimension(LxWxH;mm):	247 x 178 x 55
