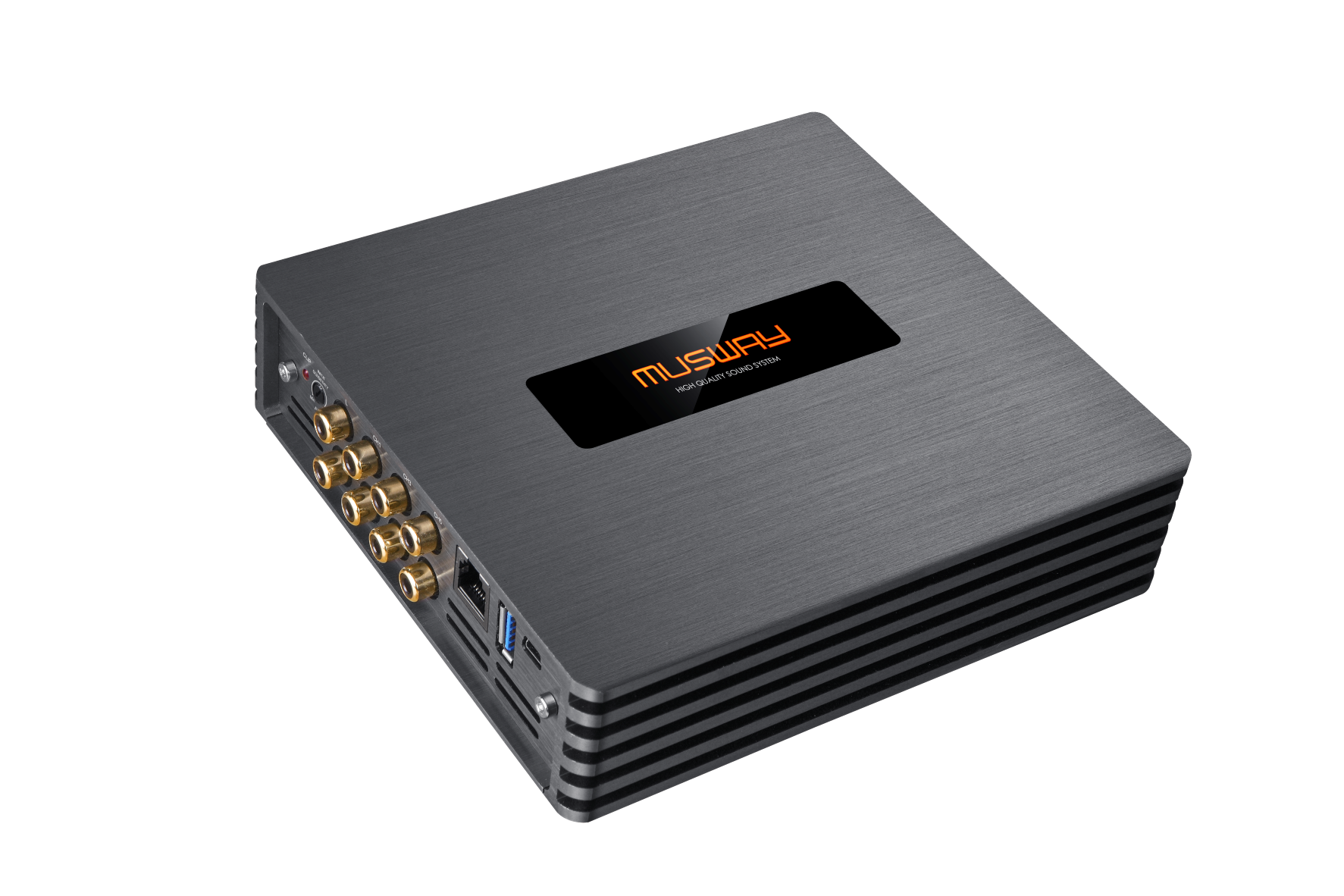

M4

4-Channel Class D Amplifier

with 6-Channel DSP · 340 Watts RMS

Features

• Intelligent High Level Input (Error Protection System)

• Start-Stop ready, Auto Turn-On

• Burr-Brown converters (PCM3168A) and Analog Devices DSP(ADAU1452)

• 32bit, 295MIPS DSP technology, controllable via  new V3 PC software or Tunest App

• Signal-to-noise Ratio ≥90dB

• Frequency Response 15 Hz – 22 kHz (-3dB)

• THD ≤0,1% (1 kHz, 4Ω, 90% Power)

• Controllable AUX input sensitivity, Clipping LEDs

• Plug+Play with vehicle-specific cable sets

Specification

Power output(RMS) @ 14.4 VDC, 1% THD:

4CH @ 4 Ω：45 W x 4

4CH @ 2 Ω：65 W x4

2CH - (bridged 1/2; 3/4) @ 4 Ω: 145 W x 2

4 x High Level Input,10V RMS

2 x AUX/RCA Input, 0.3-2.6V RMS

4 x Loudspeaker Output amplified

6 x Pre-Amplifier Output/RCA (configurable via DSP)

Dimensions: 165 x 41 x 150 mm
