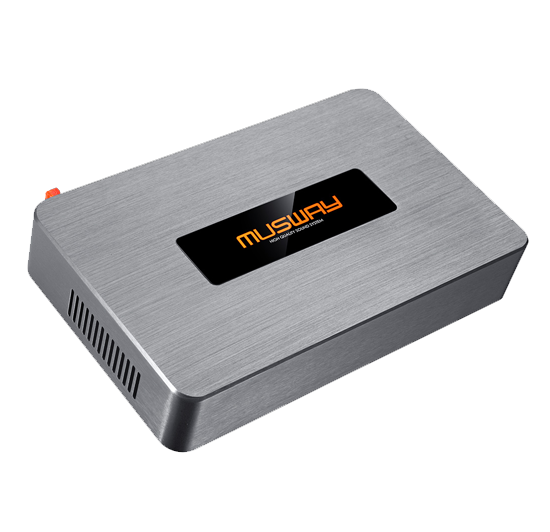

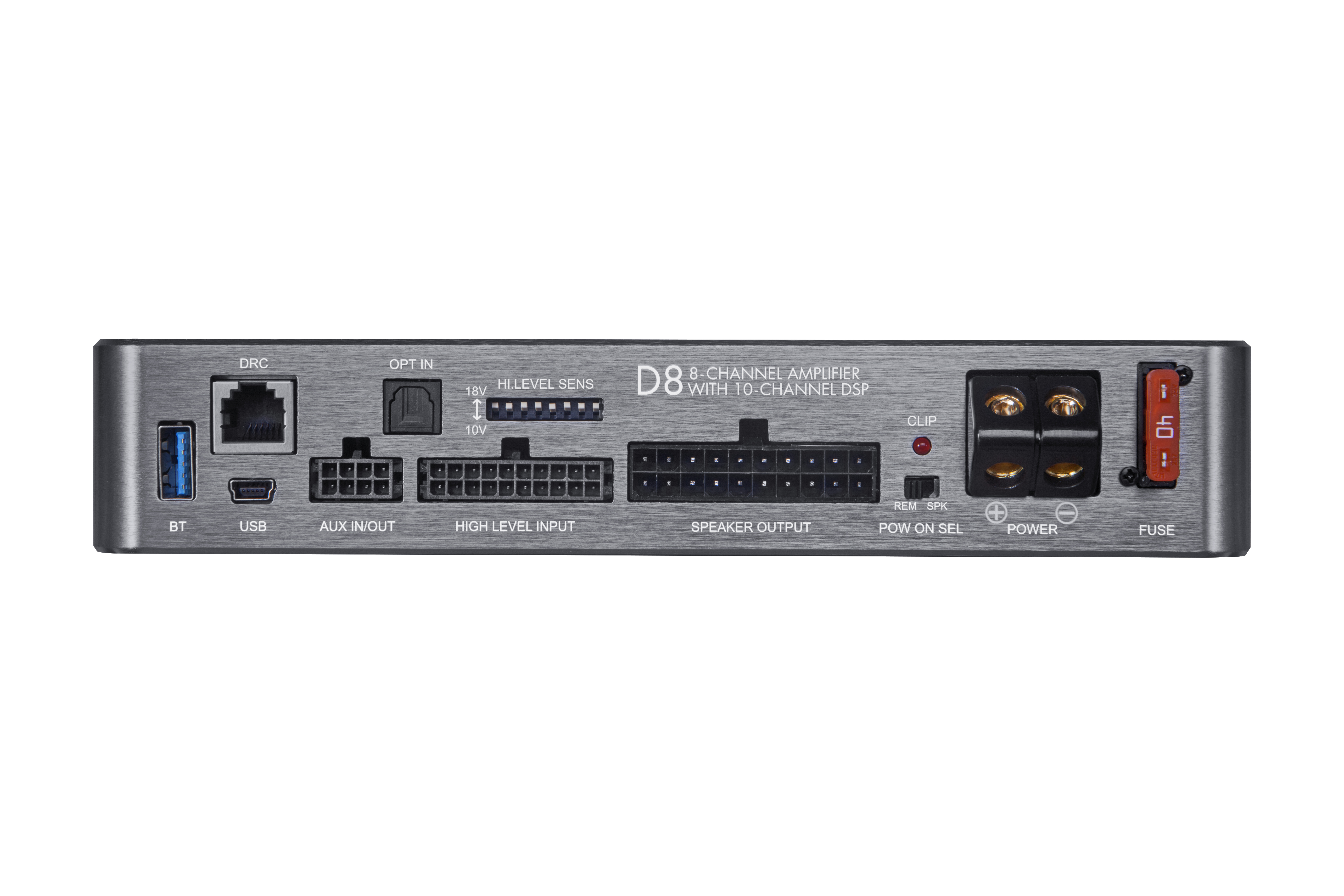

DSP Amplifier
Model No.:
D8
Description
Contact Supplier
Description
D8
8-Channel Class D Amplifier
with 10-Channel DSP · 600 Watts RMS
Features
• Intelligent High Level Input (Error Protection System)
• Start-Stop ready, Auto Turn-On
• Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1452)
• 32bit, 295 MHz DSP technology, controllable via
PC software or Tunest App
• Signal-to-noise Ratio ≥90dB
• Frequency Response 15 Hz – 22 kHz (-3dB)
• THD ≤0,1% (1 kHz, 4Ω, 90% Power)
• External Bluetooth® USB-Dongles BTS, BTS-HD & BTA2 for Audio Streaming & App Control (optional)
• Digital remote control DRC1 with OLED display for controlling various DSP functions (optional)
Specification
Power output(RMS) @ 13.8 VDC, 1% THD:
8 x 50/75 Watts RMS @ 4/2 Ohms or
4 x 150 Watts RMS @ 4 Ohms bridged
8 x High Level Input 10 or 18 V RMS
1 x AUX Input/Stereo (RCA) 4 V RMS
1 x Optical Input/Stereo (PCM, 96 kHz / 24 bit)
8 x Loudspeaker Output amplified
2 x Pre-Amplifier Output (RCA) 4 V RMS (configurable via DSP)
Dimensions: 127 x 37 x 205 mm
