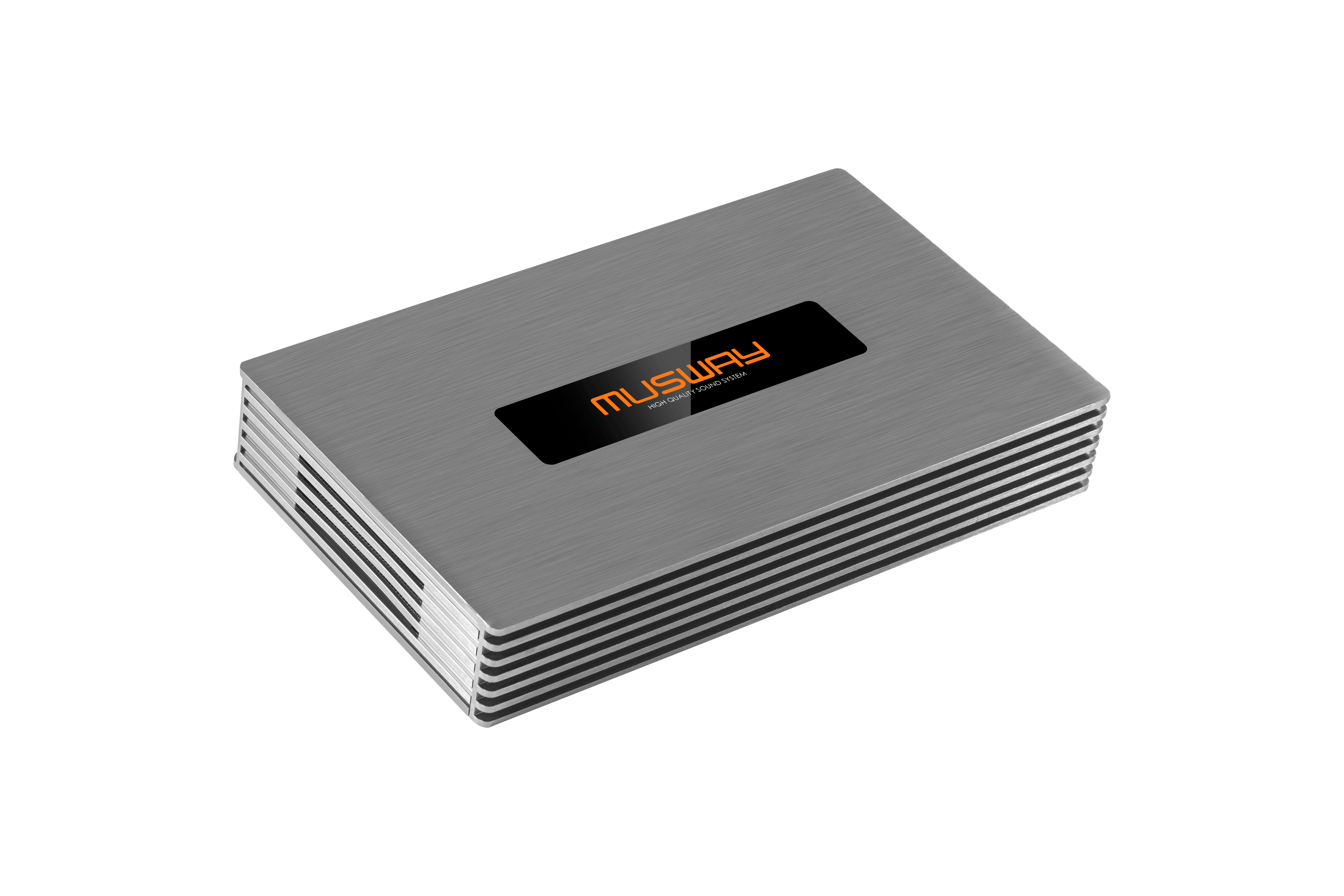

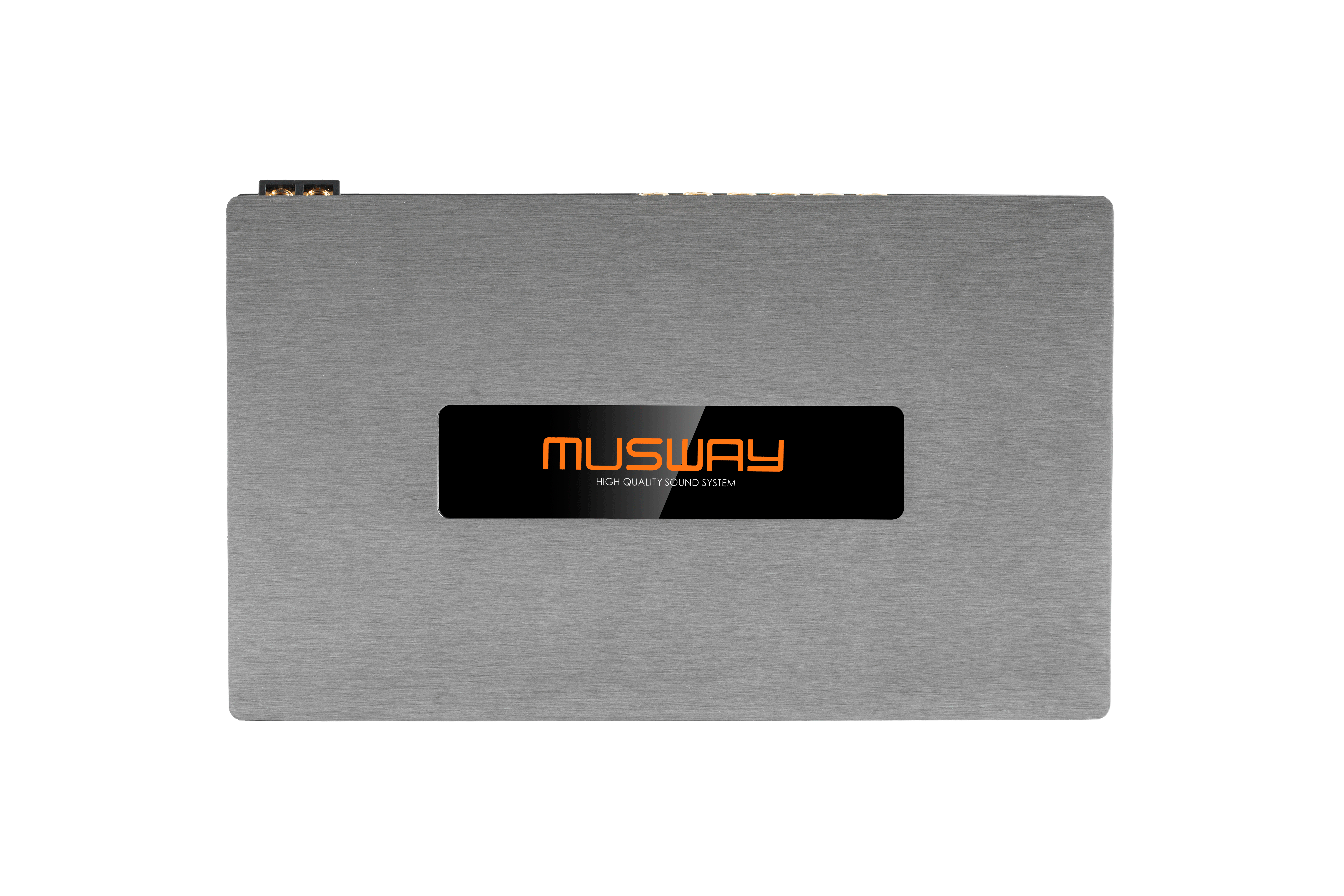

10-Channel Class D Amplifier with 14-Channel DSP

Features

• Intelligent High Level Input (Error Protection System)

• Start-Stop ready, Auto Turn-On

• Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1466)

• 32bit, 295 MHz DSP technology, controllable via new V3 PC software or Tunest App

• Signal-to-noise Ratio ≥95dB

• Frequency Response 15 Hz – 22 kHz (-3dB)

• THD ≤0,05% (1 kHz, 4Ω, 90% Power)

• Separately controllable input sensitivity (Channel 1-8, Channel 9-10, AUX), Clipping LEDs

• External Bluetooth® USB-Dongles BTS, BTS-HD & BTA2 for Audio Streaming & App Control (optional)

• Digital remote control DRC1 with OLED display for controlling various DSP functions (optional)

Specification

Output Power @ 13,8 VDC, 1% THD:

8 x 155 Watts RMS @ 2 Ω (Channel 1 - 8 DHR*) + 2 x 220 Watts RMS @ 2 Ω (Channel 9 / 10)

8 x 80/135 Watts RMS @ 4/2 Ω (Channel 1 - 8) + 2 x 120/220 Watts RMS @ 4/2 Ω (Channel 9 / 10)

Output Power bridged @ 13,8 VDC, 1% THD:

4 x 310 Watts RMS @ 4 Ω (Channel 1 - 8 DHR*) + 1 x 440 Watts RMS @ 4 Ω (Channel 9 / 10)

4 x 270 Watts RMS @ 4 Ω (Channel 1 - 8) + 1 x 440 Watts RMS @ 4 Ω (Channel 9 / 10)

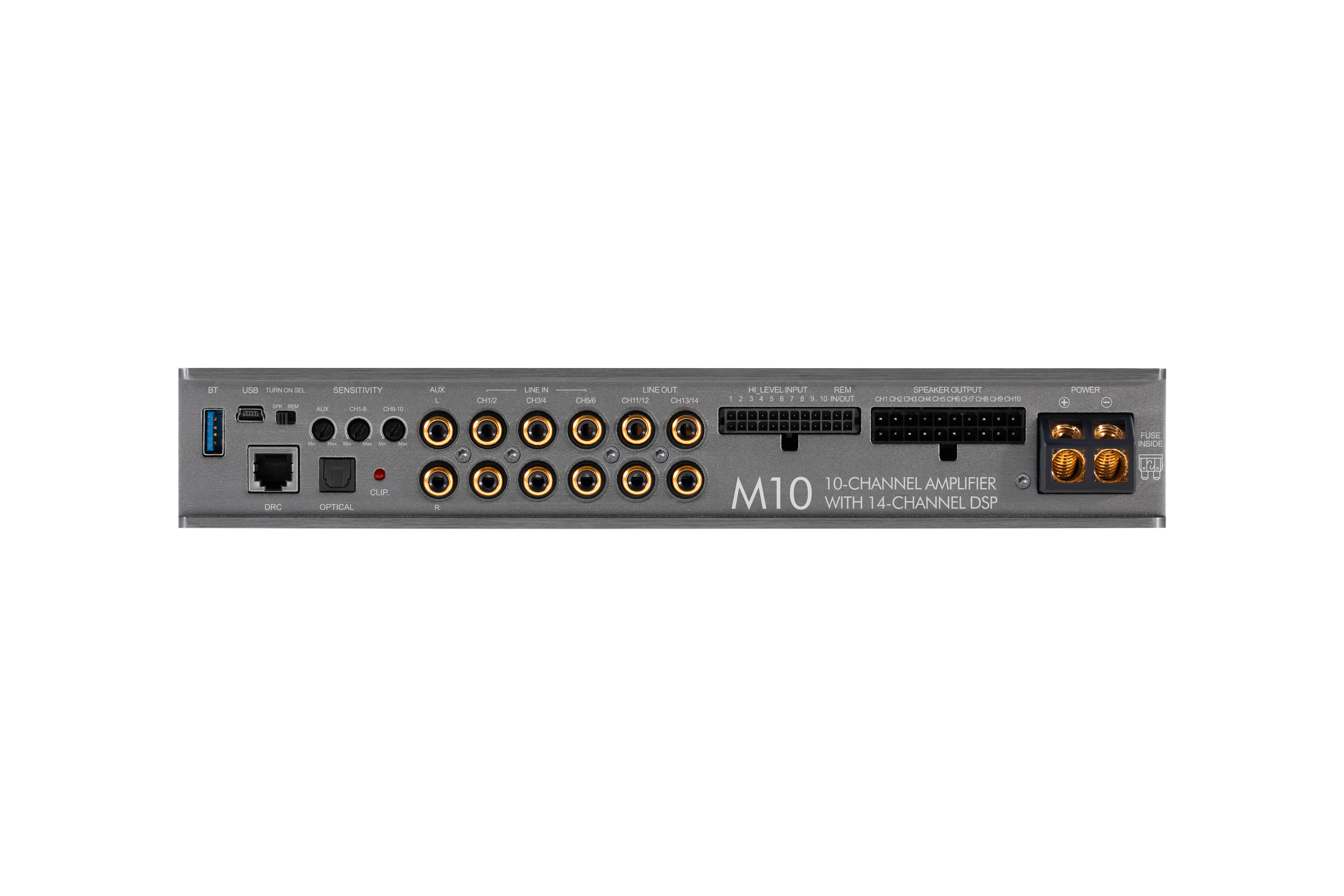

12 x High Level Input with EPS（CH 1-8: 8 - 24 V/RMS , CH 9-10: 8 - 32 V/RMS)

6 x RCA Low Level Input (RCA) 2 – 6 V RMS

1 x RCA AUX Input/Stereo 2 – 8 V RMS

1 x Optical Input/Stereo (PCM, 192 kHz / 24 bit)

4 x RCA Pre-Amplifier Output (configurable via DSP)

12 x Loudspeaker Output amplified

Dimensions: 280 x 45.5 x 166 mm
