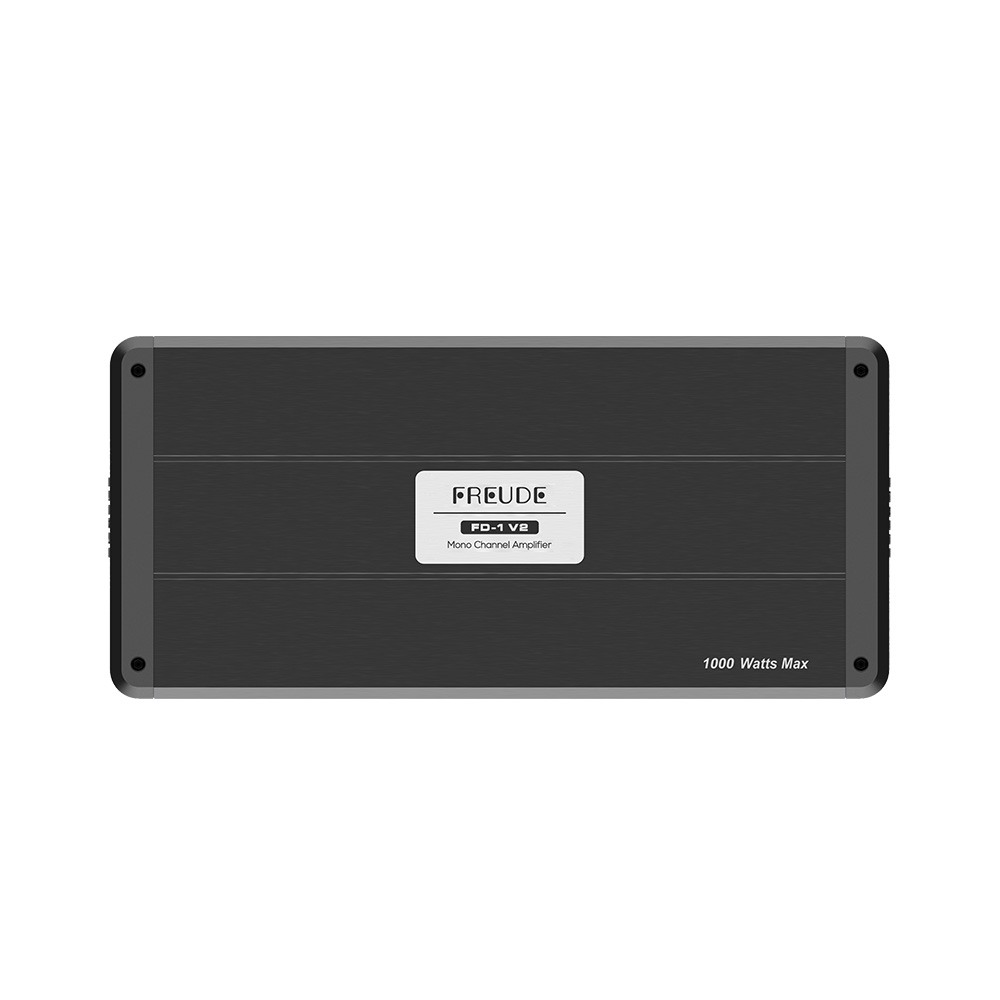

FD-1 V2

Class-D Mono Channel Amplifier

■ Rated output power of 500W@4Ω,Peak output power of 1000W@4Ω
■ Supports 2Ω, 1Ω output
■ Distortion ≤0.05%
■ Comprehensive protection circuit
■ Uses double-sided FR-4 material
■ Features 4GUAGE nickel-plated speaker output terminals
■ Adopts an ultra-compact size design

Model:	FD-1 V2
Type:	Class D Four Channels Amplifier
Max Power @ 1Ω:	2000 W
Nom Power @ 1Ω:	1000 W
Max Power @ 2Ω:	1600 W
Nom Power @ 2Ω:	800 W
Max Power @ 4Ω:	1000 W
Nom Power @ 4Ω:	500 W
Freq. Resp. Range (-3db):	10 Hz - 250 Hz
Low-pass Adjustment Range:	35 Hz - 250 Hz
Signal Noise Ratio:	≥95 dB
Degree Of Loss Of Truth:	≤0.05%
Weight:	1.92 kg
Dimensions (LxWxH;mm):	288 x 128 x 48.5
