DSP Processors
Model No.:
TUNE12
Description
Contact Supplier
Description
Features
• Intelligent High Level Input (Error Protection System)
• Start-Stop ready, Auto Turn-On
• Three Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1452)
•32bit, 295MIPS MHz DSP technology, controllable via new V3 PC software or Tunest App
• Separately adjustable input sensitivity (CH1-8 high level, CH1-6 low level, AUX)
• High quality full aluminum housing with glass plate
• External Bluetooth® USB-Dongles BTS, BTS-HD & BTA2 for Audio Streaming & App Control (optional)
• Digital remote control DRC1 with OLED display for controlling various DSP functions (optional)
Specification

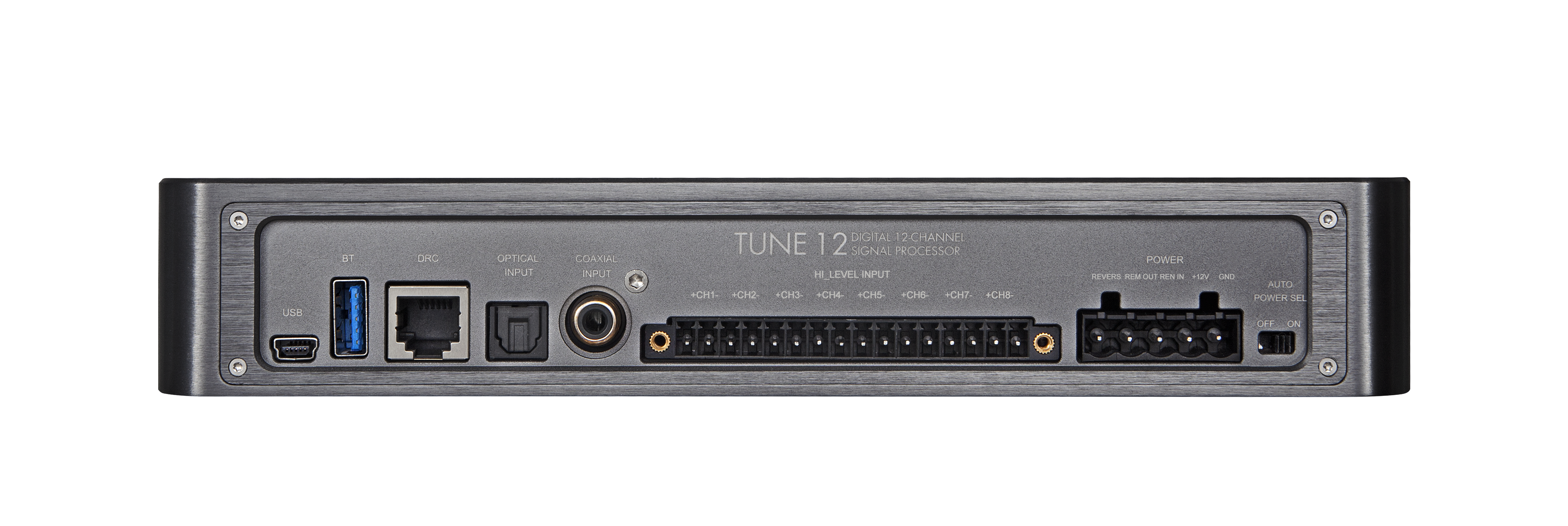

8 x High Level Input 8 – 24 V RMS
6 x Low Level Input (RCA) 1 – 8 V RMS
1 x AUX Input/Stereo (RCA) 1 – 8 V RMS
1 x Optical Input/Stereo (PCM, 96 kHz / 24 bit)
1 x Coaxial lnput/Stereo (S/PDIF, 96 kHz / 24 bit)
12 x RCA Output 6,5 V RMS
Dimensions: 220 x 38 135 mm
