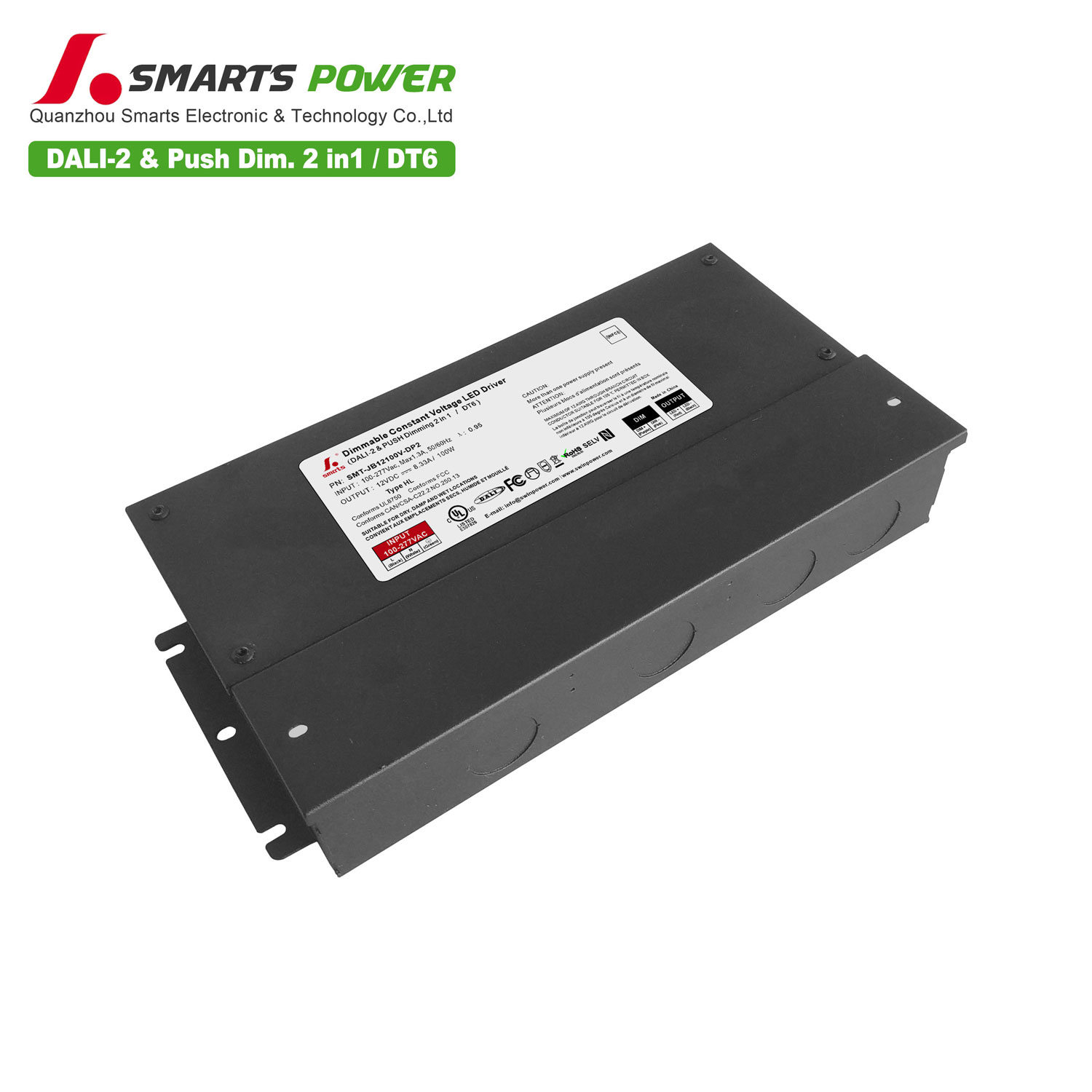

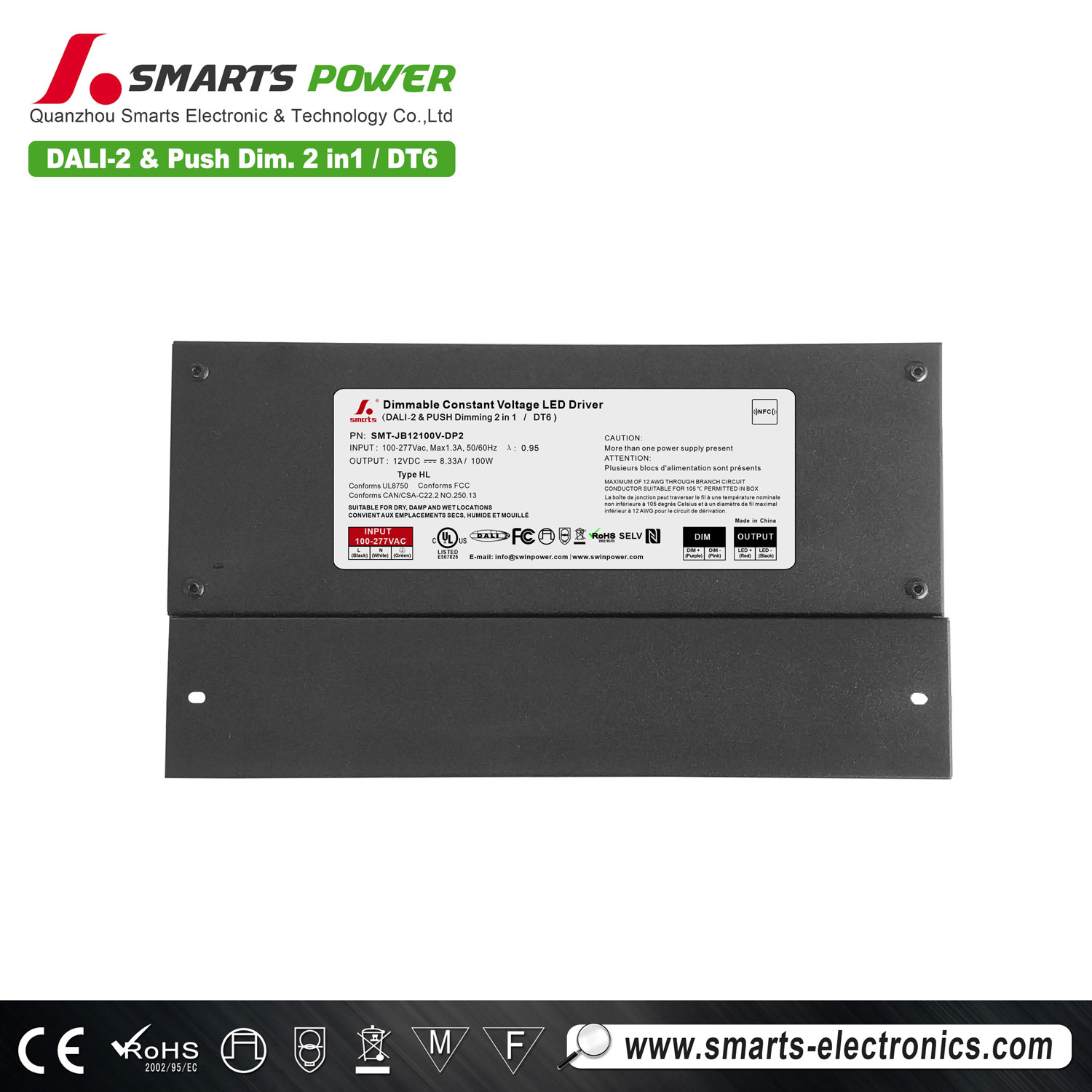

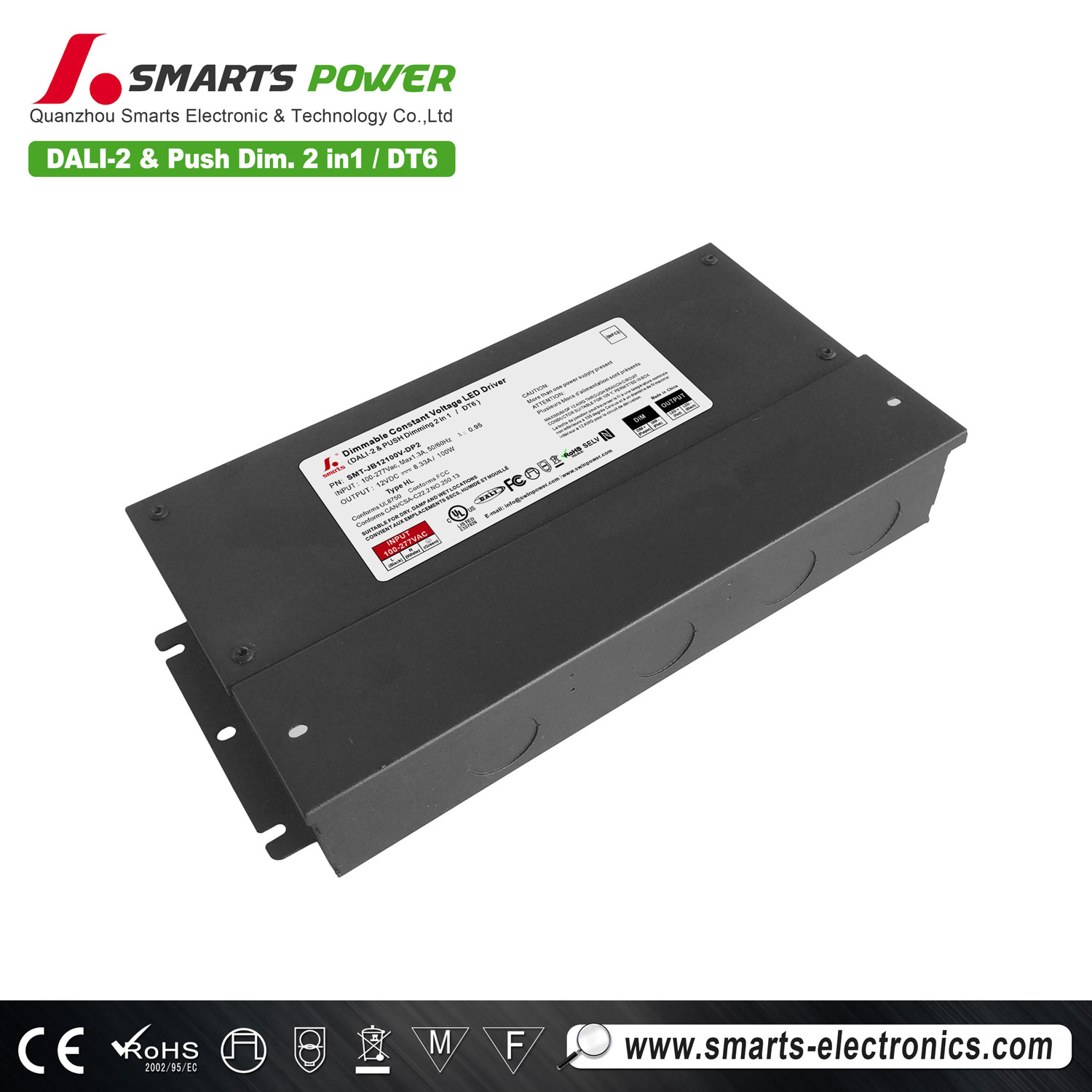

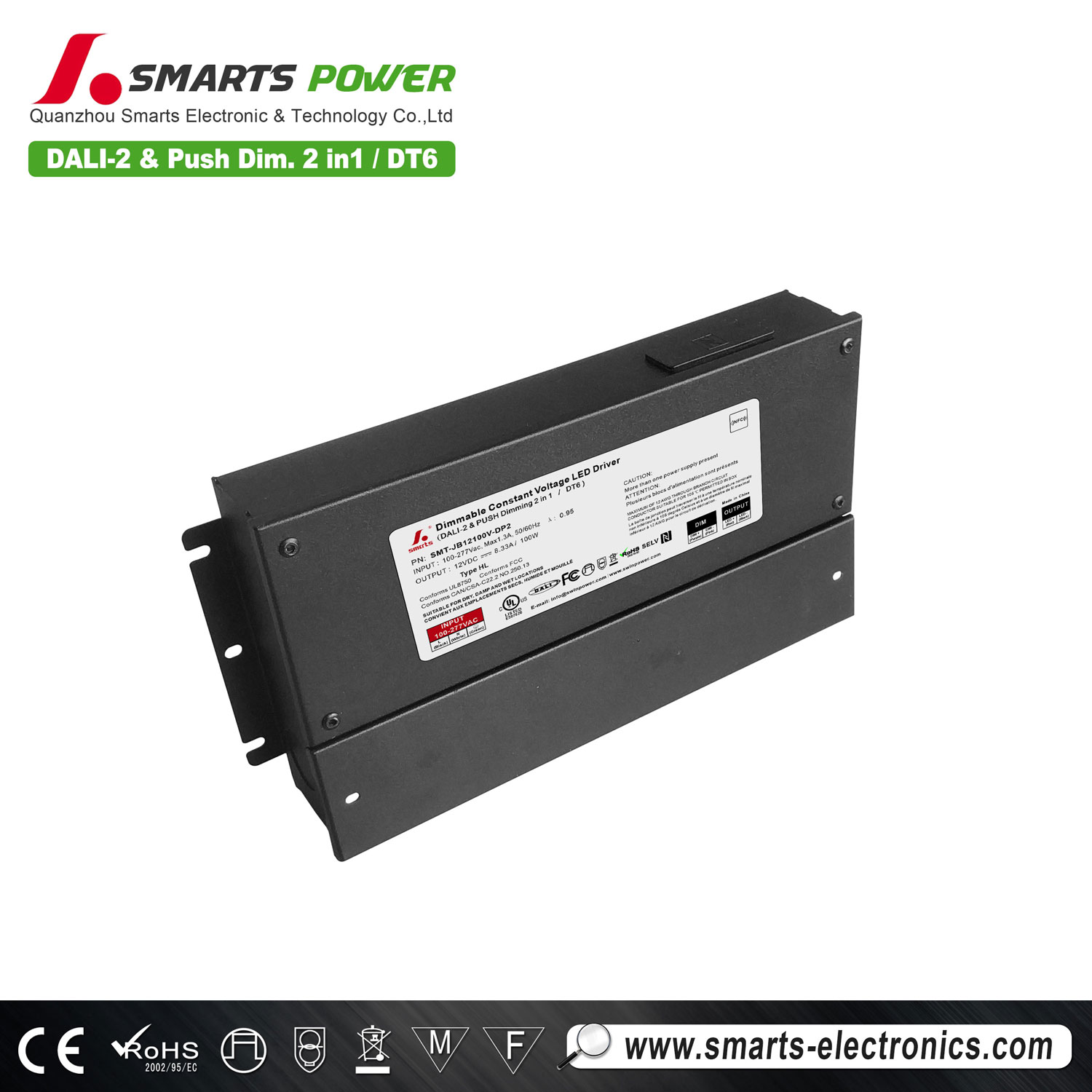

NFC dali-2 & push dimmable 100W led driver, the dimming range is 0-100%, can realize flicker-free dimming, output frequency PWM, constant voltage mode, working efficiency up to 90%

■Features

·Output constant Voltage

·NFC regulation(set ID code & fine-tune voltage via NFC APP)

·Range: 100-277VAC

·Built-in active PFC function，PF＞0.99@120VAC; PF＞0.98@230VAC

·Efficiency up to 90%

·Standby power consumption≤0.5 W

·Protections: Open circuit /short circuit/ over temperature/ over load

·Cooling by free air convection;

·Suitable for dry, damp, wet locations

·Dimming curve: Logarithmic (default) and Linear

·Dimming protocol: DALI-2 Protocol IEC62386; PUSH-DIM (CCT dimming)

·NFC function to adjust output voltage and set address/ID

·Dimming range: 0-100%, LED start at 0.1% possible

·Flicker-free, PWM output frequency, 4KHz Stroboscopic exemption

·Dimming range: 0-100%, LED start at 0.1% possible

·Suitable for intelligent LED lighting

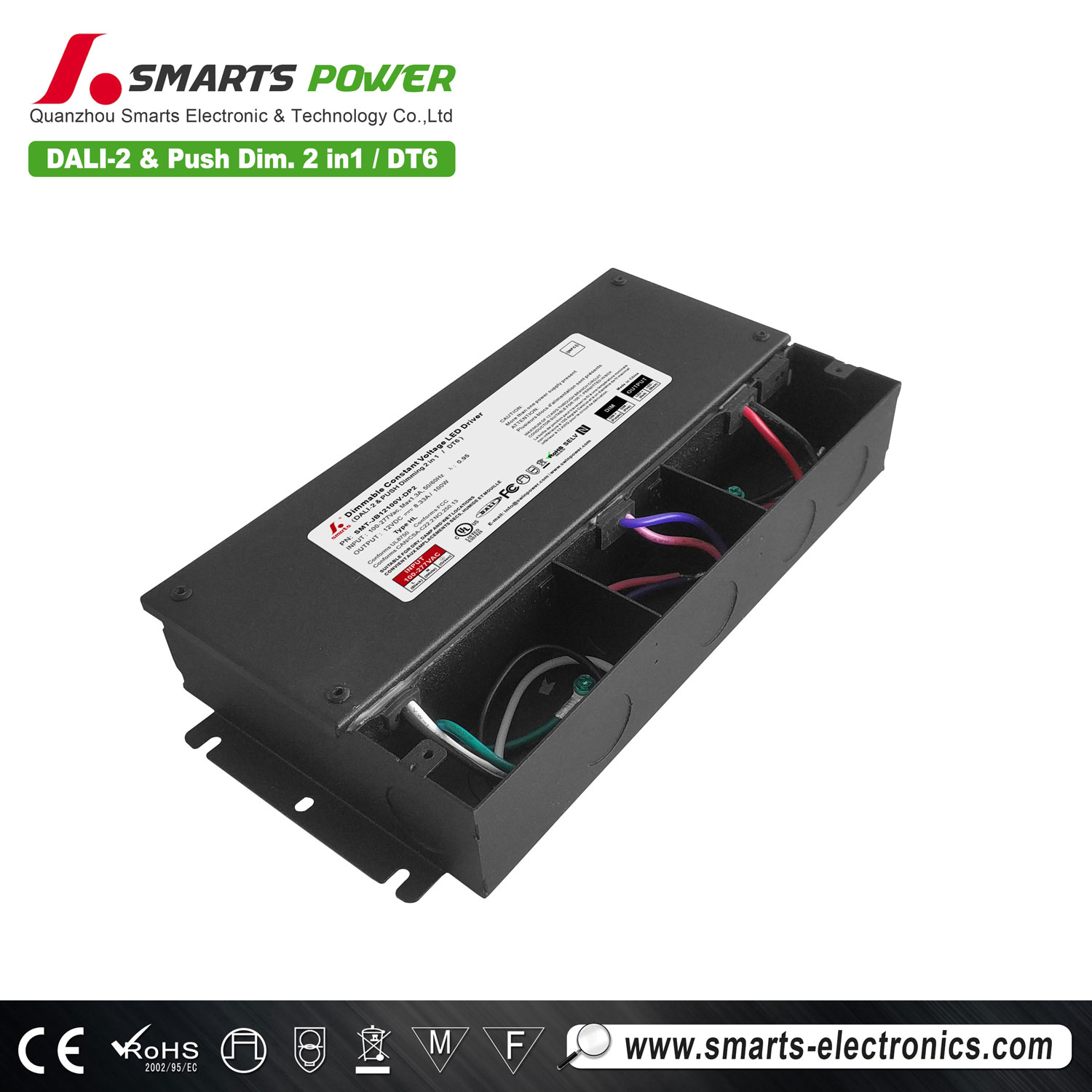

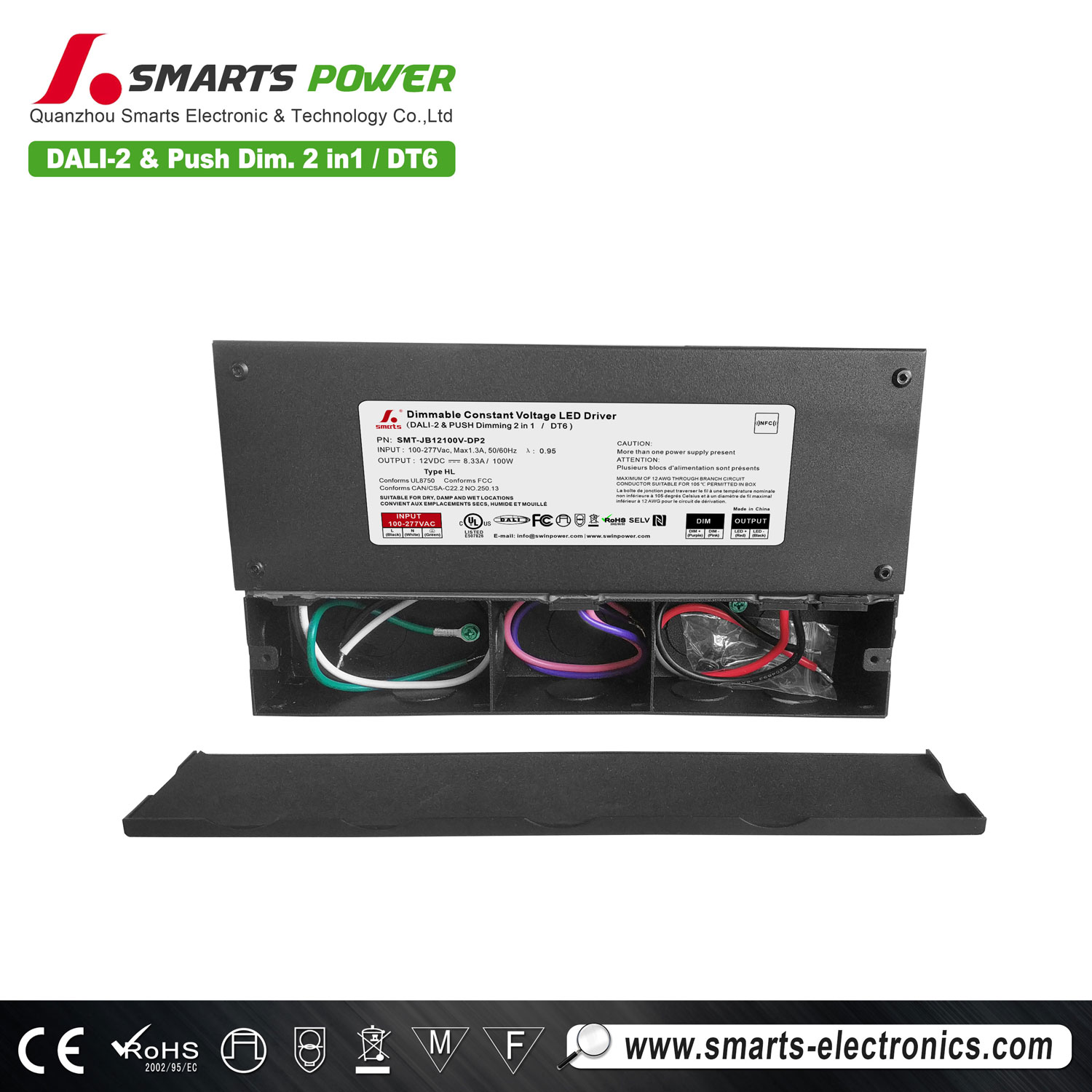

1.Input 3*18AWG,Black cable (L), White cable (N) and Green cable (G).

2.Output 2*16AWG (12V) 2*18AWG (24V, 36V,48V) Black cable (V+) connect to positive(+), Red cable(V-) connect to negative(-).

3.Dimming wire 2*18AWG Purple cable(L), Pink cable (N).

Warm tips:  Any other requests for cable, we can customized.

※Dimming cable

※Dimming electronic cable 3*18AWG, Brown DA/N and Purple DA/L (No polar) connected to the DALI BUS when use DALI function.

Brown (N) is connected to AC (N) while Purple (L) and pink connected to Push dim switch dimmer( L) when use Push function.

※Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.

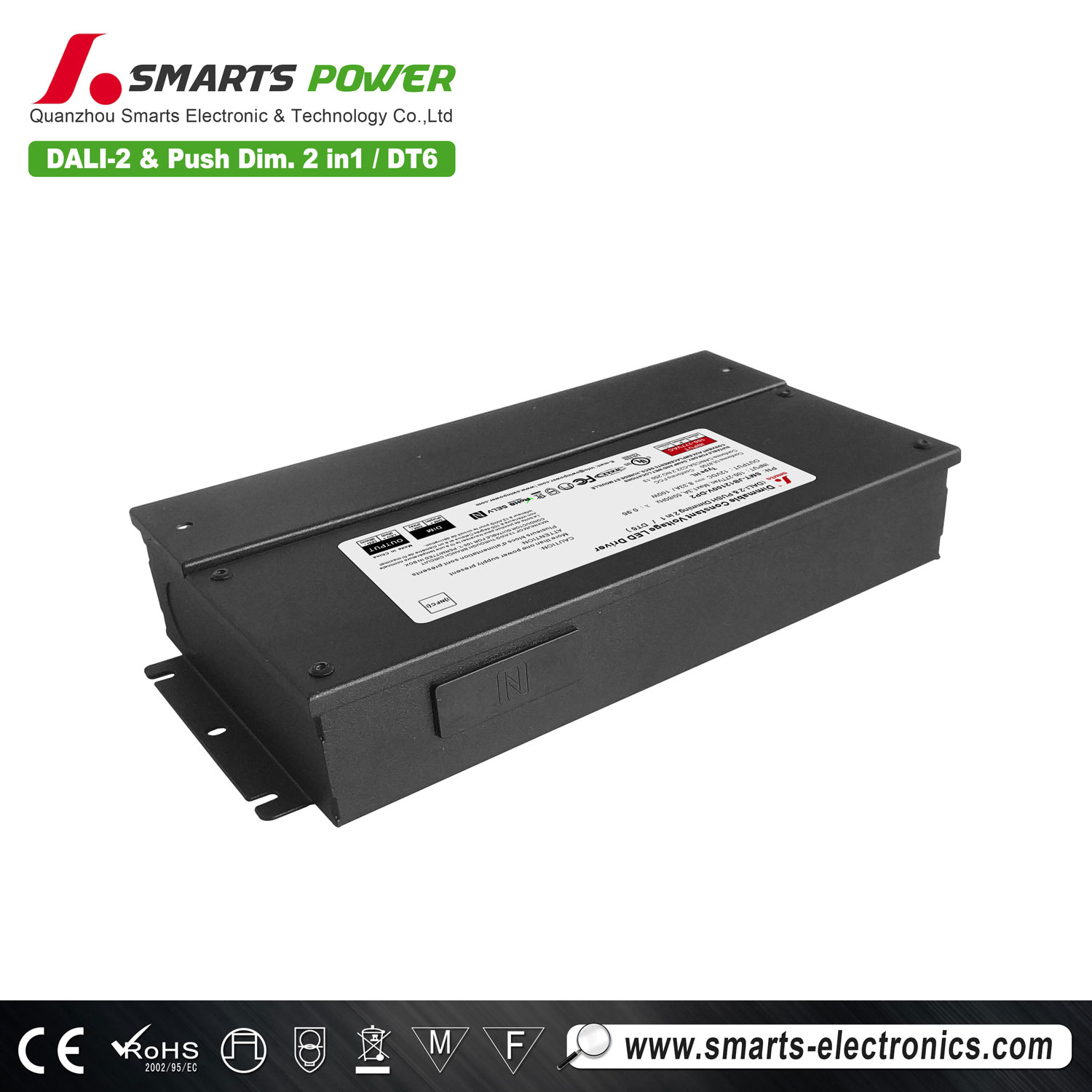

Note:  there is external antenna at output side.  Don't disassemble!
