1.Lumen is dimmable from 0-3400 lumen
2.Beam angle can be changed from 0-180 degrees. So this tube can bring you a complete convenience and pleasing light world
3.With dimmable "DALI/0-10V" diver you can easily control the tube's lumen. The Driver and Epistar LED chip also ensure: our tube instant on high brightness and no flickering. And life time more than 50,000 hours
4.Aluminum better heat dissipation than FR4 and environment friendly
5.Easy Installation: can be placed in conventional T8 or T10 fluorescent brackets and easily replace them

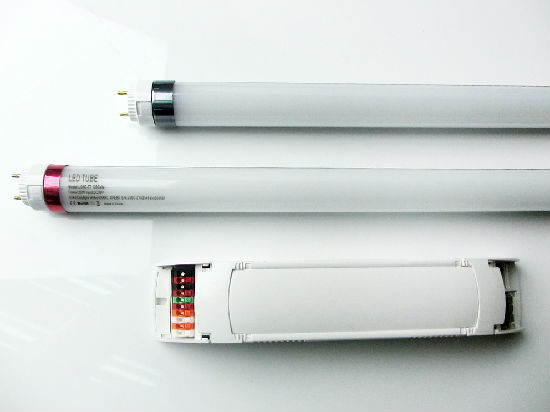

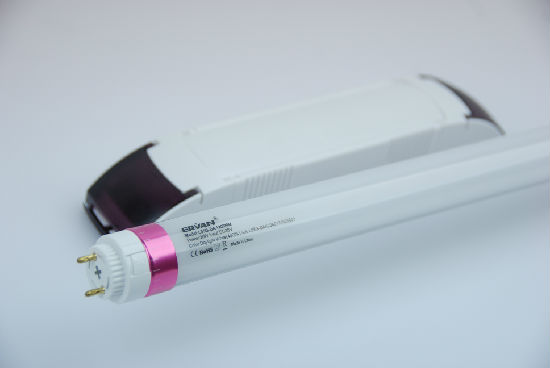

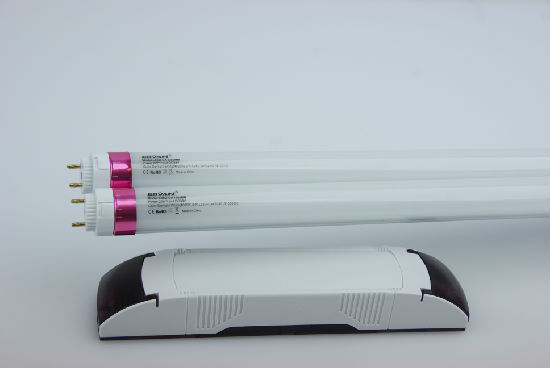

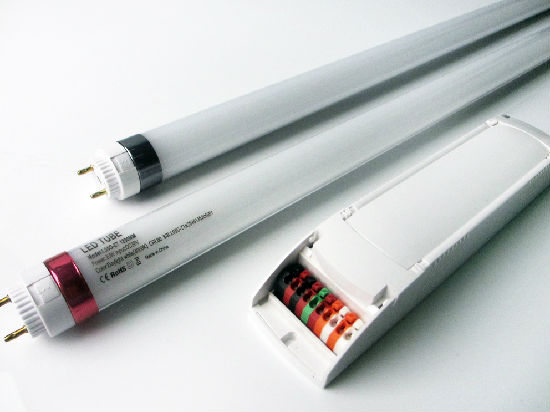

Key parameter (T8 lumen dimmable tube)

• CE, RoHS certificates
• Epistar LED chip
• Lumen changeable range 1100--3400Lm
• Power 11-30 W
• LED luminous efficiency: 105 Lm/W
• Power factor (PF) >0.93
• Power supply efficiency: >0.87
• CRI >80Ra
• Energy saving >75%
• Voltage/frequency AC100-277V/50-60Hz
• Beam angle 120 degrees
• Light-emitting surface: 230 degrees
• Color temperature warm white, pure white, day white, cool white
• Material aluminum alloy shell + PC
• Lamp-shade frosted, striped, clear
• Size Φ26 x 588--1500mm

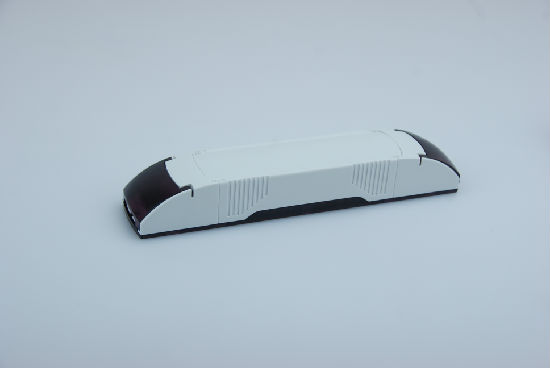

• Power supply (diver) isolated "DALI" constant current Driver
• Life time 50000 hours
• Warranty 5 years
• Working temp.-20-40°C
• Storage temp.-40° to 85°
• Working & storage humidity 10% to 85%
• IP 20

Model (R x L x weight)         power/SMD
T8/(26 x 588MM x 210g)     11W/108PCS
T8/(26 x 900MM x 293g      17W/168PCS
T8/(26 x 900MM x 300g      20W/216PCS
T8/(26 x 1198MM x 368.2g 20W/216PCS
T8/(26 x 1498MM x 443.8g 24W/240PCS
