Desktop 36W 12V 3A Power Supply with UL cUL FCC CE CB Certification
Model No.:
TPZ-1200300
Colour:
black / white
Size:
98 x 46.3 x 31.8mm
Port:
Shenzhen,China
Type of Payment:
Paypal, T/T, Western Union etc.
Minimum Order Quantity:
100pcs
Package:
Yes
Customised:
Yes
Output Voltage:
12V
Input Voltage:
100 to 240VAC
Output Power:
1 - 50W
Output Current:
3A
Output Type:
Single
Place of Origin:
Mainland China
Description
Contact Supplier
Description

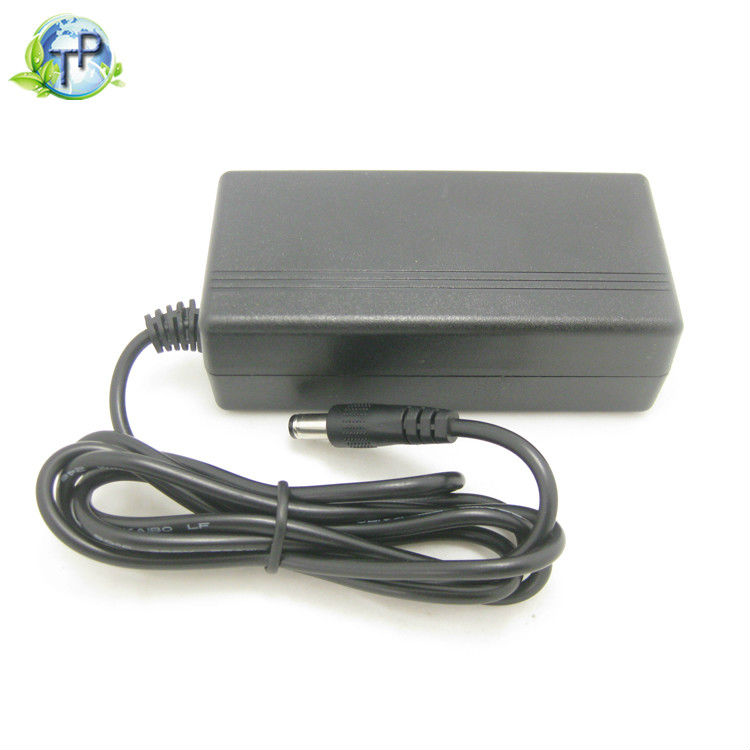

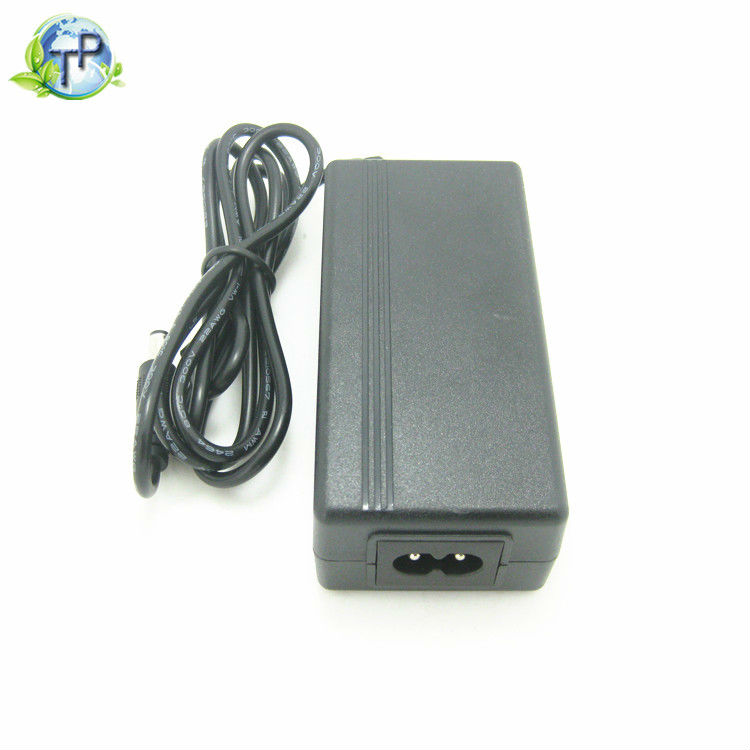

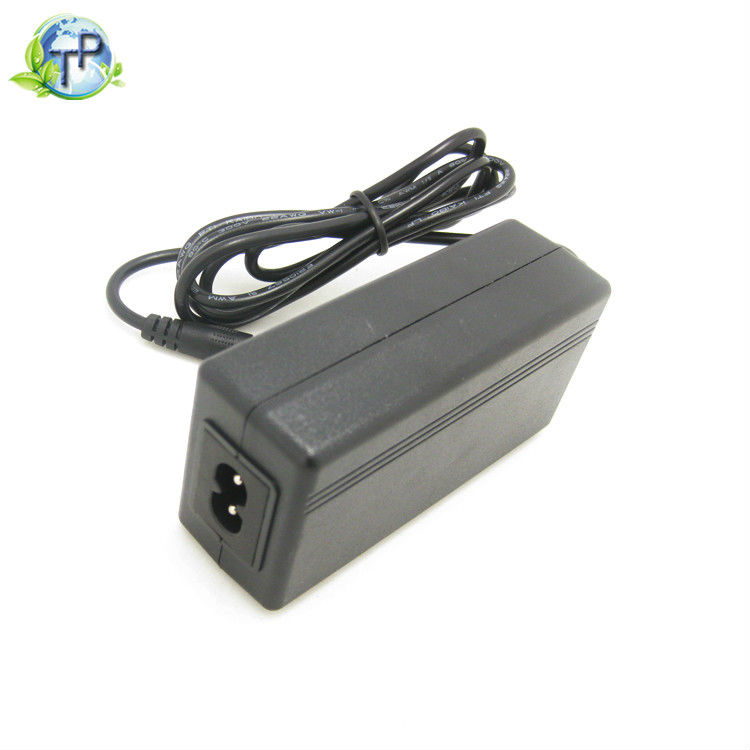

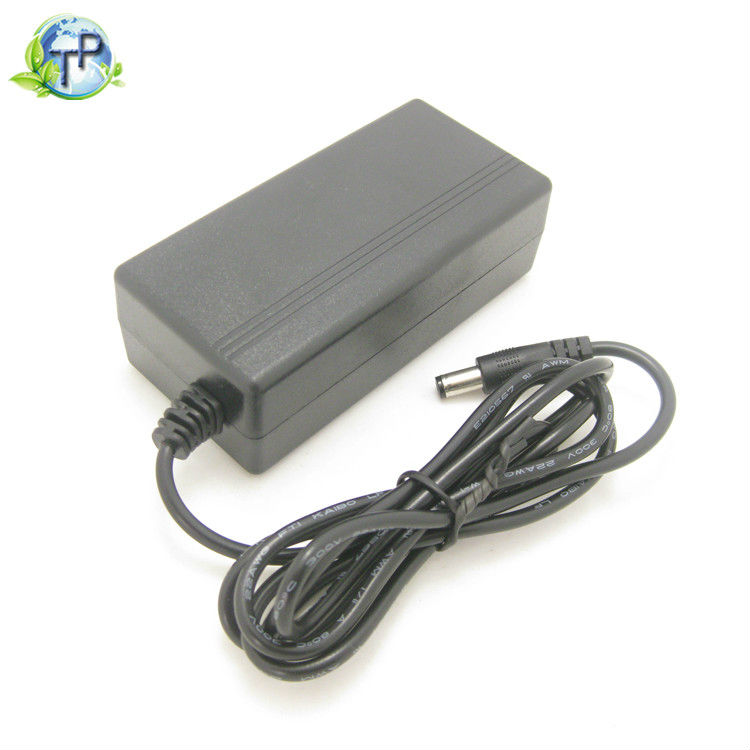

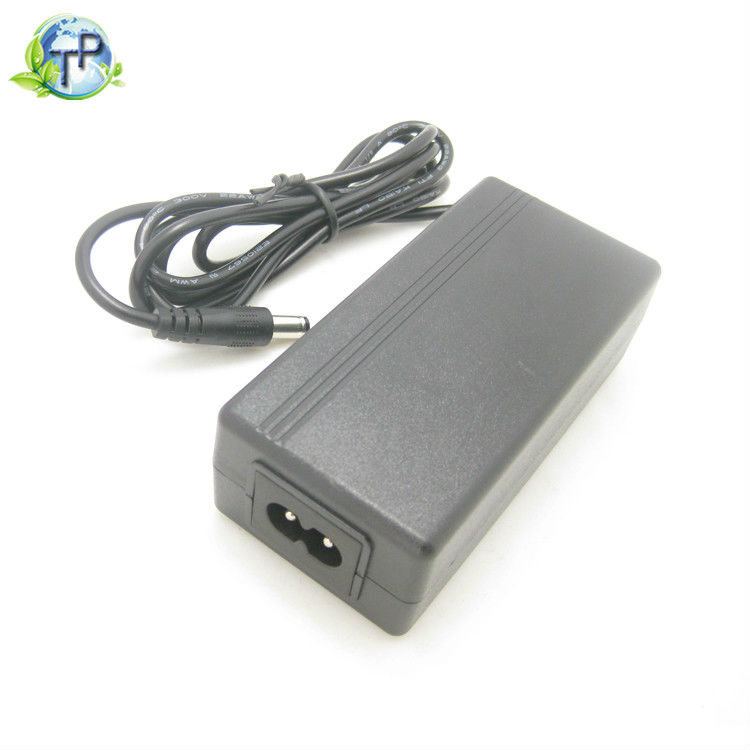

Desktop 36W 12V 3A Power Supply With UL cUL FCC CE CB Certification
Usage :
* LED strip, LED light, LED table lamp.
* Router, amplifier, CCTV camera.
* Home appliances, setup box, speaker.
* Audio & Video equipments.
* Wireless communication electronics.
* CD/DVD, MP3/MP4, Game player.
* Scanner, Networking Modem, Hub Etc.
Input Condition : 100 to 240VAC 50/60 Hz 1.2A Max
Input Rated Voltage : 100 to 240VAC
Input Voltage Range : 90 to 264VAC
Input Rated Frequency : 50/60Hz
Input Frequency Range : 47Hz to 63Hz
Input Current : 1.2A Max
Input Inrush Current : 30A Max
Input No Load Power Consumption : 0.1W Max At 115Vac/230Vac
Efficiency : 85% Min
Rated Output Power : 36W Max.
Output Voltage & Current : 12V / 3A
Output Load Regulation : ±5%
Dielectric Withstand Voltage : 3KV 3s
Leakage Current : 0.25 mA At 230Vac
Operating Temperature : 0 to 40°C
Storage Temperature : -10 to 85°C
Relative Humidity : 20 to 80%
Safety Protection :
over current protection
over voltage protection
short circuit protection
over power protection
Ripple and Noise : 120mVp-p Max
Safety Standard :
UL 60950
CSA C22.2 NO.950
TUV/VDE-EN60950Adapter
Size : 98*46.3*31.8mm (L/W/H)
AC Plug : EU,US,UK,AU etc.
DC Connector : 5.5*2.1*11mm (optional)
DC Cable : 1.2m 22AWG cable (optional)
Net Weight : 0.09kg/pcs
Gross Weight : 11.8kg/carton
Carton Box Size : 43*43*18cm
Burn-in Testing : 4 hours at full load
Warranty : 3 years
Certification : CE,UL/cUL,FCC,CB
Service : ODM/OEM Available
?The defective products rate is lower than 3‰
Usage :
* LED strip, LED light, LED table lamp.
* Router, amplifier, CCTV camera.
* Home appliances, setup box, speaker.
* Audio & Video equipments.
* Wireless communication electronics.
* CD/DVD, MP3/MP4, Game player.
* Scanner, Networking Modem, Hub Etc.
Input Condition : 100 to 240VAC 50/60 Hz 1.2A Max
Input Rated Voltage : 100 to 240VAC
Input Voltage Range : 90 to 264VAC
Input Rated Frequency : 50/60Hz
Input Frequency Range : 47Hz to 63Hz
Input Current : 1.2A Max
Input Inrush Current : 30A Max
Input No Load Power Consumption : 0.1W Max At 115Vac/230Vac
Efficiency : 85% Min
Rated Output Power : 36W Max.
Output Voltage & Current : 12V / 3A
Output Load Regulation : ±5%
Dielectric Withstand Voltage : 3KV 3s
Leakage Current : 0.25 mA At 230Vac
Operating Temperature : 0 to 40°C
Storage Temperature : -10 to 85°C
Relative Humidity : 20 to 80%
Safety Protection :
over current protection
over voltage protection
short circuit protection
over power protection
Ripple and Noise : 120mVp-p Max
Safety Standard :
UL 60950
CSA C22.2 NO.950
TUV/VDE-EN60950Adapter
Size : 98*46.3*31.8mm (L/W/H)
AC Plug : EU,US,UK,AU etc.
DC Connector : 5.5*2.1*11mm (optional)
DC Cable : 1.2m 22AWG cable (optional)
Net Weight : 0.09kg/pcs
Gross Weight : 11.8kg/carton
Carton Box Size : 43*43*18cm
Burn-in Testing : 4 hours at full load
Warranty : 3 years
Certification : CE,UL/cUL,FCC,CB
Service : ODM/OEM Available
?The defective products rate is lower than 3‰
