Desktop Switching Power Supply
Production Lead Time:
30 day(s)
Model No.:
KRE-1208000D
Brand:
KRECO
Colour:
Black
Size:
153*61*36mm
Features:
with Fuse, with Lamp
Package:
Yes
Customised:
Yes
Output Type:
DC
Connection:
Desktop
Place of Origin:
Mainland China
Description
Contact Supplier
Description

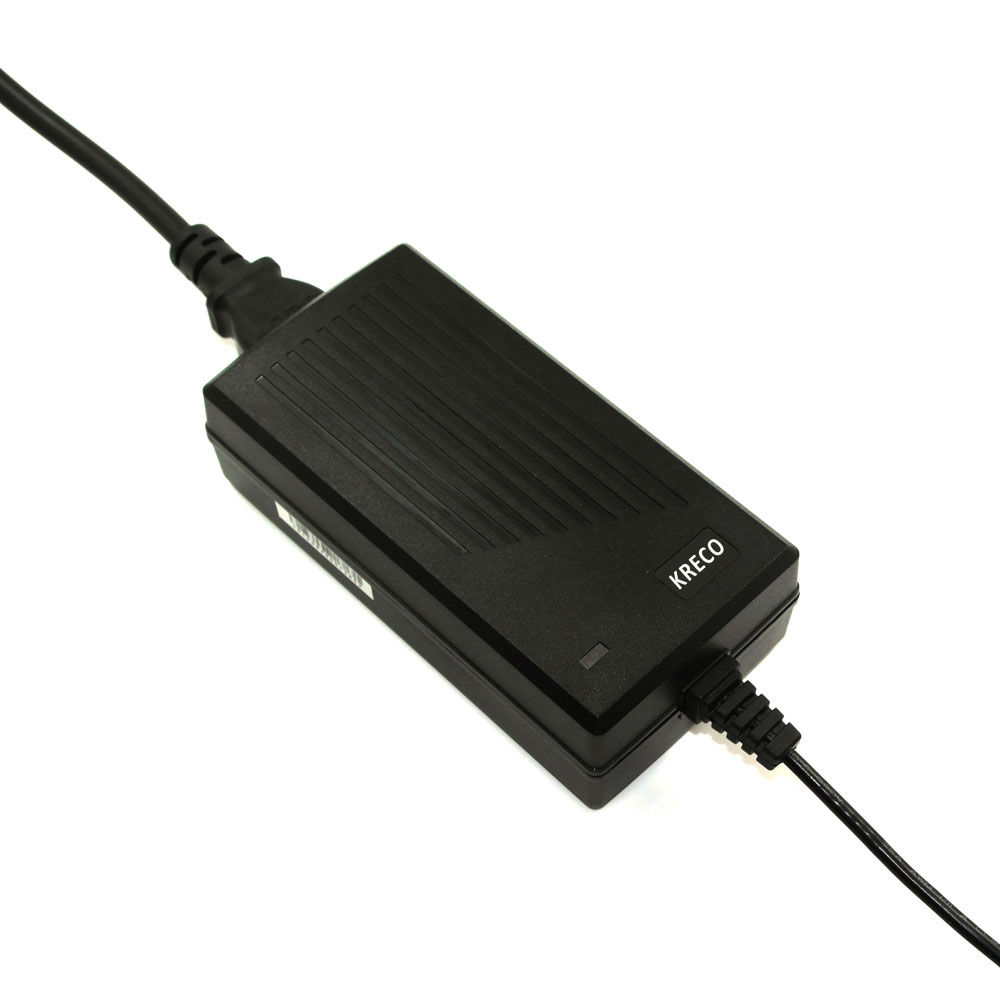

- 12V 8A 96W switching power supply, Universal input, customized design.
- C/N: KRE-SAD
- Model: KRE-1208000D
- Specifications:
- Power: 96W
- Input: AC100~240V~50/60Hz
- Output: DC12V~8.0A
- Reliability: Burn-in: 100% full-load, 40°C, 4 hours (min)
- MTBF: meet MIL-HDBK-217F over 50K hours, full load, 25°C
- Leakage current: 0.25mA maximum at 264V AC
- Withstanding voltage: (3kV 1 minute 10mA maximum, between primary and secondary)
- Features: With LED indicator
- High-efficiency: consumption, meet US energy start/CEC/AS/MEPS/EUP/ERP Light and convenient plug-in
- Customized designs are accepted
- Design time: 5 working days (maximum)
- General: 45, 65, 72 and 90W series switching power supply or switching power adapter for customers' collection Applications: printers, POS machines, consumer and electronic products
- Input: Voltage: 100 to 240V AC, 50 or 60Hz
- Current: 2.5A (maximum)
- No load input power (240V AC): 0.5W
- Inrush current (240V AC): 30A, 25°C cold
- Efficiency: 88% (minimum)
- Power cords: EU/VDC (EU), US (North America), PSE (Japan), SAA (Aust/NZ), BS (UK/HK), Brazil, South Africa, CCC (China) and EK(Korea)
- Output: DC output voltage: From 5 to 6.5V DC From 6.3 to 8.4V DC From 9 to 12V DC From 12 to 18V DC From 19 to 24V DC From 24 to 48V DC
- DC output current: From 0 to 3,000mA
- Output voltage precision: 5%
- Ripple and noise: 100mV
- Regulation: ±1% line, ±5% load
- DC output cord AWG: 18AWG, normal Wire length: 1.5m
- Emission and immunity: FCC part 15, class B EN 55022 class B AS/NZS 3548, AS/NZS 4251.1 class B EN 55024/A1:2001 IEC 61000-4-2; IEC 61000-4-3 IEC 61000-4-4; IEC 61000-4-5 IEC 61000-4-6; IEC 61000-4-11 GB 9254-1998/GB 17625.1-2003 CISPR22 class B CNS13438 class B
- Protections: Over temperature protection, Over-voltage protection, Over-current protection, Short-circuit protection, Thermal shutdown capability
