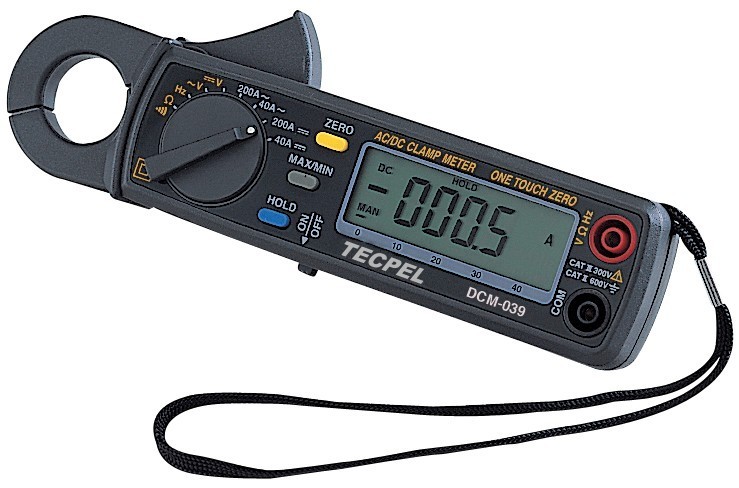

Digital Clamp Meter
Model No.:
DCM-039
Brand:
TECPEL
Colour:
Grey
Port:
Taiwan
Type of Payment:
T/T Remittance in advance
Minimum Order Quantity:
1
Description
Contact Supplier
Description
- Accurate DC/AC digital clamp meter for current measurement.
- 10mA high resolution on 40A DC/AC range.
- One touch zero for DCA adjustment.
- 23 mm diameter jaw.
- Large 3 3/4 digits LCD.
- Fast bargraph display (20 times/sec.) for transient observation.
- Continuity and frequency measurements.
- Max/min and data hold functions.
- 600V overload protection for ohm measurement.
- Easy single rotary switch for any function selection.
- Ideal for works in crowded switch box or cable areas.
- Specifications (23 +/- 5 deg C).
- DCA 0-40A 10mA +/- 1.0% +/- 2dgts.
- DCA 0-150A 100mA +/- 1.0% +/-2 dgts.
- DCA 150-200A 100mA -2.2% +/- 2dgts.
- ACA 0-40A 10mA +/- 1.0% +/- 3 dgts.
- ACA 0-150A 100mA +/- 1.0% +/- 3 dgts.
- ACA 150-200A 100mA -2.2% +/- 3dgts.
- DCV 0-400V 0.1 V +/- 1.0% +/- 2dgts.
- ACV 0-400V 0.1 V +/- 1.0% +/- 2 dgts.
- 0 Ohm-400 Ohm 0.1 Ohm +/- 1.0% +/-2dgts beep if < 40 Ohm (approx.).
- Hz 0-1000KHz 0.1-100 +/- 0.5% +/- 2dgts 1V sensitivity auto range.
- Conductor size: 23mm max. (approx.).
- Battery type: two 1.5V SUM-3.
- Display: 3 3/4 LCD with 40 seg.
- Range selection: manual.
- Overload indication: left most digit blinks.
- Power consumption: 10 mA (approx.).
- Sampling time: 2 times/sec. (display).
- 20 times/sec. (bargraph).
- Operating temperature: -10 deg C to 50 deg C.
- Operating humidity: less than 85% relative.
- Altitude: up to 2000M.
- Storage temperature: -20 to 60 deg C.
- Storage humidity: less than 75% relative.
- Dimension: 183mm (L) x 63.6mm (W) x 35.6mm (H).
- 7.2" (L) x 2.5" (W) x 1.4" (H).
- Weight: 190g (battery included).
- Accessories: carrying bag x 1.
- Users manual x 1.
- 1.5V battery x 2.
- Certificate: UL, CE.
