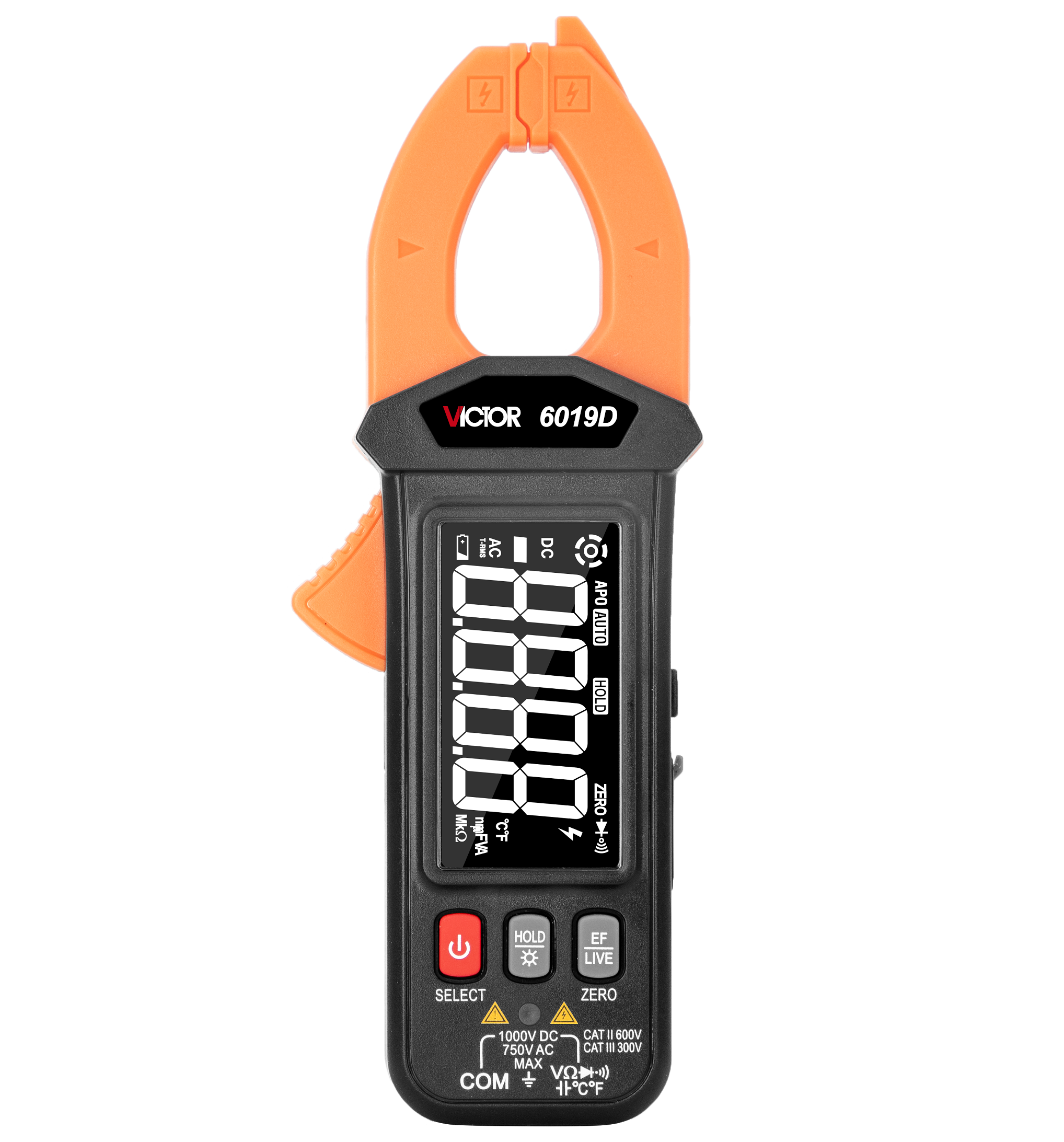

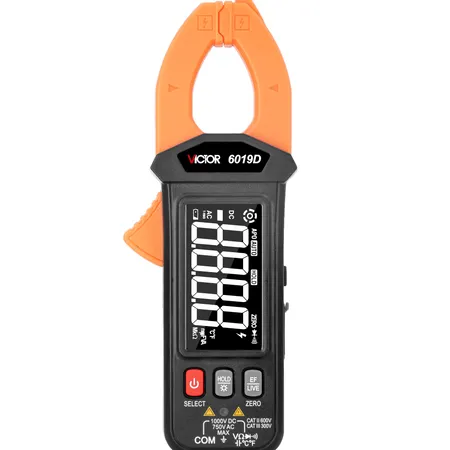

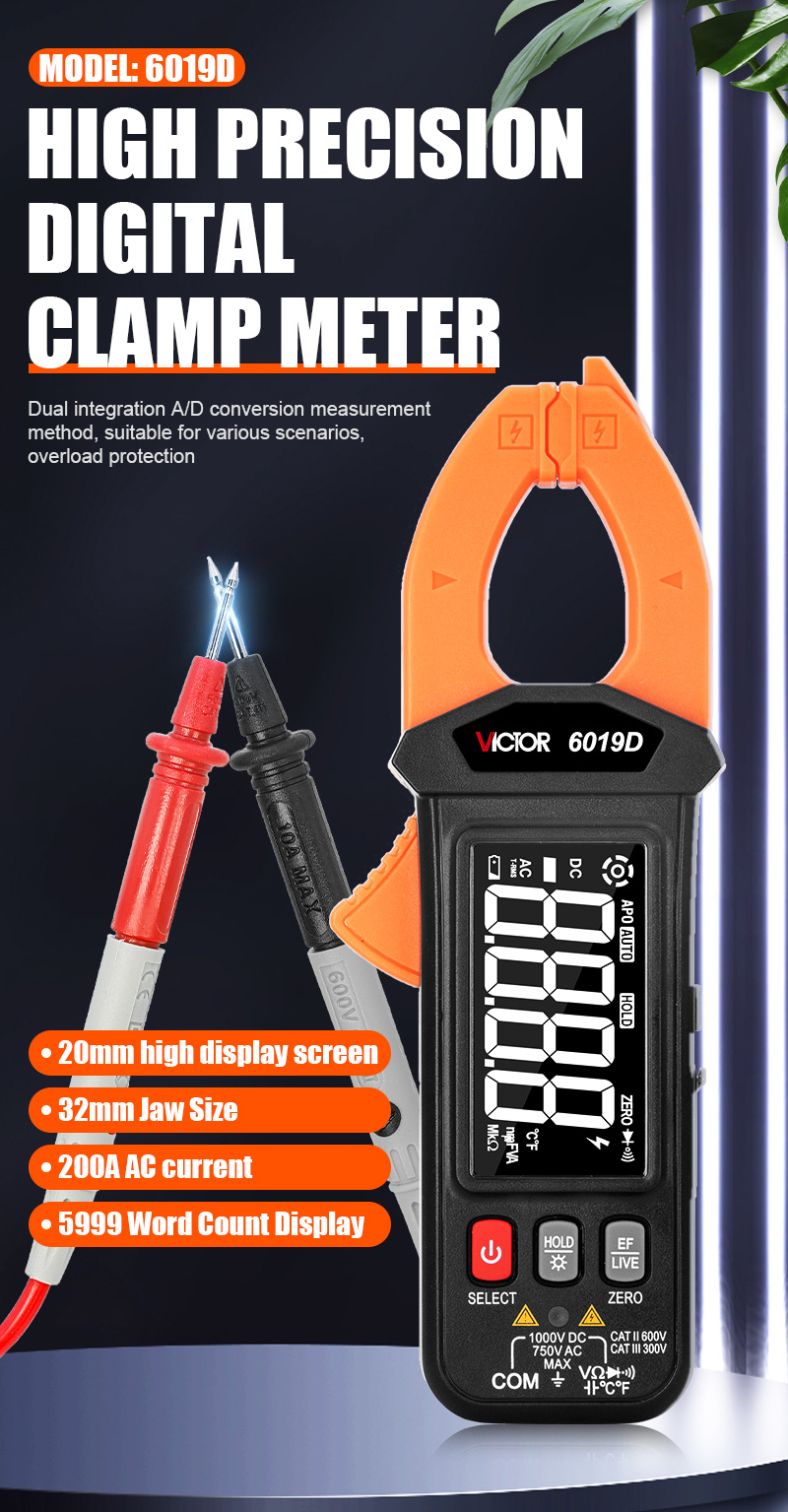

VICTOR 6019D 5999 words display HIGH PRECISION Digital Clamp Meter with Dual integration A/D conversion measurement method

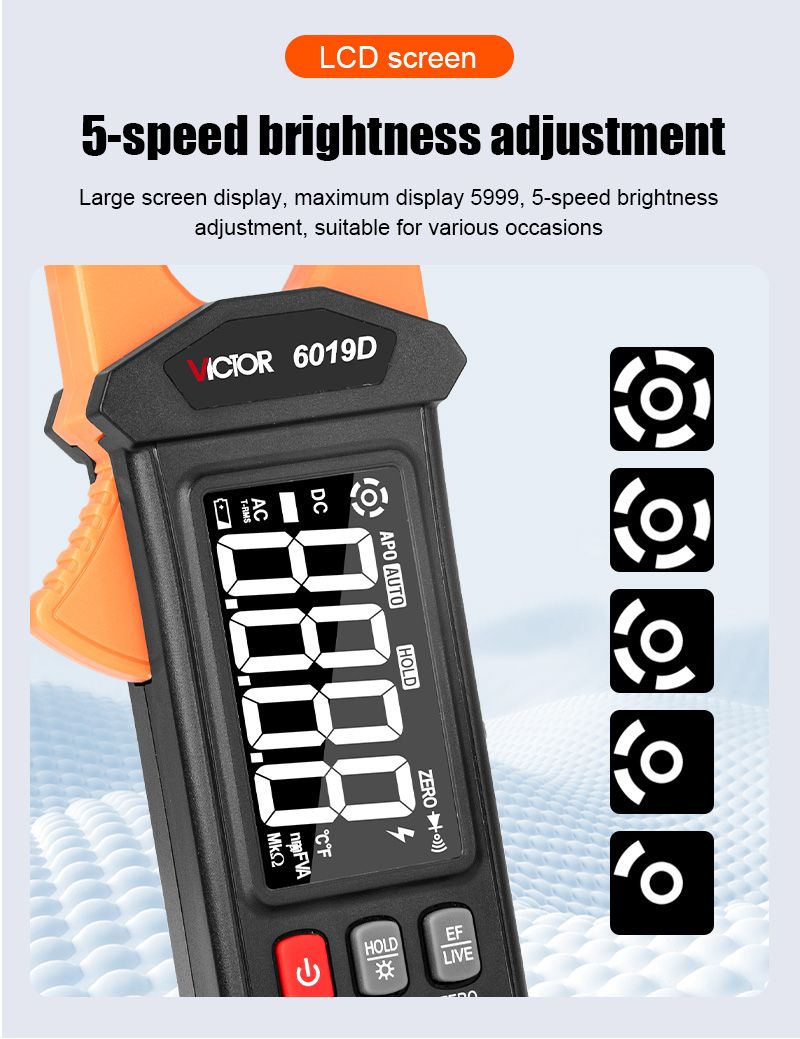

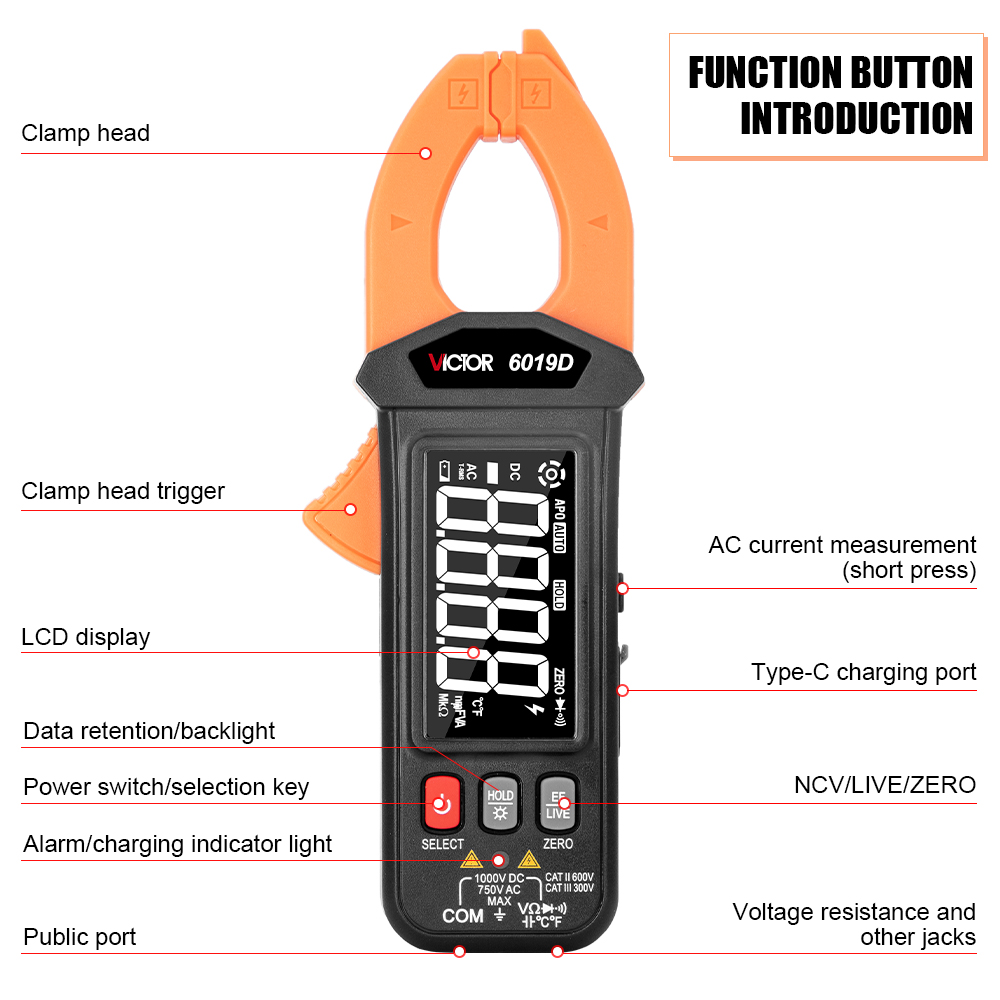

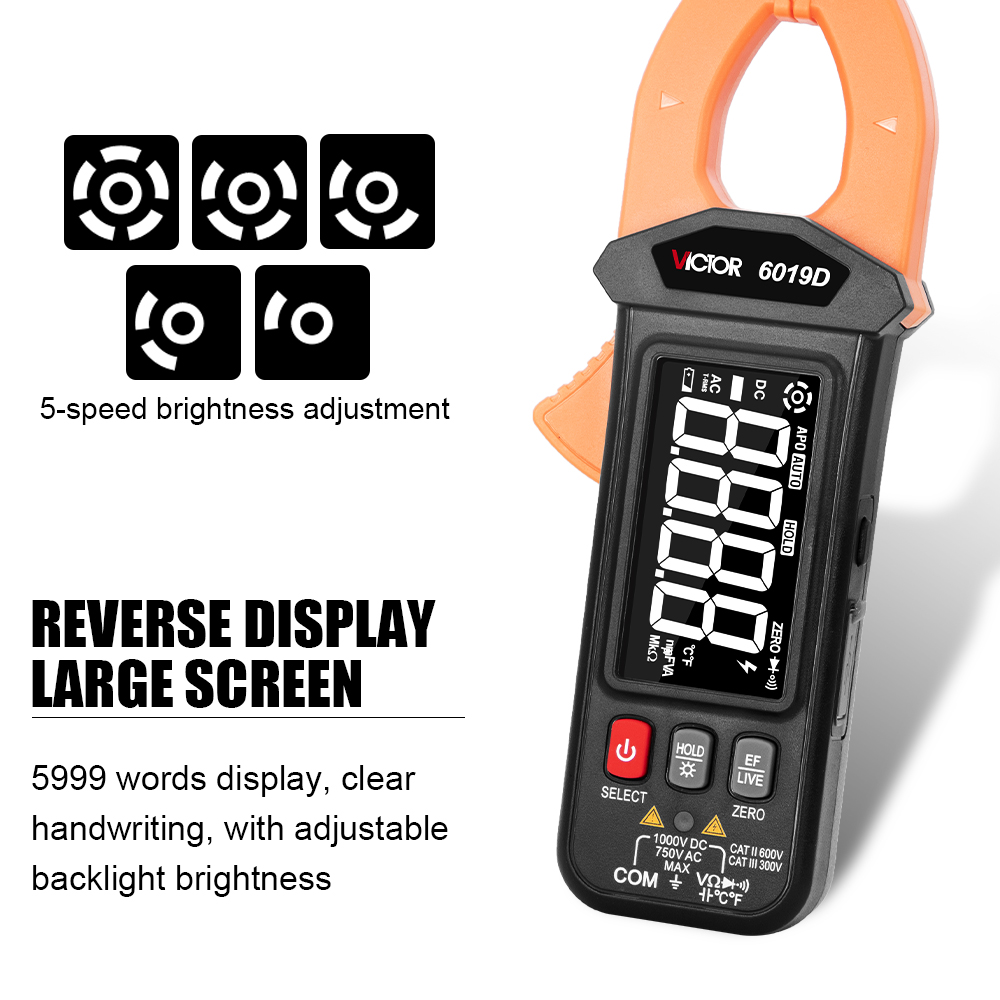

This instrument is a digital intelligent clamp meter with built-in lithium battery power supply, TYPE-C charging interface, and can automatically recognize measurement or manually switch functions. It is easy and convenient to operate. The instrument adopts 20mm word height LCD display, and the LCD brightness can be graded and adjusted to adapt to external environmental changes.

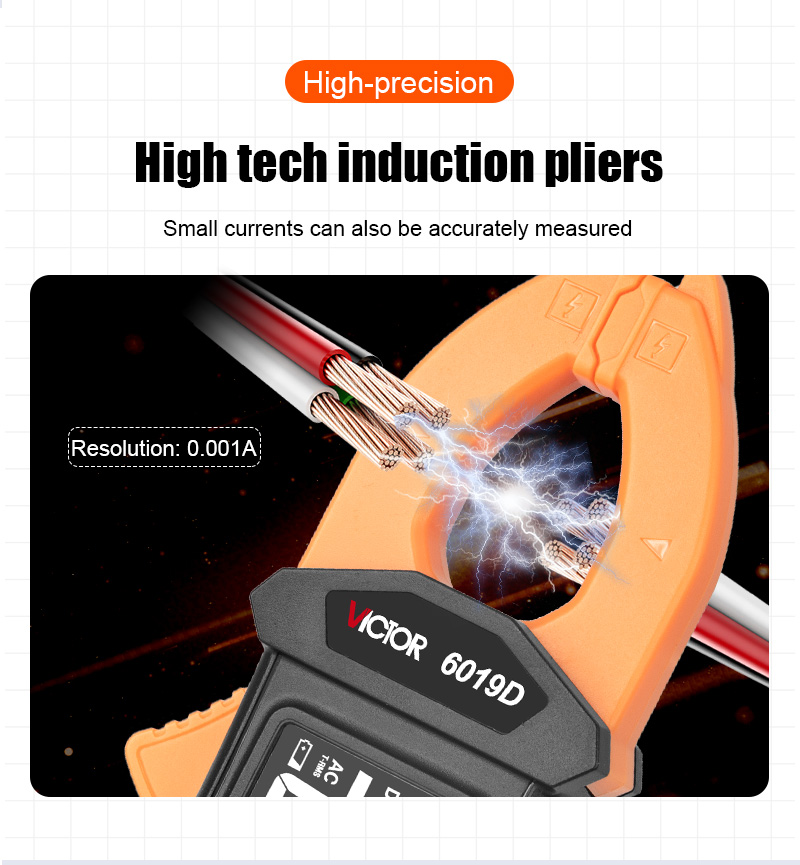

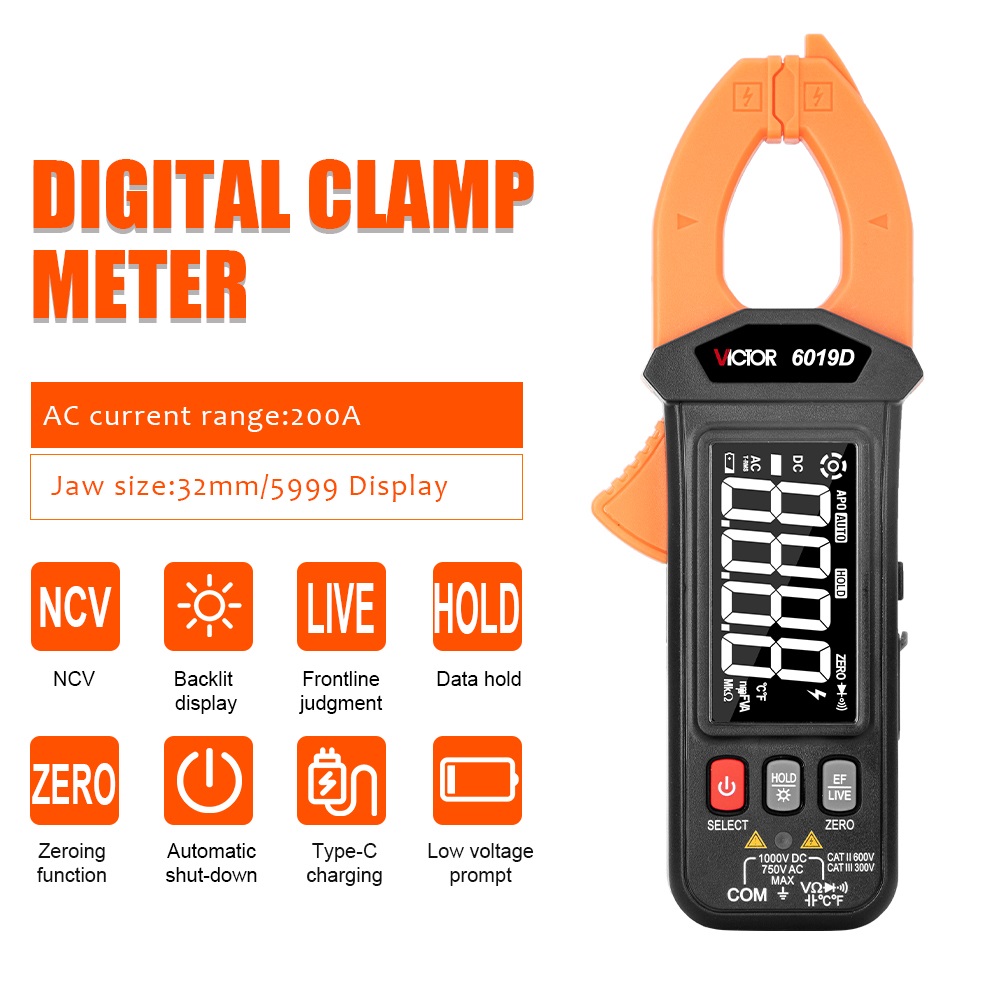

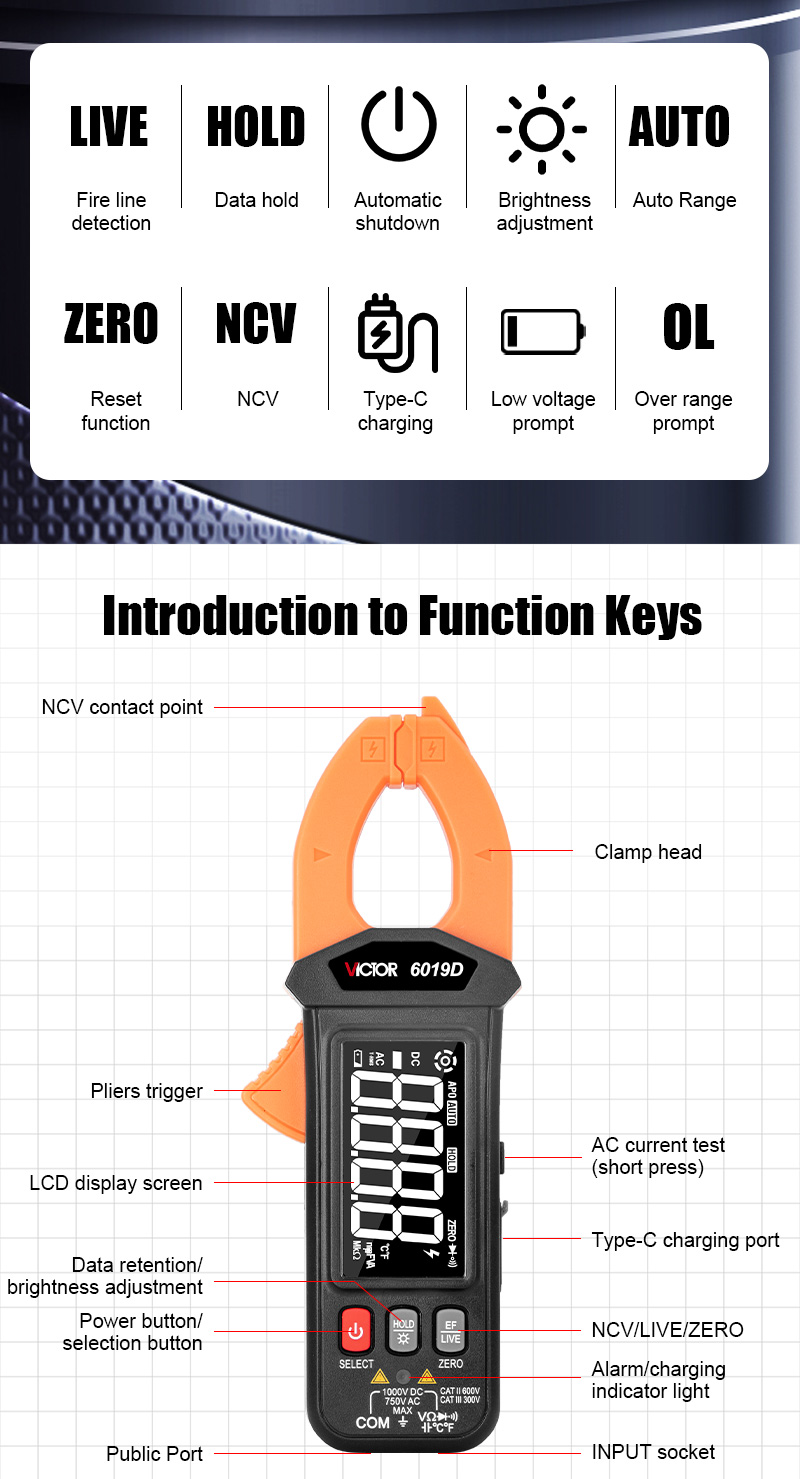

This instrument can measure the true effective value of DC voltage and AC voltage, DC current and AC current (clamp), resistance, capacitance, Celsius, Fahrenheit, diode, continuity and other functional parameters, and has data hold and NCV/LIVE (live wire judgment) functions.

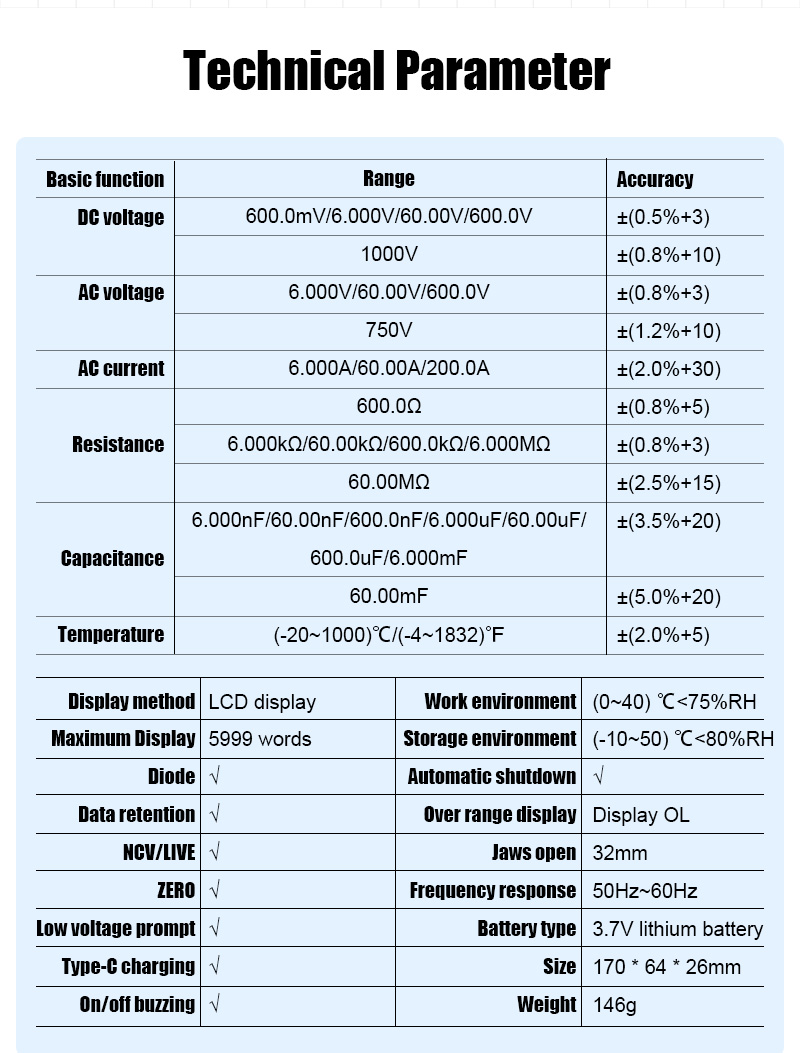

1.Display mode : LCD display;

2. Maximum display: 5999 (3 5/6 bits) automatic polarity display;

3. Measurement method: double integral A/D conversion;

4. Sampling rate: about 3 times per second;

5. Over range display: the highest bit display "OL";

6. Low voltage display: "" symbol appears;

7. Operating temperature:0℃ ~ 40℃, <75%RH;

8. Storage temperature :-10℃ ~ 50℃, <80%RH;

9. Battery type: 3.7V lithium battery;

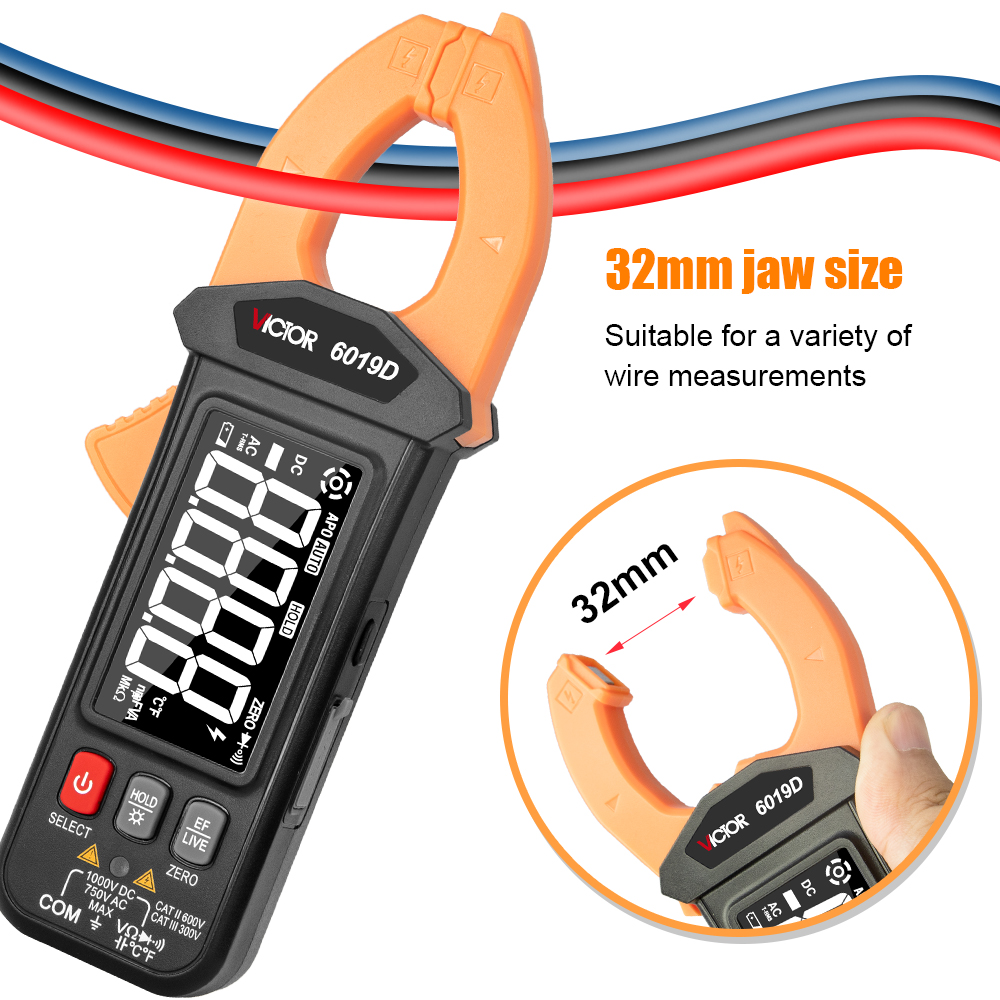

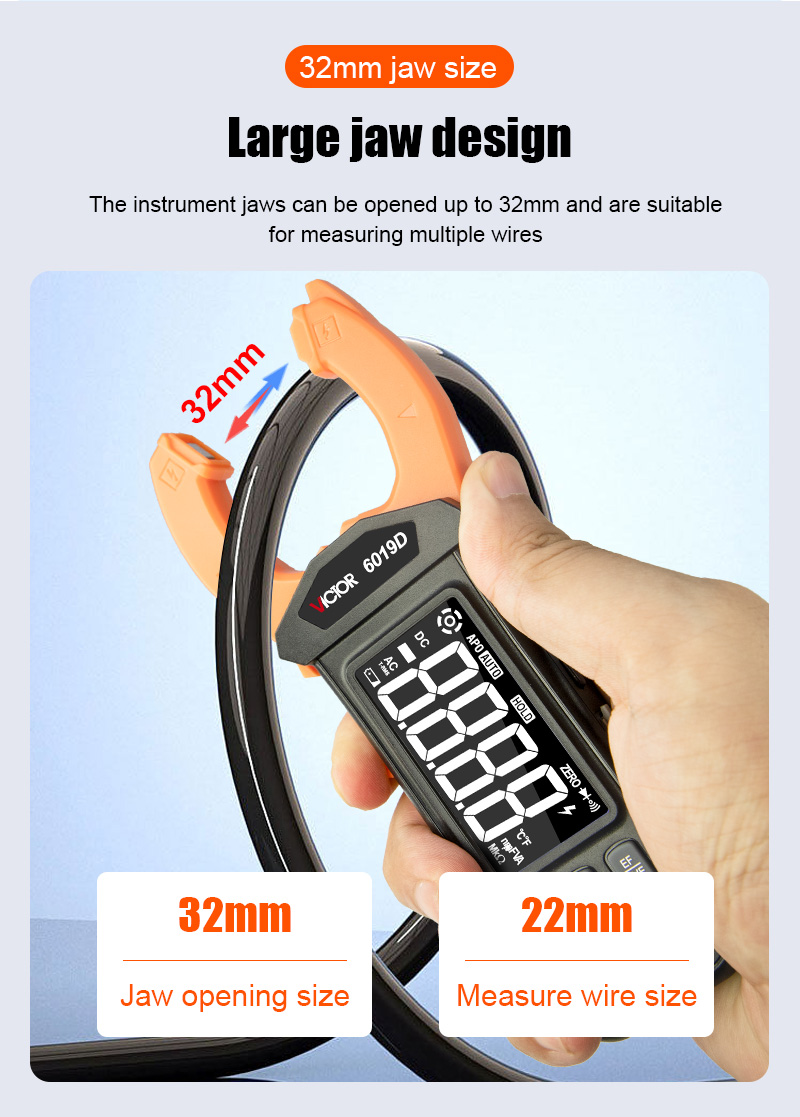

10. Maximum opening size of clamp head: diameter 32mm

11. Maximum measured current wire: diameter 22mm

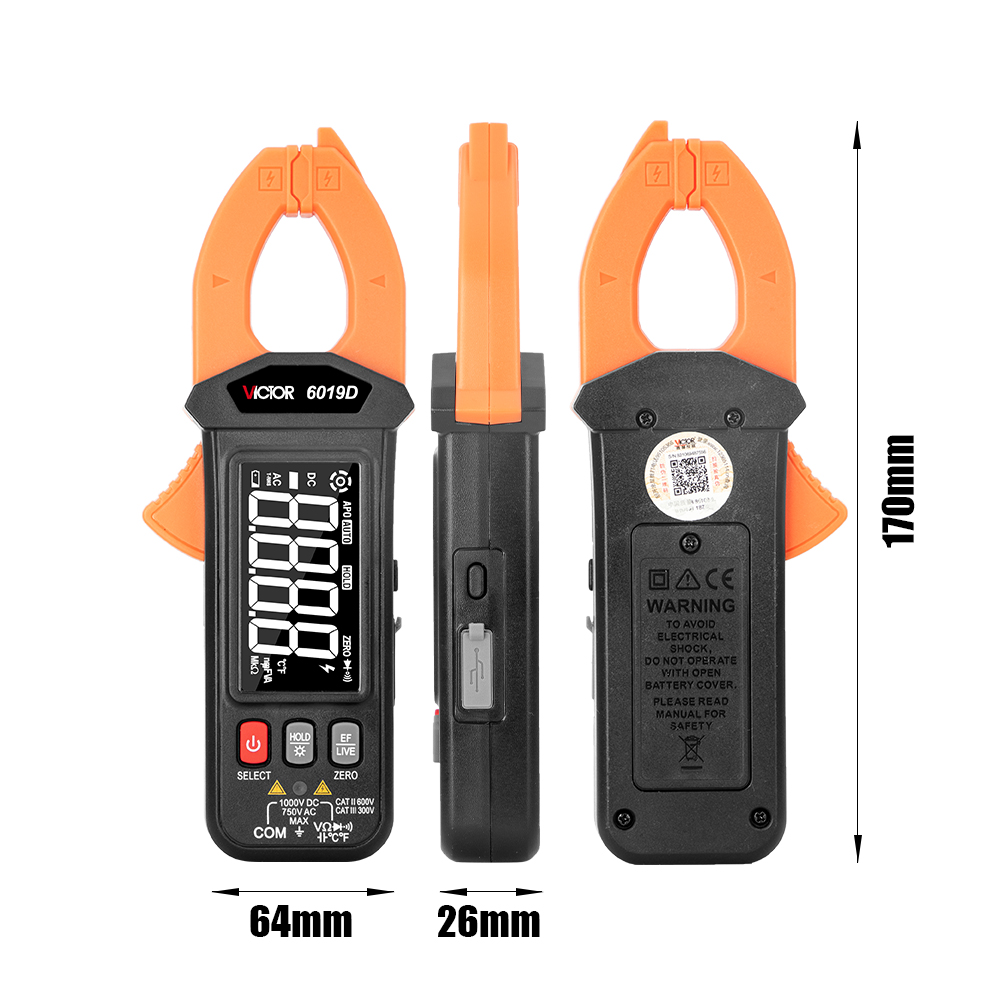

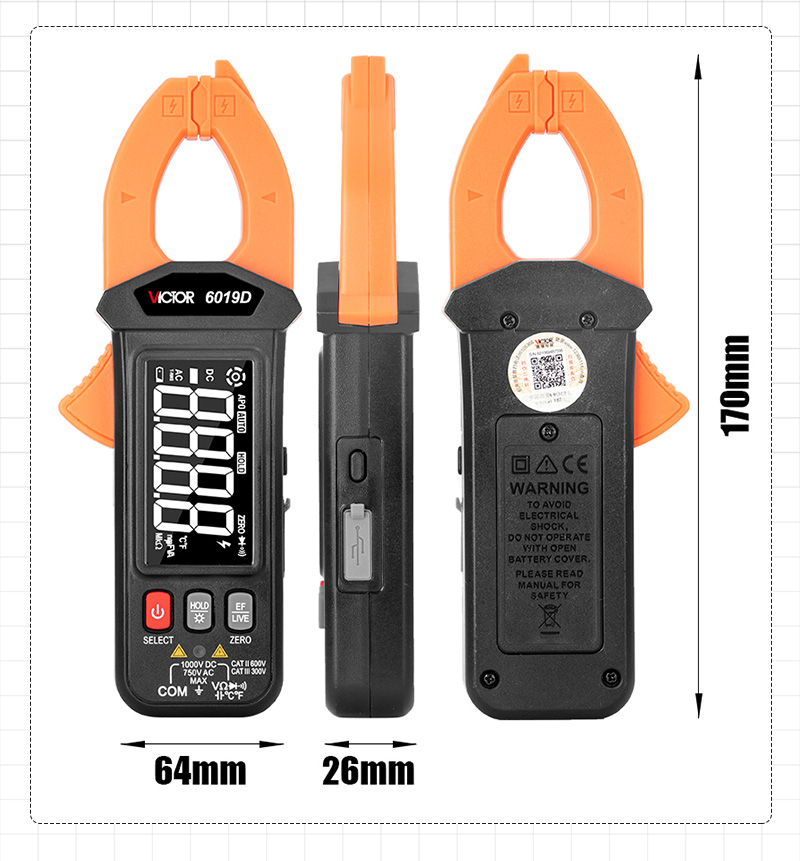

12. Size: 170×64×26 mm

13. Weight: approx.146g (including batteries)
